Half Door Weatherstrip: Removal

NOTE: The weatherstrip is attached to the door with push-in fasteners.
  1. Remove trim panel. Refer to TRIM PANEL .
  2. Remove window retaining sleeve.
  3. Remove the push-in fasteners attaching the weatherstrip to the door. See Fig 1.

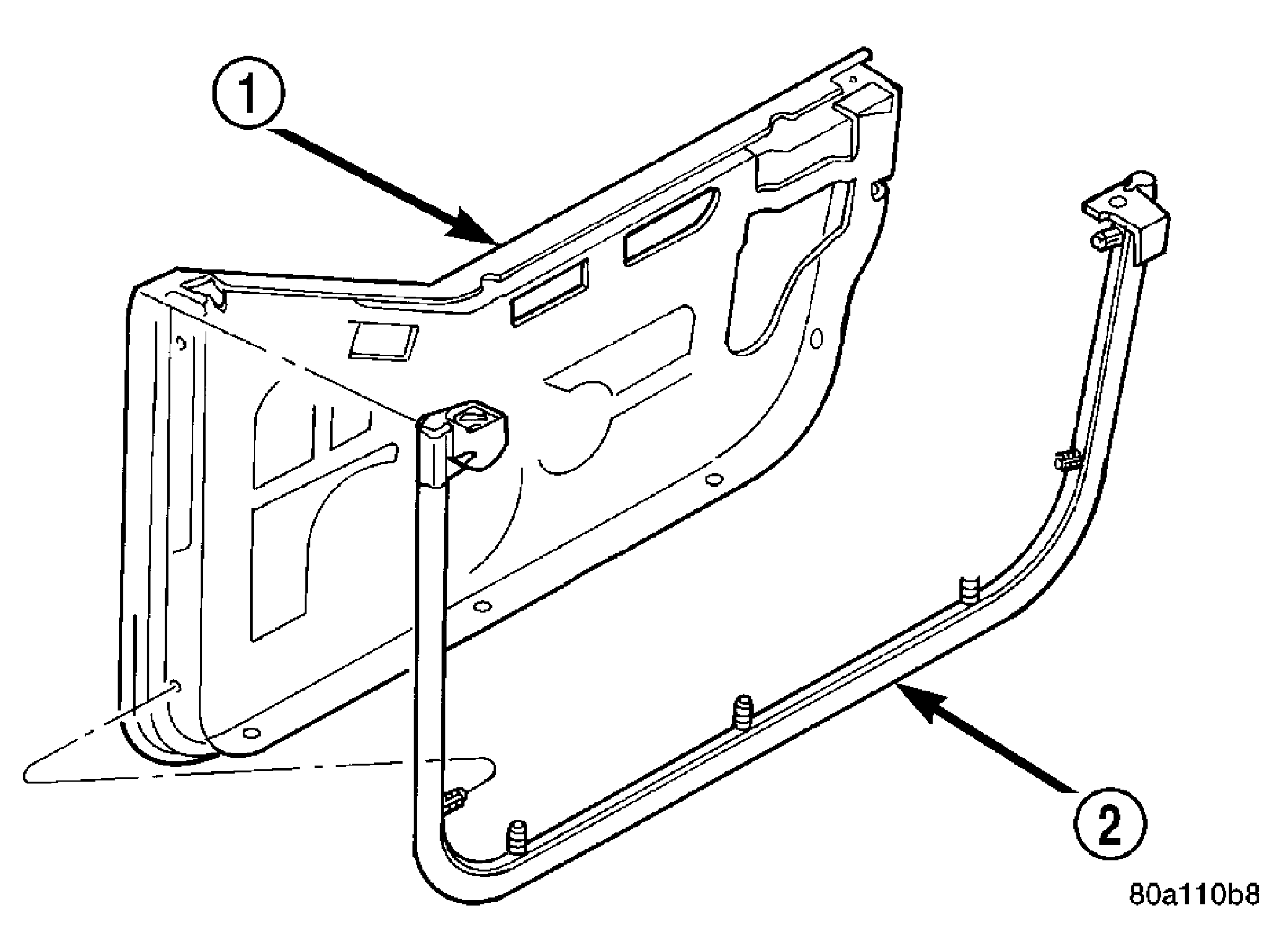

Fig 1: Half Door Weatherstrip
GC0030682Courtesy of DAIMLERCHRYSLER CORP.
1 - HALF DOOR
2 - WEATHERSTRIP
