Front Strikers

  1. Remove the seat. (Refer to BODY/SEATS/REAR SEAT - REMOVAL) .
  2. Remove the bolts and remove the striker. See Fig 1.

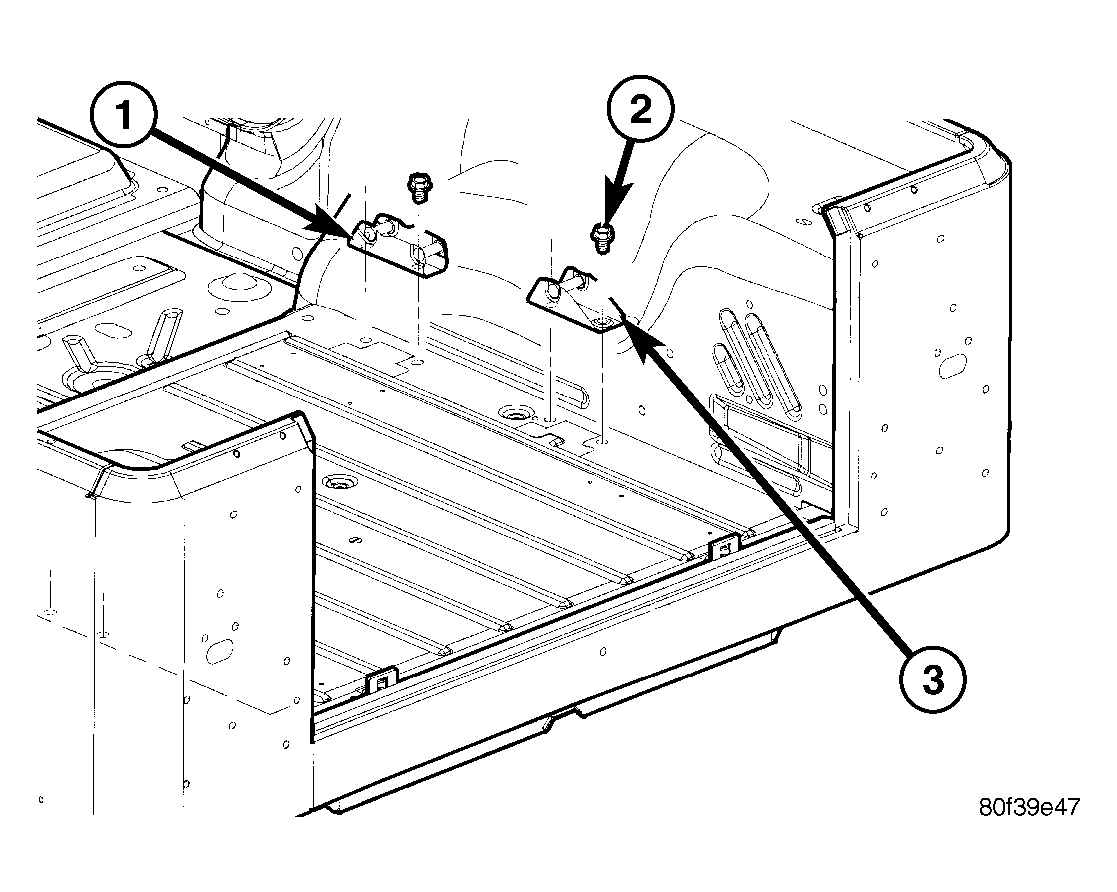

Fig 1: Rear Seat Strikers
GC0030672Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT STRIKER
2 - BOLTS (2 PER STRIKER)
3 - REAR STRIKER
