Front Carpet: Removal

If necessary, remove the center console. (Refer to BODY/INTERIOR/CENTER CONSOLE - REMOVAL) .
Remove the retainers attaching the carpet to the dash panel. See Fig 1.
Disengage the snaps under front seats.
Remove carpet from the vehicle

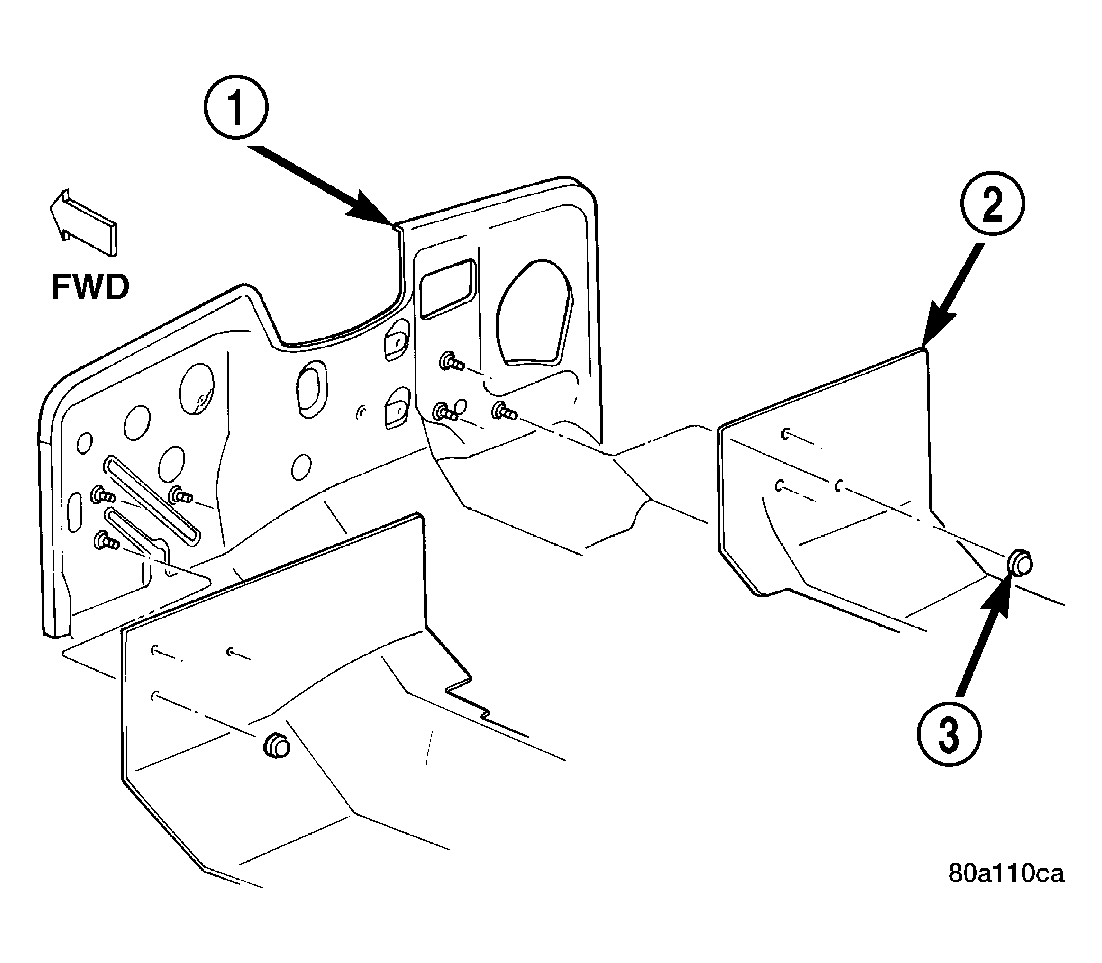

Fig 1: Front Carpet

Courtesy of DAIMLERCHRYSLER CORP.

1 - DASH PANEL

2 - CARPET

3 - PUSH ON RETAINER
