Cargo Area Carpet: Removal

  1. Position the rear seat in the fold and tumbled position.
  2. Pull the carpet from under the rear seat.
  3. Remove the Add-A-Trunk, if equipped. (Refer to BODY/INTERIOR/ADD-A-TRUNK - REMOVAL) .
  4. Route the rear seat belt buckles through the cargo area carpet.

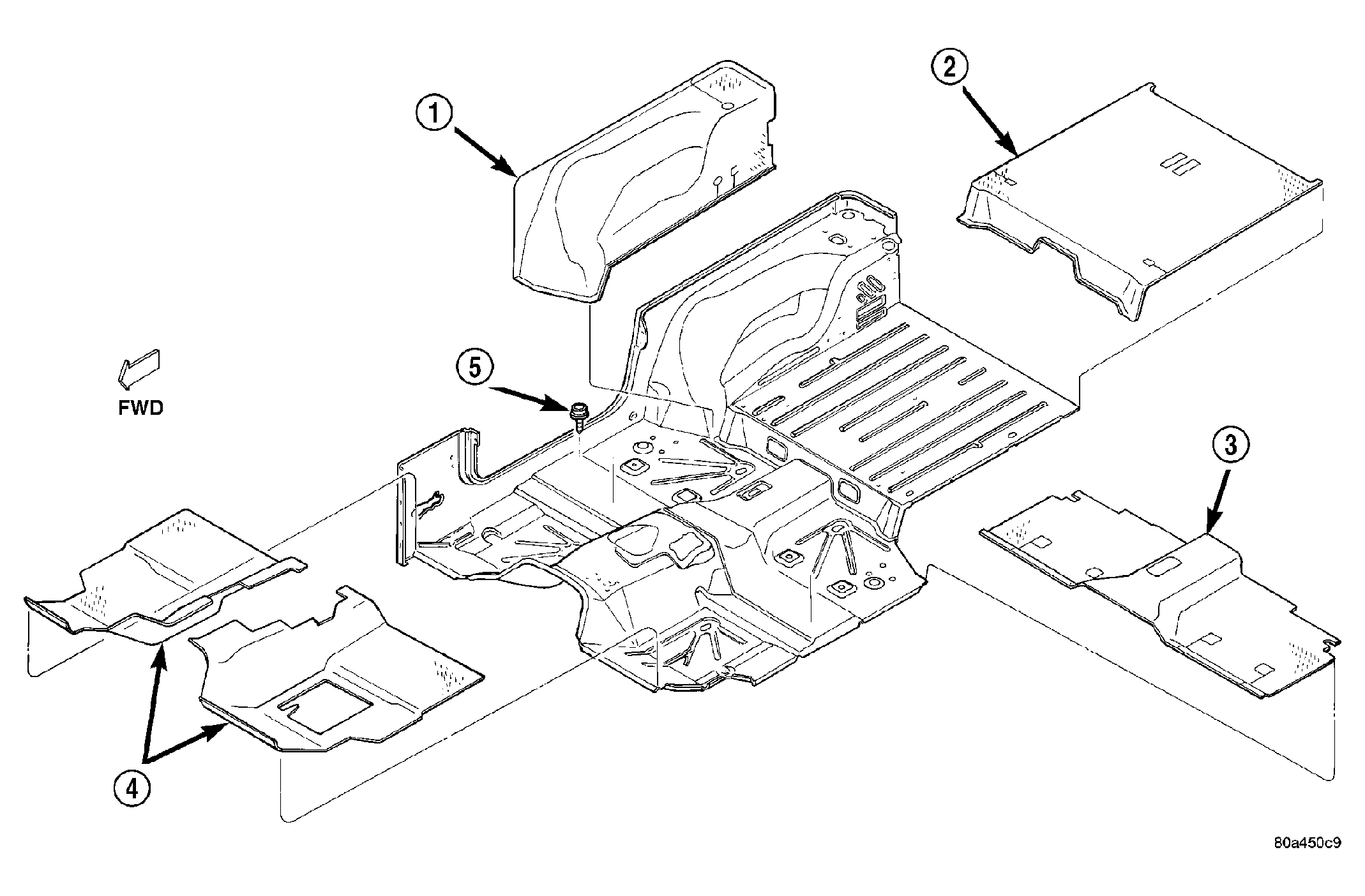

  5. Separate the carpet from the vehicle. See Figure.
