Hood Safety Latch: Removal

  1. Raise and support the hood.
  2. Remove the bolt attaching the safety latch to the hood. See Fig 1.
  3. Remove the latch from the hood.

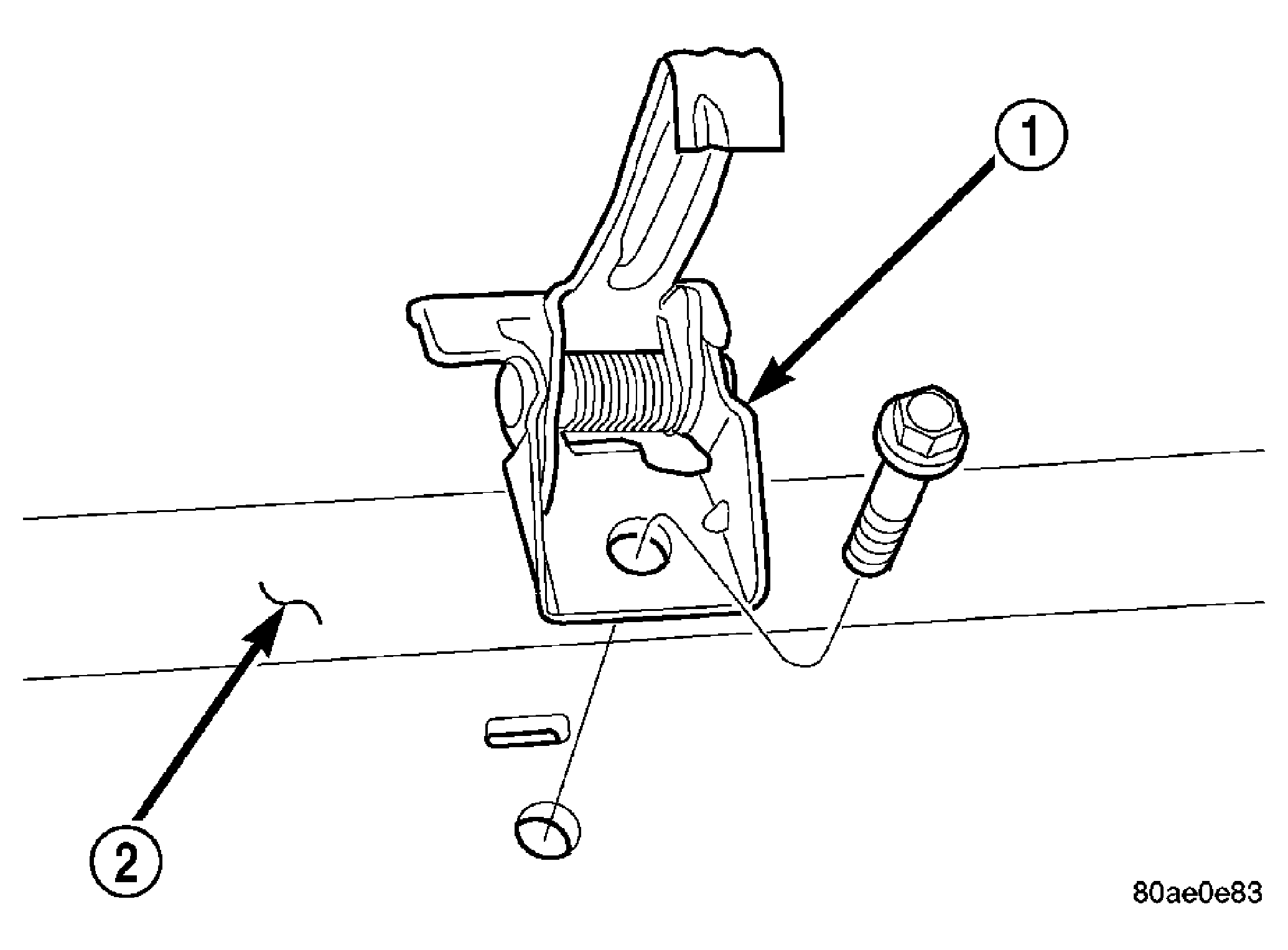

Fig 1: Hood Safety Latch
GC0030607Courtesy of DAIMLERCHRYSLER CORP.
1 - SAFETY LATCH
2 - HOOD
