Wheel Opening Flare Molding: Removal

Remove the side marker lamp. (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/MARKER LAMP UNIT - REMOVAL) .
Remove the screws that attach the flare to the front fender or rear wheelhouse. See Fig 1.
Separate the flare from the body.

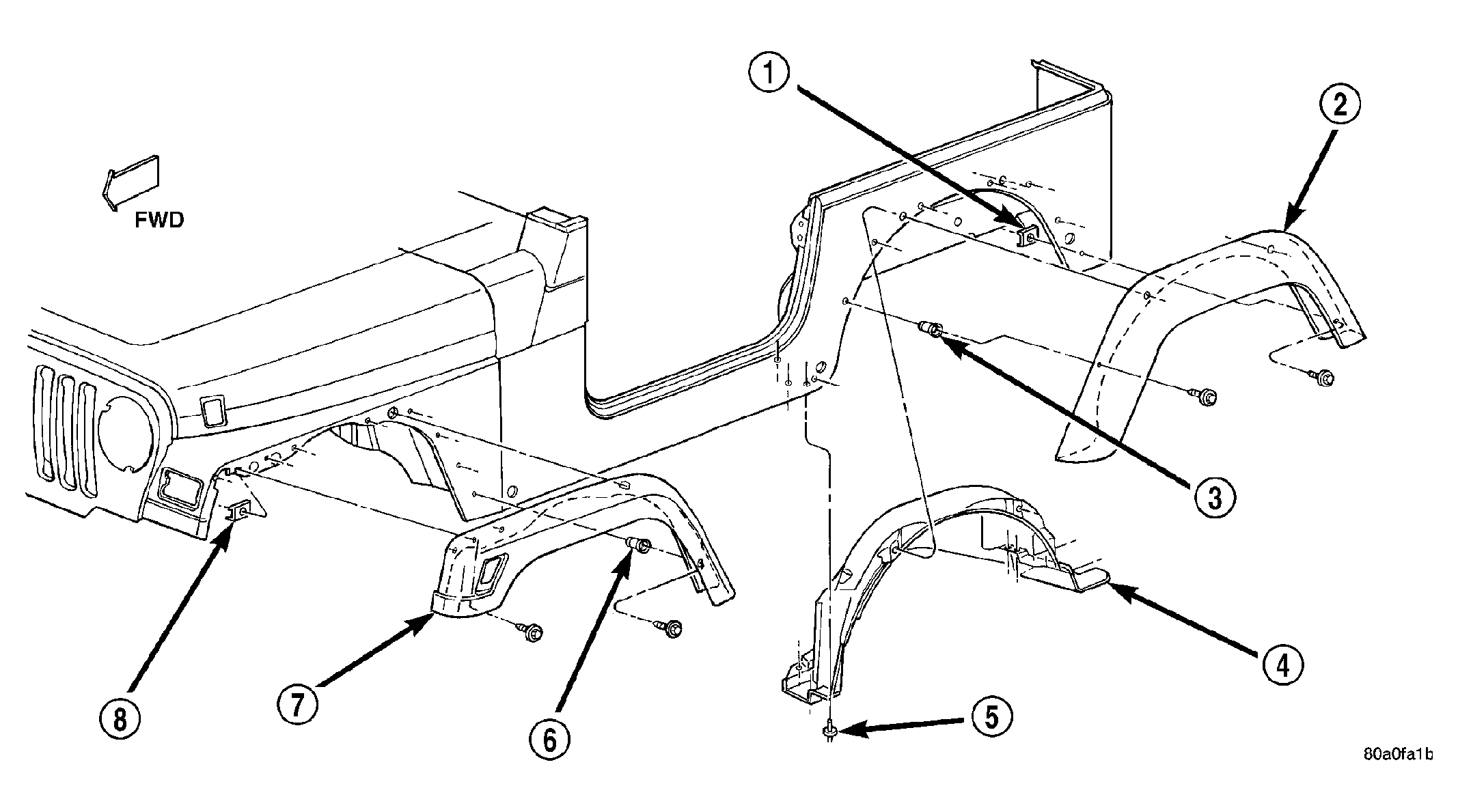

Fig 1: Fender Flares

Courtesy of DAIMLERCHRYSLER CORP.

1 - U-NUT

2 - FENDER FLARE

3 - NUTSERT

4 - SPLASH SHIELD

5 - RIVET

6 - NUTSERT

7 - FENDER FLARE

8 - U-NUT
