Steering Wheel: Removal

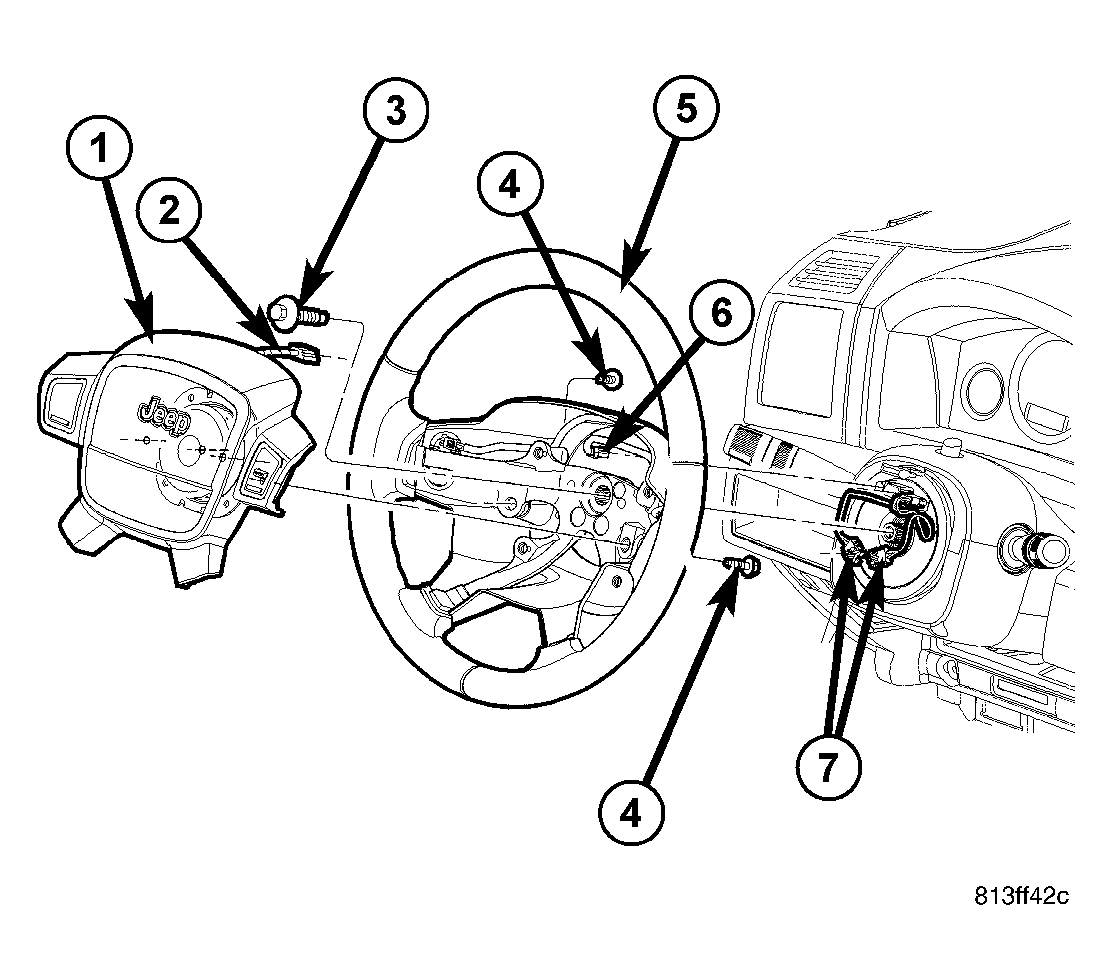

Fig 1: Remove/Install Steering Wheel & Airbag
GC0027279Courtesy of DAIMLERCHRYSLER CORP.
  1. Disable and remove the drivers side airbag (1). (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL) .
  2. Disconnect all the electrical connectors (2,6&7).
    Fig 2: Steering Wheel Removal
    GC0027280Courtesy of DAIMLERCHRYSLER CORP.
  3. Partially remove the steering wheel bolt and leave the bolt in the column.
  4. Install puller (2) or equivalent using the top of the bolt to push on.
    NOTE: Ensure the bolts are threaded firmly into the steering wheel.
  5. Remove the steering wheel.
