Sunroof - Service Information: Deflector-Wind: Removal

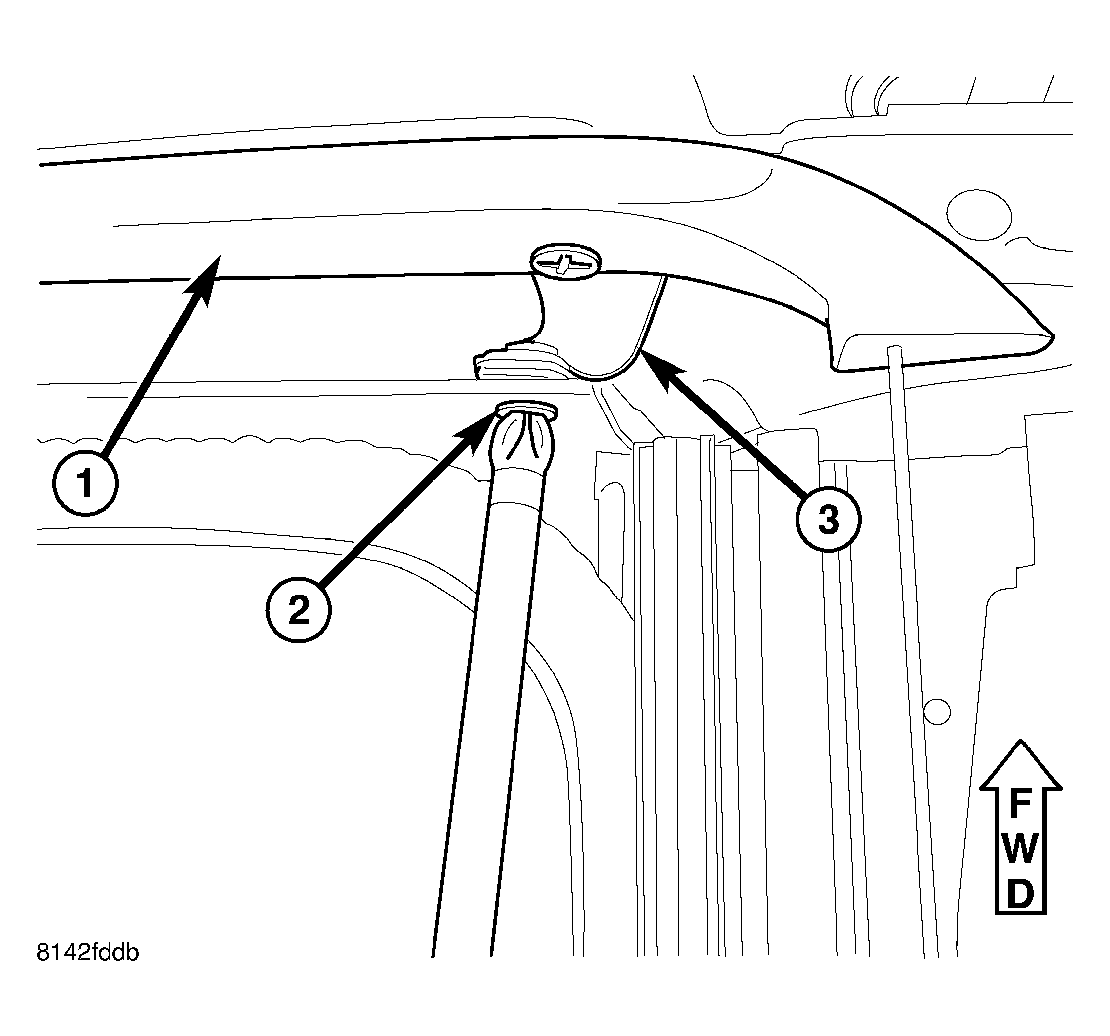

Fig 1: Removing/Installing Deflector Strap

Courtesy of DAIMLERCHRYSLER CORP.

1. Open the sunroof fully.
2. Remove the strap screws (2) from the beam area release the strap (3).

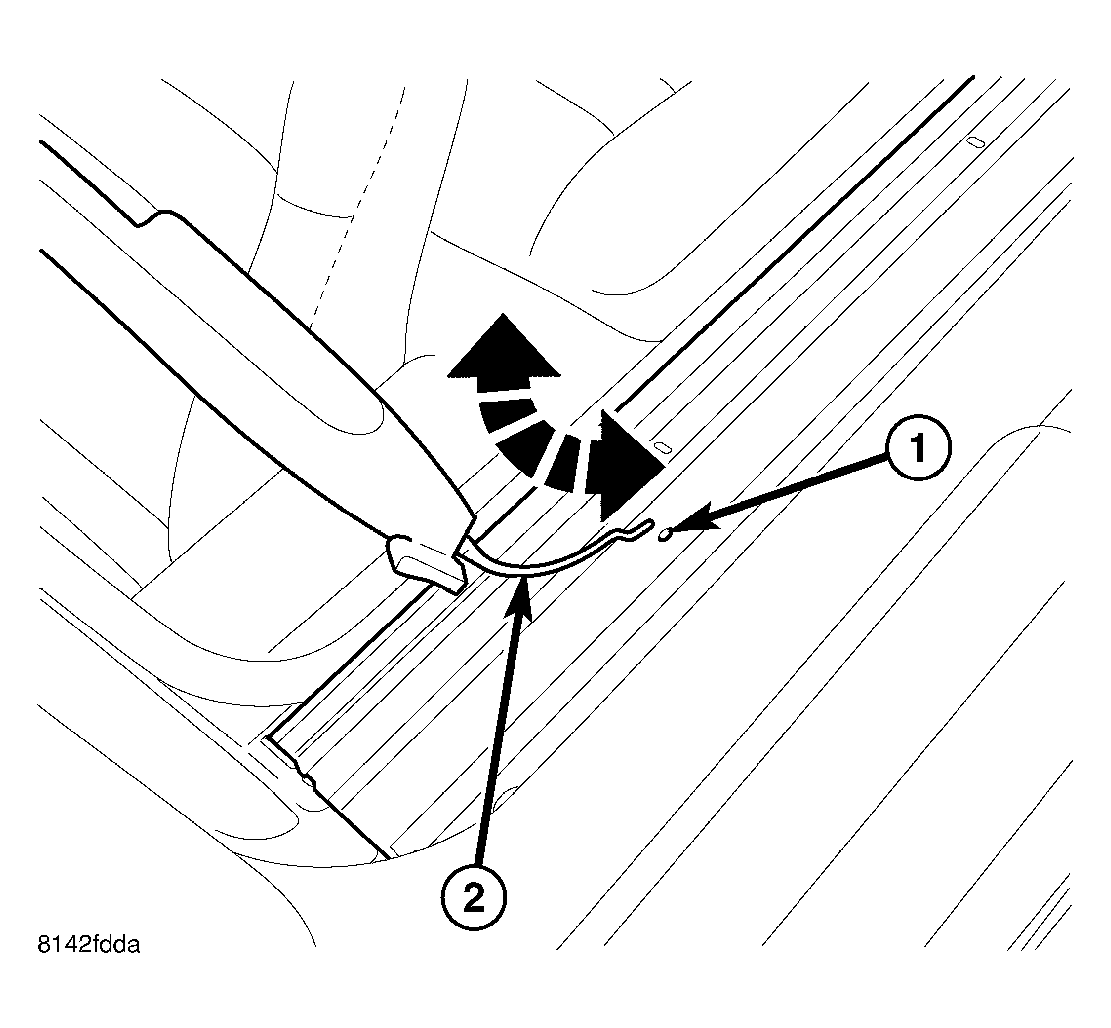

   Fig 2: Removing/Installing Wind Deflector

   Courtesy of DAIMLERCHRYSLER CORP.
3. Rotate the deflector up and remove springs (2) from the holes in the frame (1).
