Body - Interior & Exterior: Liftgate: Panel-Trim: Removal

Fig 1: Remove/Install Liftgate Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect and isolate the battery negative cable.
2. Remove the five screws (3).
3. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the trim panel away from the inside of the liftgate to release the push-pin plastic fasteners that secure the panel (1) to the liftgate (2).

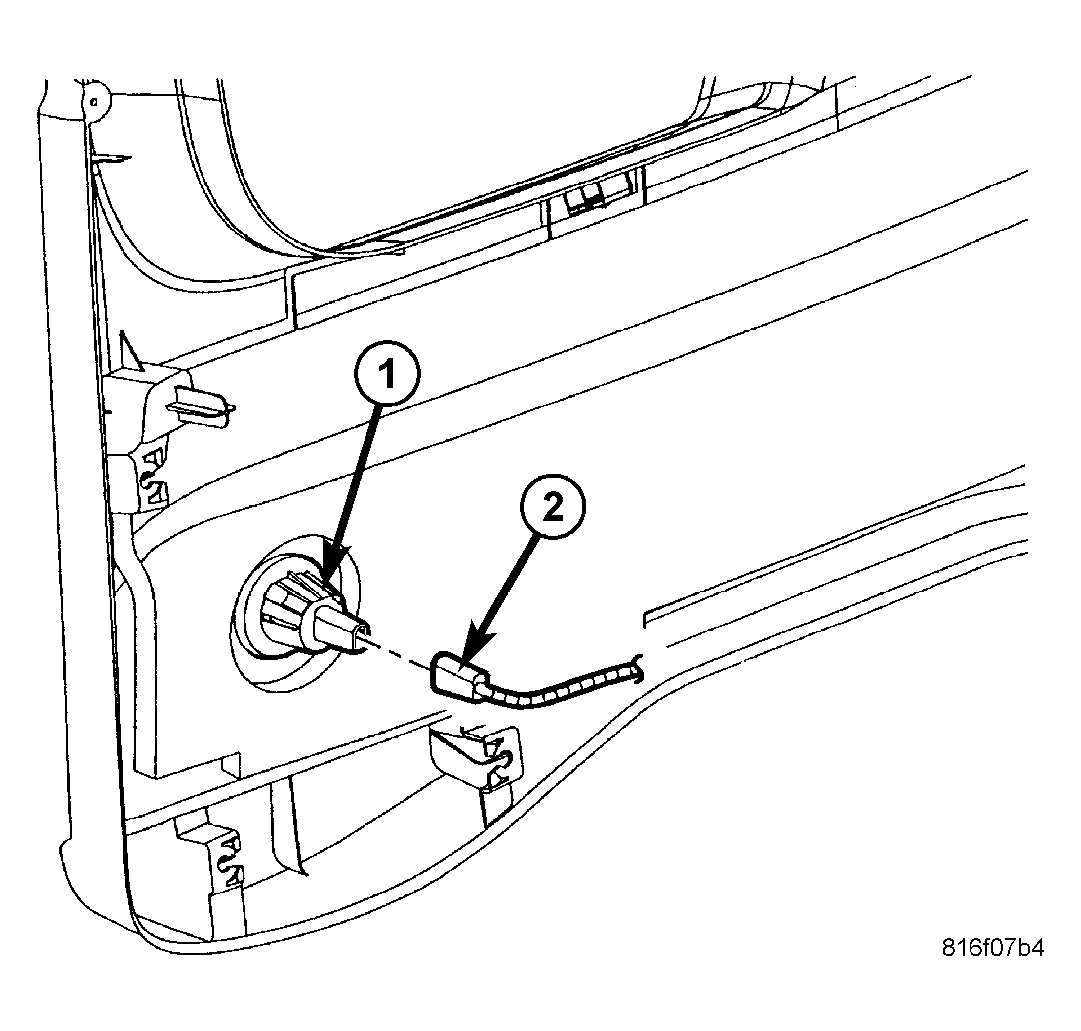

   Fig 2: Disconnect/Connect Electrical Connection

   Courtesy of DAIMLERCHRYSLER CORP.
4. Disconnect the lamp from the lower liftgate trim panel.
5. Remove the liftgate lower trim panel from the vehicle.
