Mirror-Inside Rear View: Removal

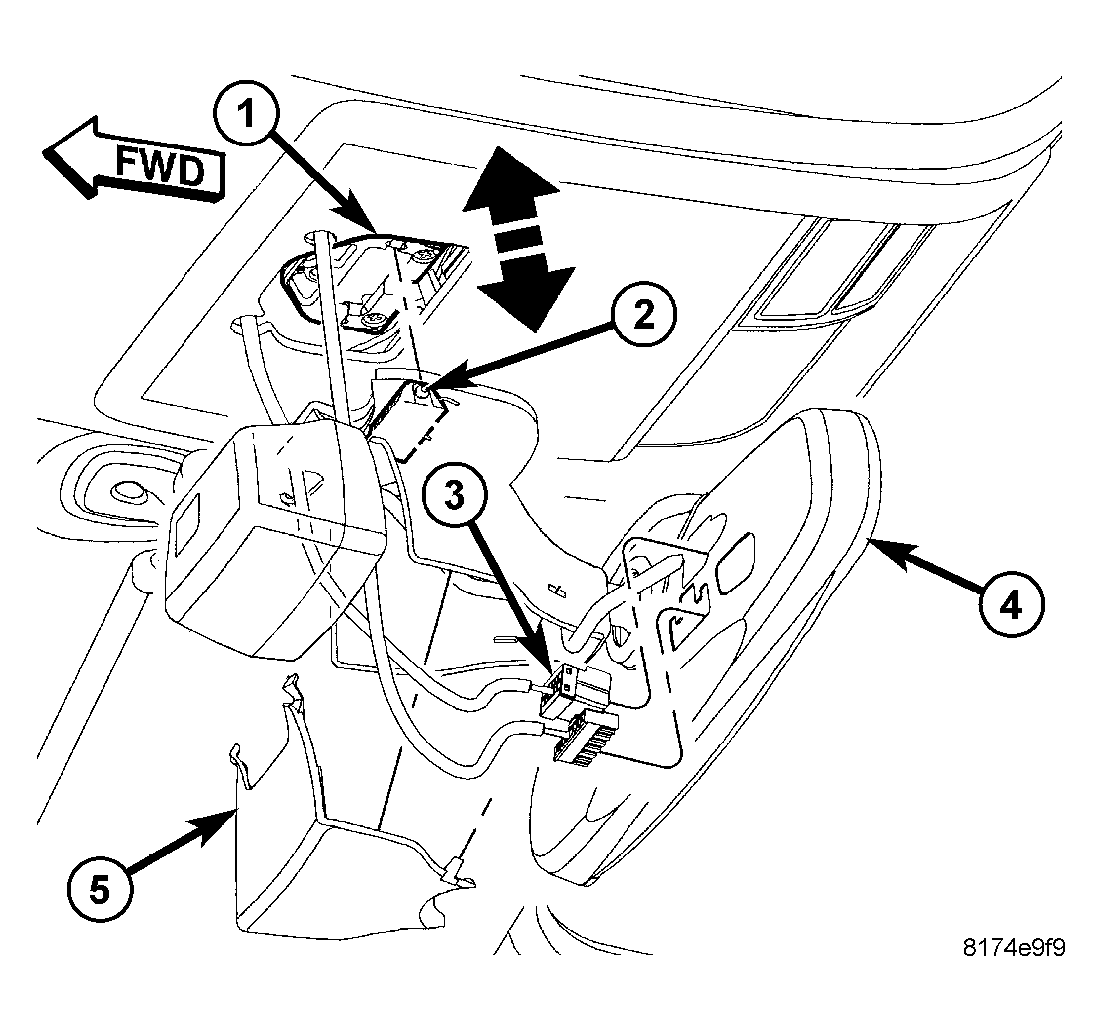

Fig 1: Remove/Install Rear View Mirror
GC0044976Courtesy of DAIMLERCHRYSLER CORP.
  1. Using a trim stick C-4755 or equivalent, remove the trim cover (5).
  2. Disconnect the electrical connectors (3).
  3. Grasp the mirror assembly (4) securely and pull down to release the support pins (2) from the support bracket (1).
