Panel-Cowl Top: Removal

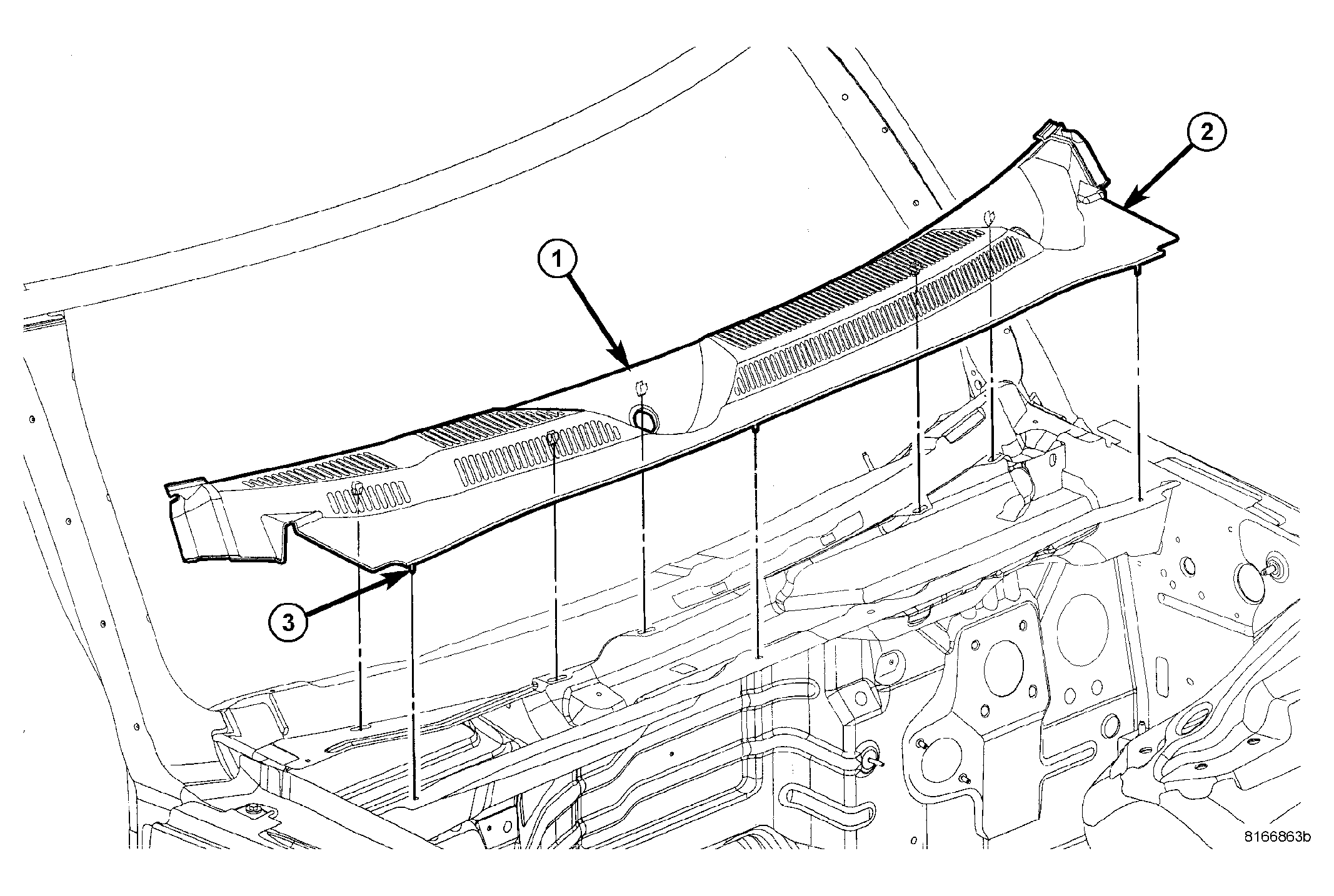

Fig 1: Remove/Install Cowl Panel
GC0044932Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the wiper arms. (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL)
  2. Remove the rear hood seal.
  3. Separate the rear clips (3).
  4. Remove cowl cover (2) from cowl.
