Mirror-Outside Rearview: Removal

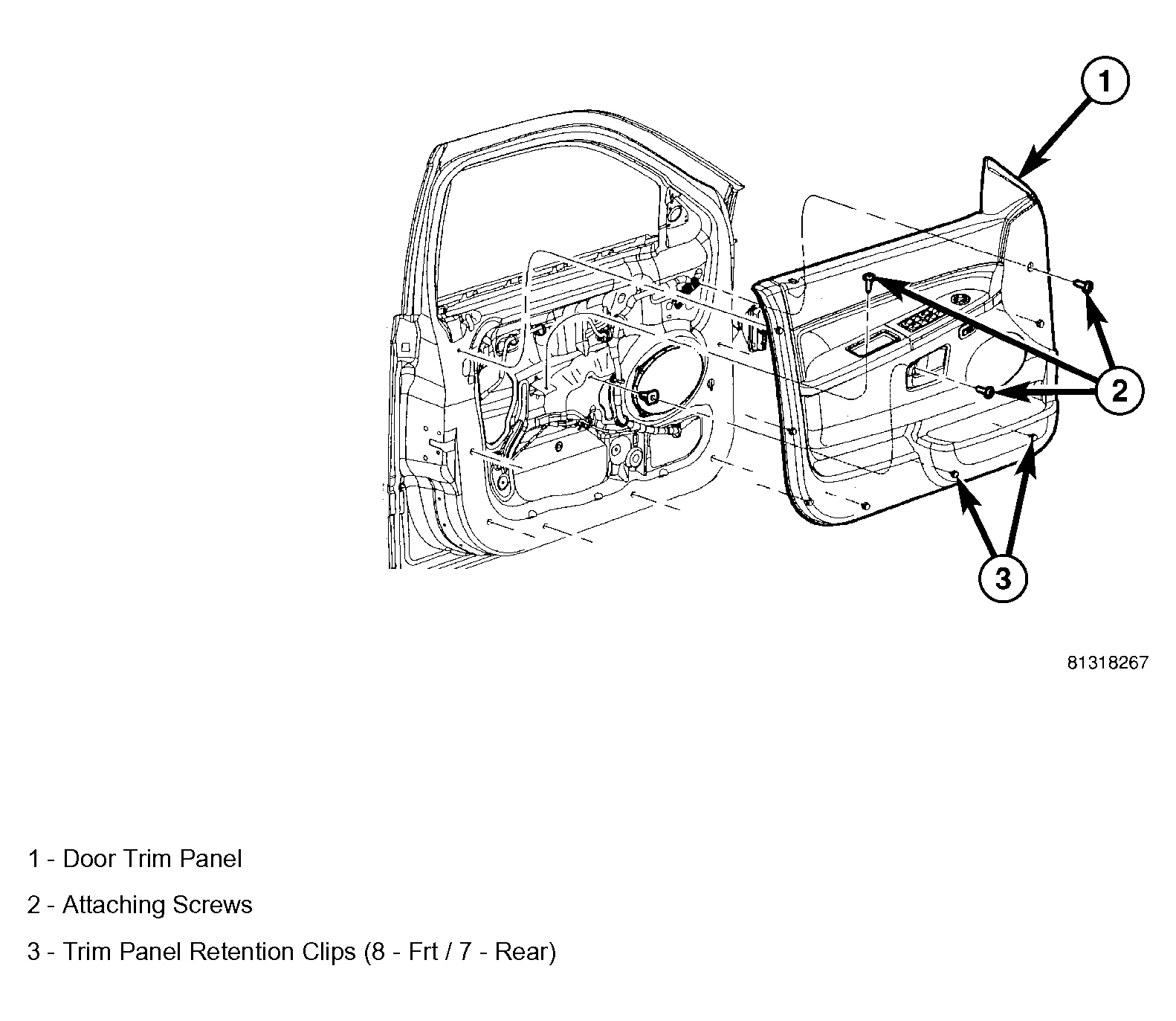

Fig 1: Identifying Door Trim Panel Components - Typical
G04125737Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .

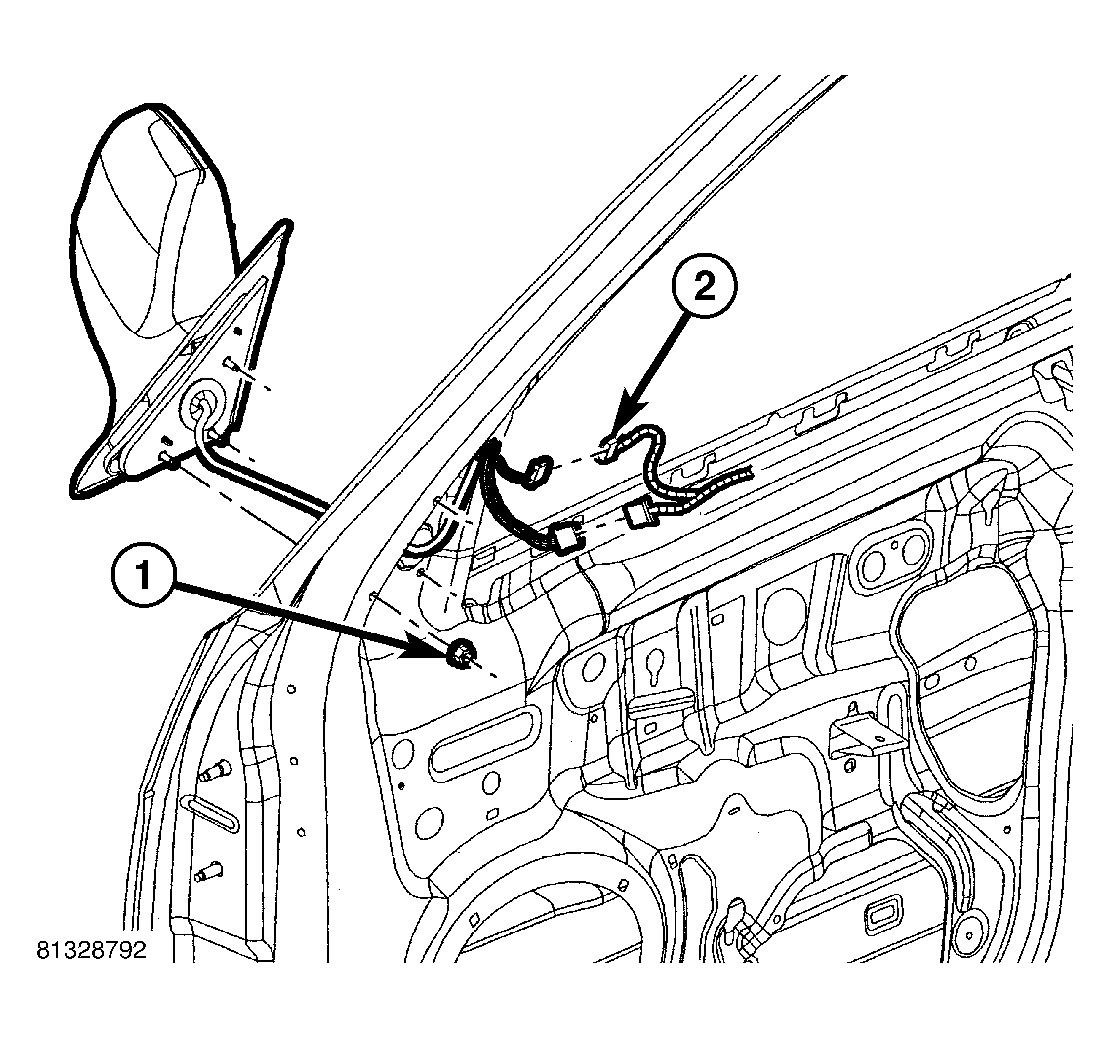

    Fig 2: Removing/Installing Outside Rearview Mirror
    GC0027888Courtesy of DAIMLERCHRYSLER CORP.
  2. Disconnect the wire harness connectors (2) from the mirror.
  3. Remove the three nuts (1) that secure the mirror to the door and carefully remove the mirror.
