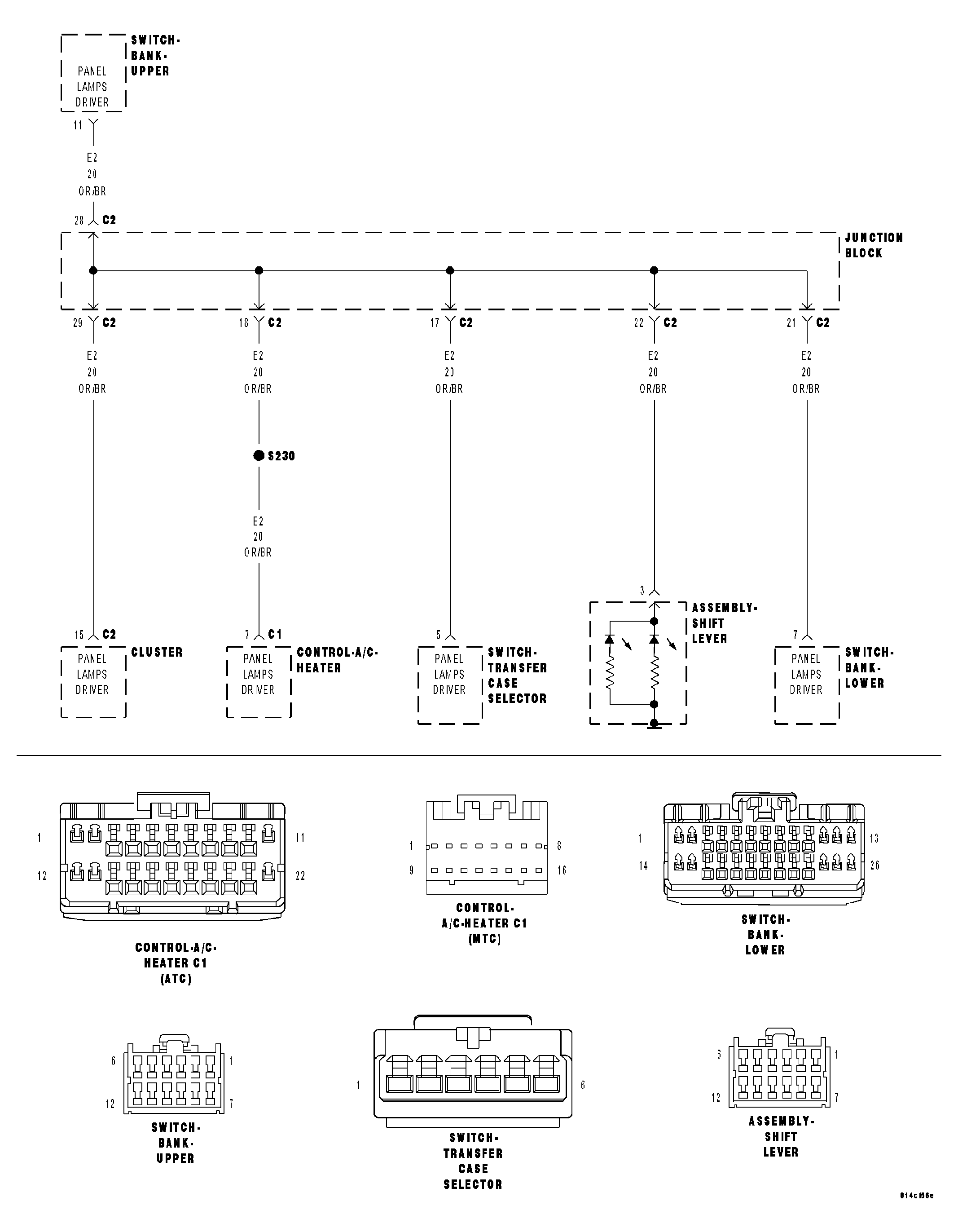

Home >> Jeep >> 2006 >> Commander Base, 3.7 K, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster - Electrical Diagnostics >> DTC Troubleshooting >> B1612-Panel Illumination Control Circuit >> Circuit Schematic
