Sunroof - Service Information: Sunshade: Removal

Fig 1: Removing/Installing Drain Channel

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the drain channel. (Refer to BODY/SUNROOF/CHANNEL-DRAIN - REMOVAL)

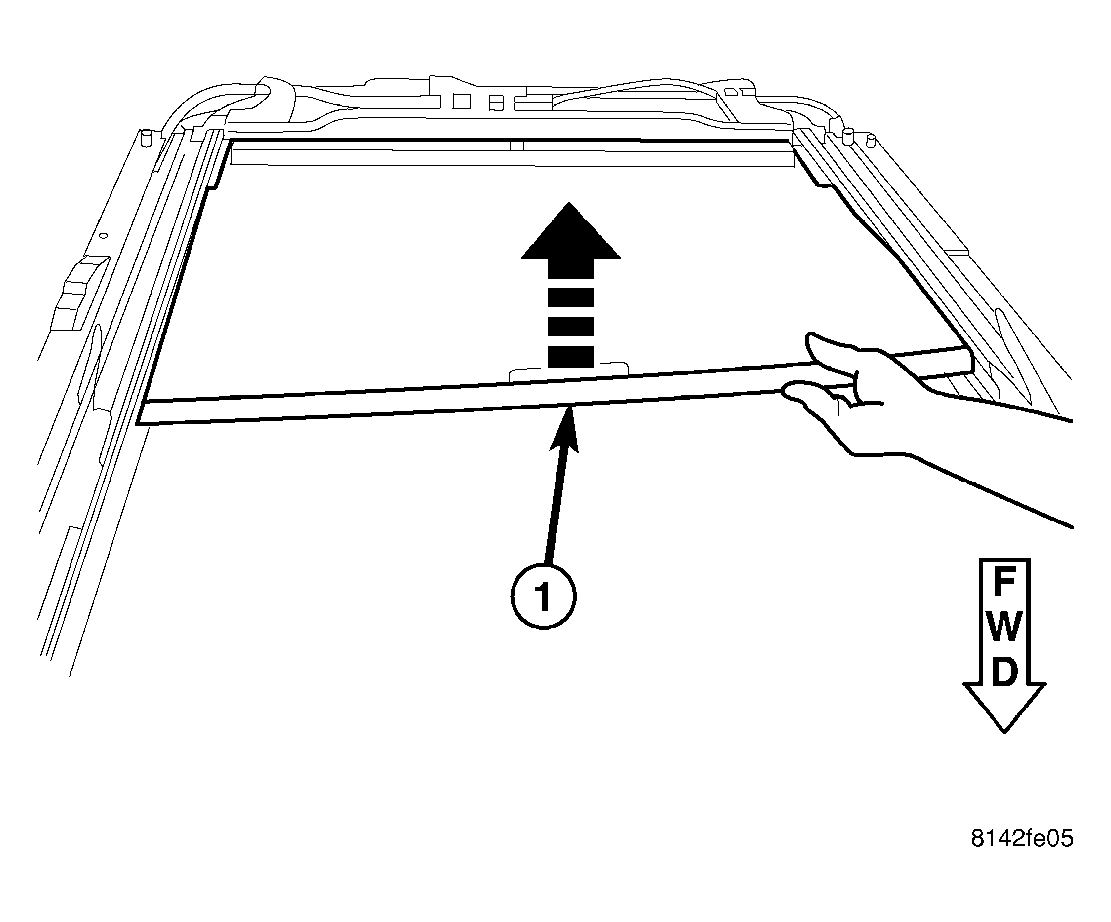

2. Push up the front center of the sunshade (1) to pop out the front two feet.
   Fig 2: Removing/Installing Sunshade

   Courtesy of DAIMLERCHRYSLER CORP.

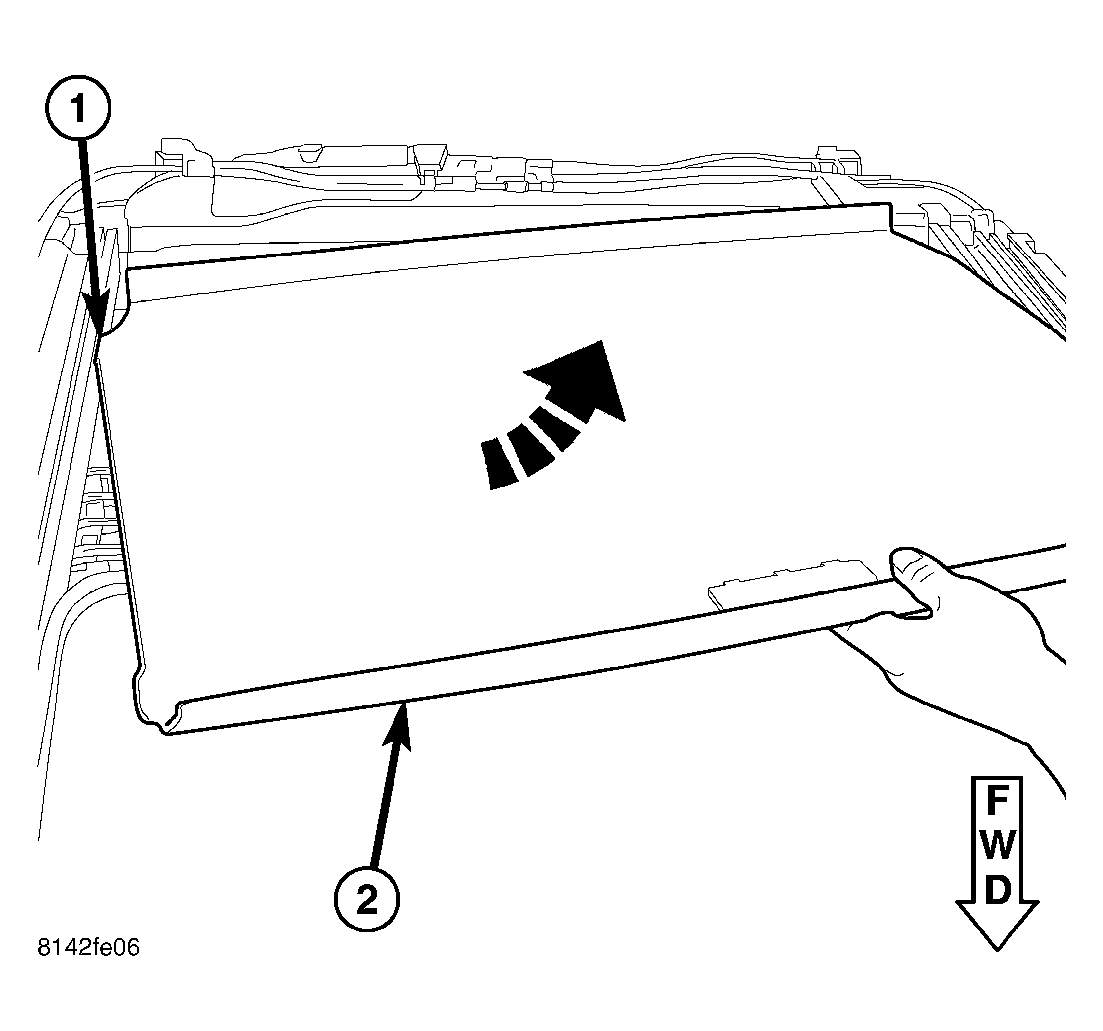

3. Rotate the sunshade (2) so that the other feet (1) are removed from the guide track.
