Cover-Guide Mechanism: Removal

Fig 1: Removing Mechanism Cover from Tabs

Courtesy of DAIMLERCHRYSLER CORP.

Move the glass panel to the full closed position.
Slide sunshade rearward to the open position.
Separate the mechanism covers (2) from the tabs (1) on the glass panel.

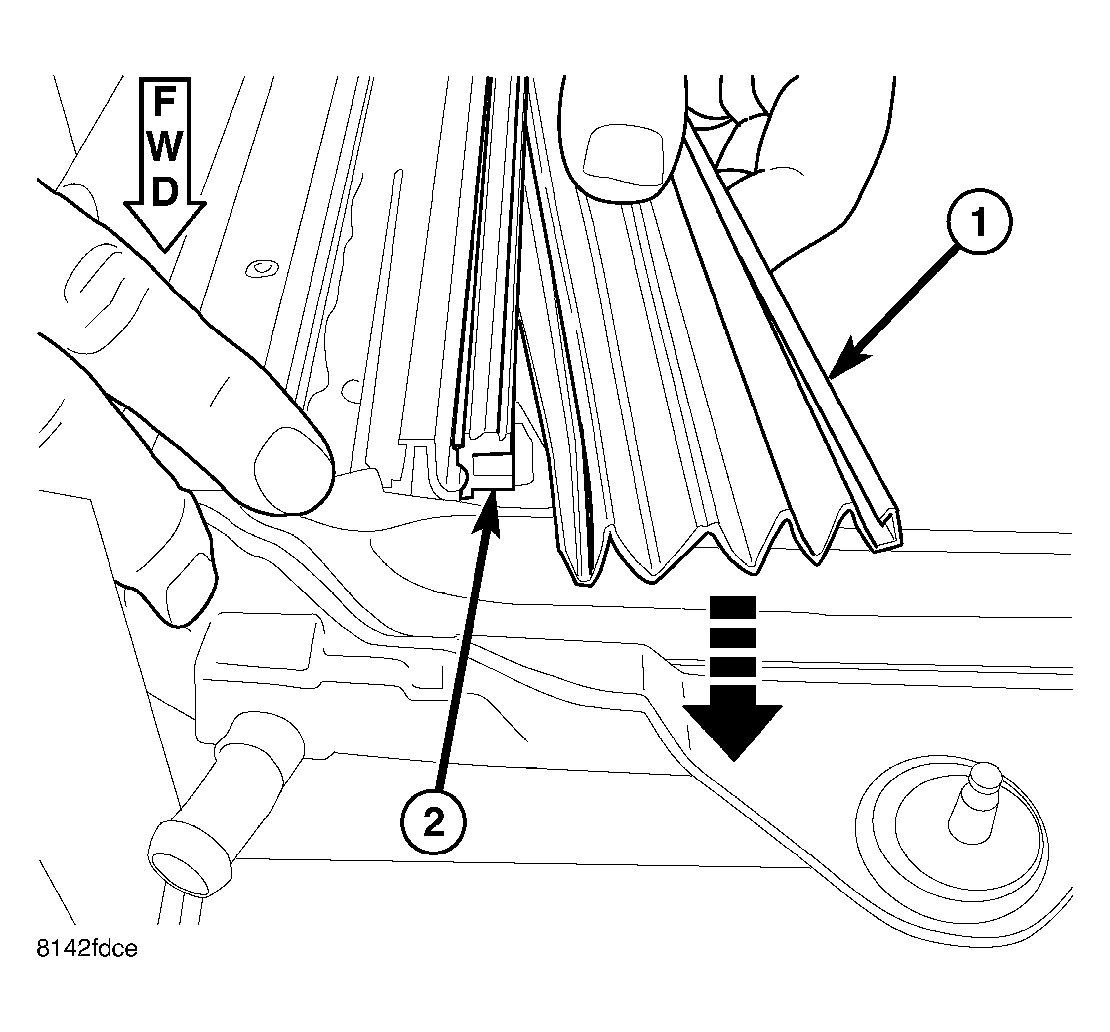

Fig 2: Removing/Installing Mechanism Cover
Courtesy of DAIMLERCHRYSLER CORP.
Hold both mechanism covers down and open the sunroof fully.
Slide the mechanism covers (1) out the front of the guide in the frame (2).
