Quarter Glass: Removal

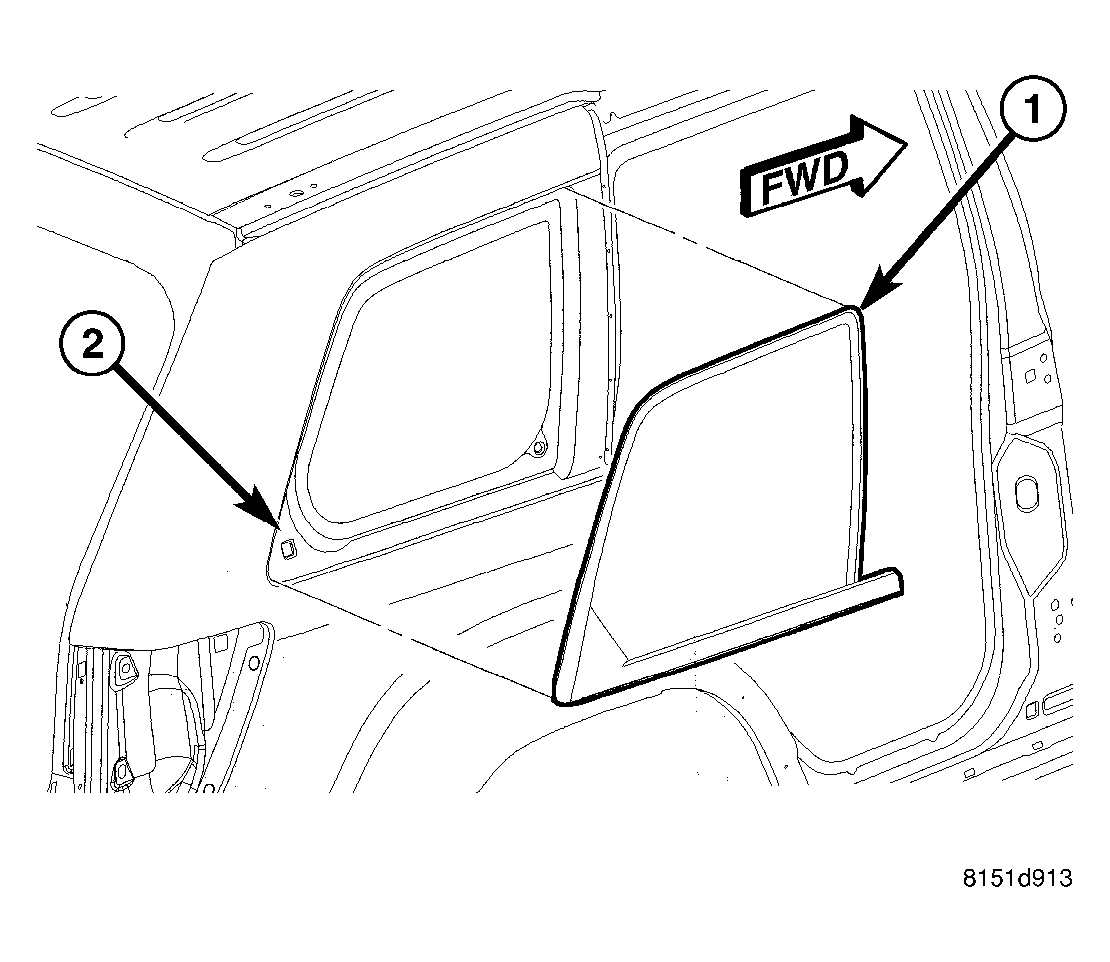

Fig 1: Quarter Glass

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Grand Cherokee (WK) shown, Commander (XK) similar.

Before proceeding with the following repair procedure, review all warnings and cautions (Refer to BODY/STATIONARY GLASS - WARNING) .
Remove the quarter panel trim from the side of the vehicle being serviced (Refer toREMOVAL ).
CAUTION: Be careful not to damage painted surfaces when removing moldings or cutting urethane around the windshield.
Using razor knife, cut the urethane adhesive that secures the quarter glass to window fence.
Carefully push the quarter window glass from the opening.
