Outboard Seat Sections

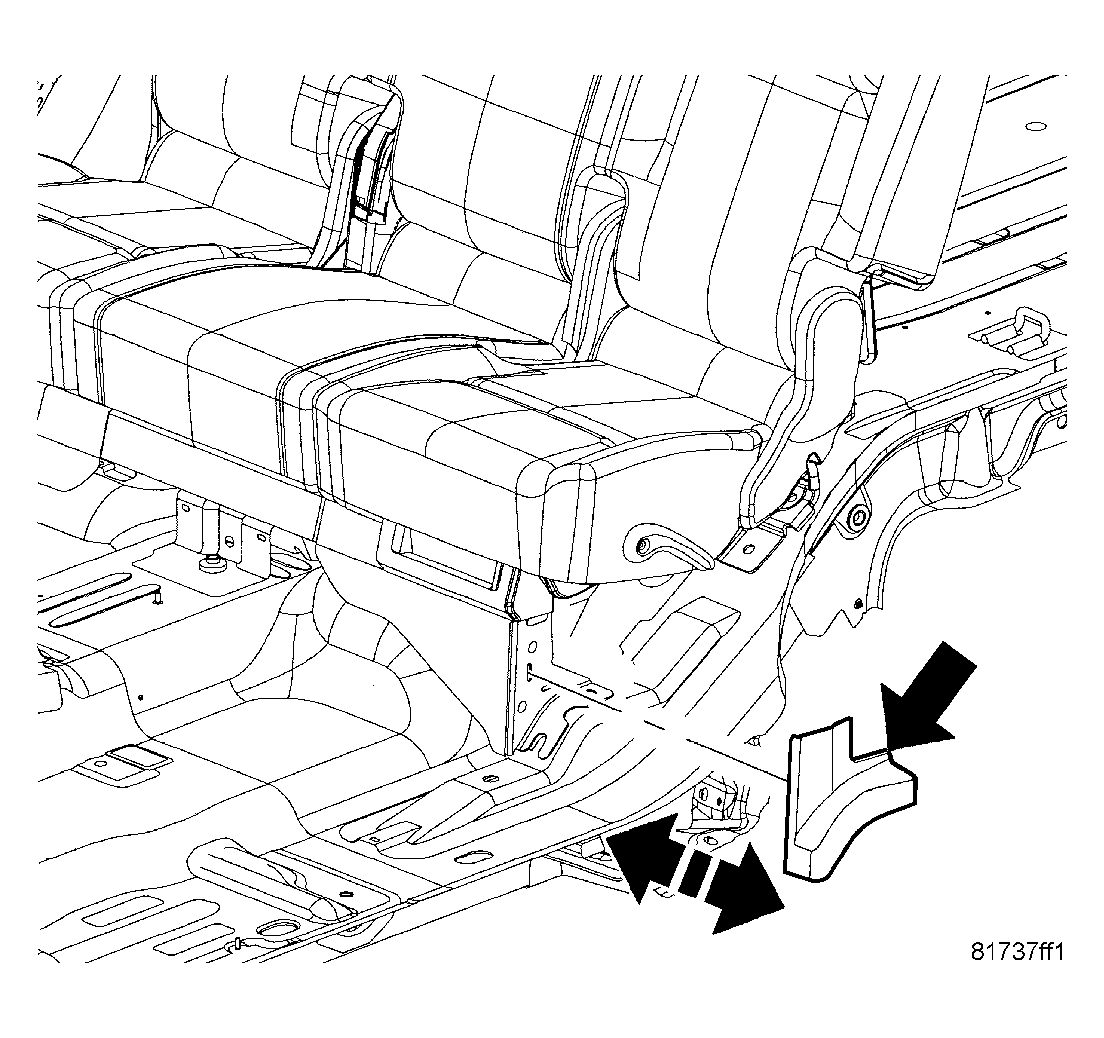

Fig 1: Remove/Install Trim Covers
GC0045002Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the trim covers.
    Fig 2: Identifying Center Seat Rear Fasteners
    GC0044982Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the four bolts (3) and remove the outboard seat assembly (4).
