Center Seat Section

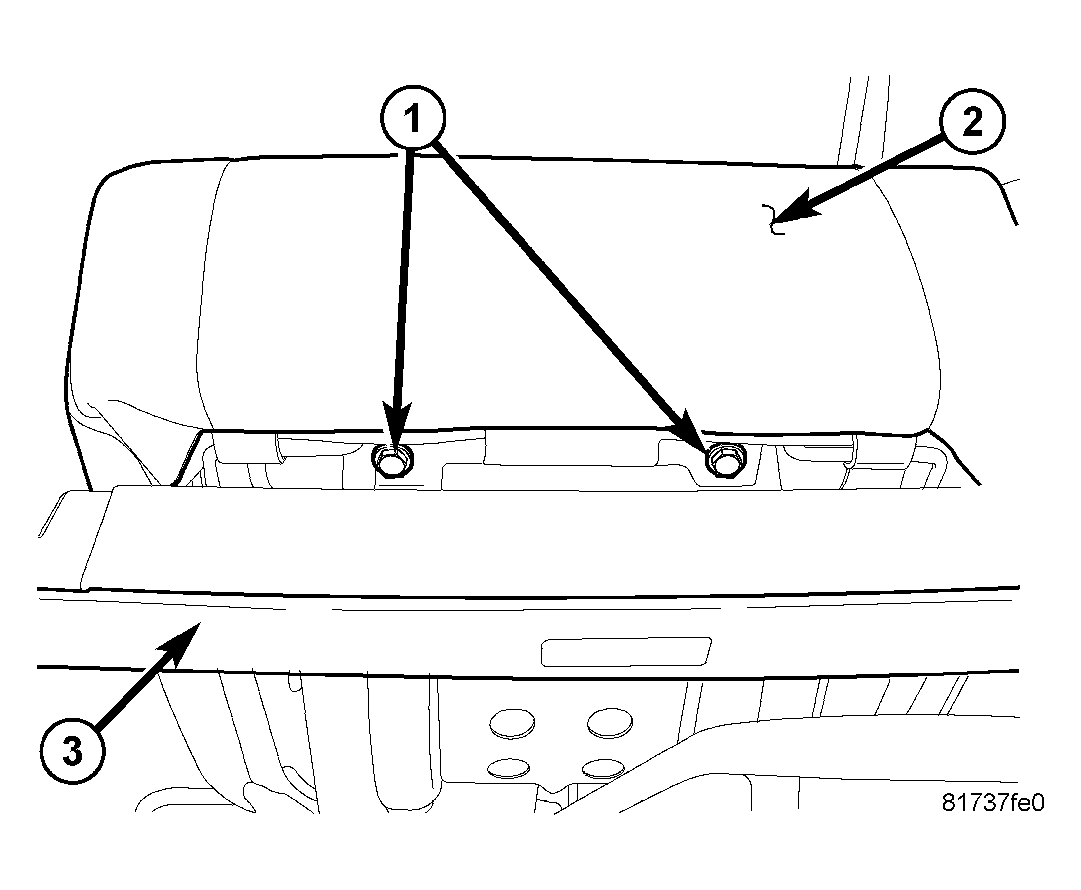

Fig 1: Remove/Install Bolts
GC0045001Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the bolts (1).
    Fig 2: Identifying Center Seat Rear Fasteners
    GC0044982Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the four center seat rear fasteners (1 and 2) and remove the center seat section.
