Body - Interior & Exterior: Seats: Headrest-Rear: Removal

Fig 1: Releasing Rear Headrest

Courtesy of DAIMLERCHRYSLER CORP.

1. Release the seat back and fold forward far enough to release the headrest.
2. Using a small flat bladed tool or equivalent, release the headrest by pressing the tool into the slots (1) on the trim caps.

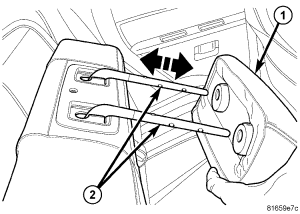

   Fig 2: Remove/Install Rear Headrest

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove the headrest (1) from the headrest bracket and hinge (2).
