Body - Interior & Exterior: Seats: Adjusters-Front: Removal: Manual

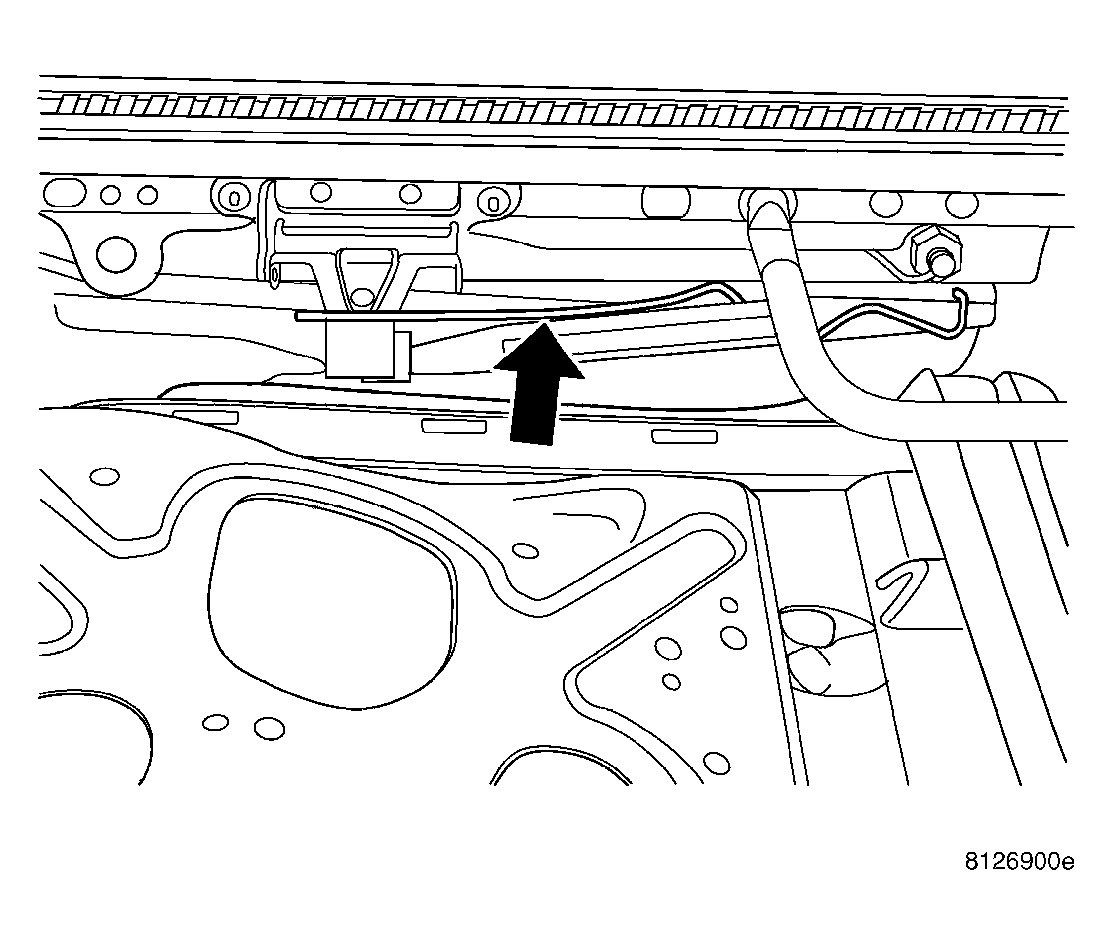

Fig 1: Towel Bar Spring

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the spring clip.

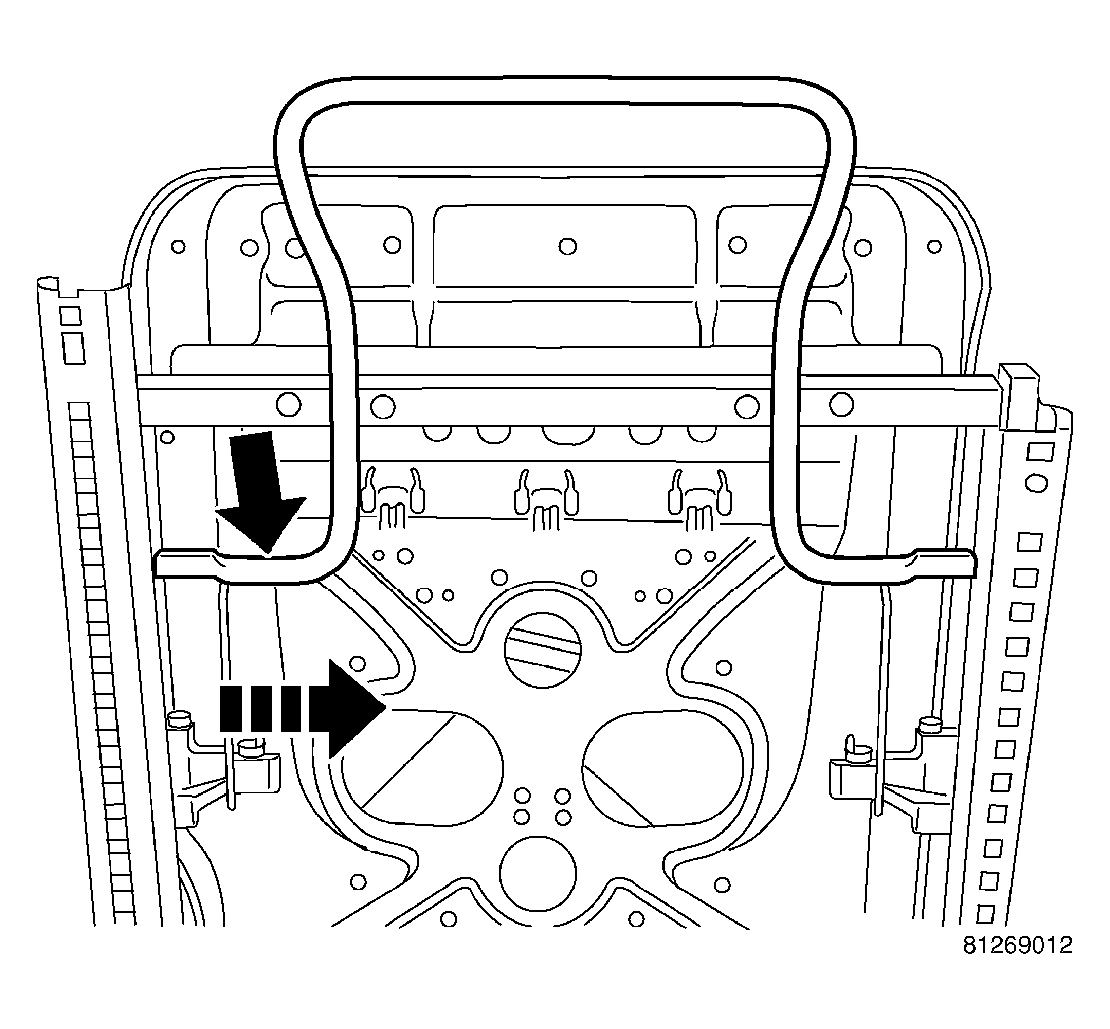

   Fig 2: Towel Bar

   Courtesy of DAIMLERCHRYSLER CORP.
2. Squeeze the towel bar together and pull the towel bar out of the left and right seat tracks.

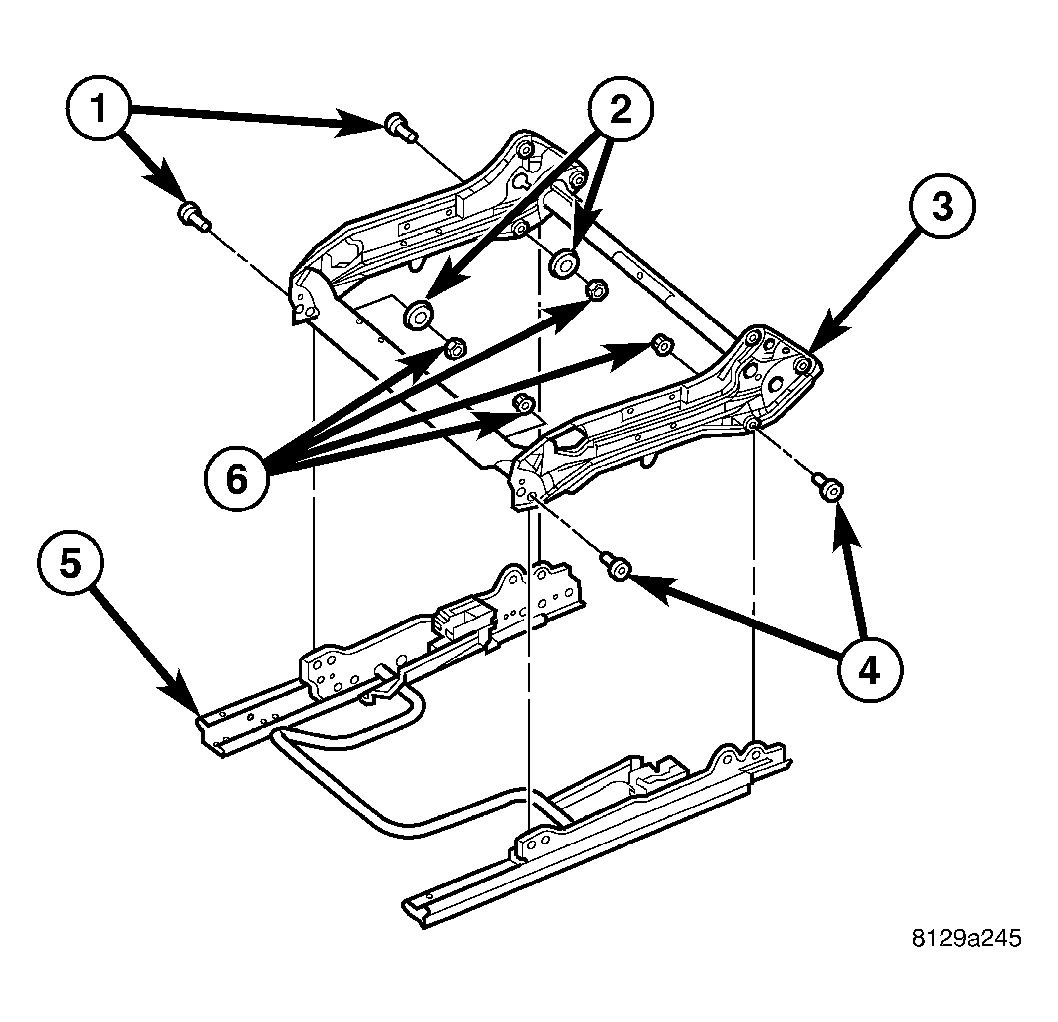

   Fig 3: Manual Adjusters

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove the bolts (1 & 4), nuts (6) and spacers (2) and separate the side member assembly (3) from the length adjuster assembly (5).
