Panel-Cowl Side Trim: Removal

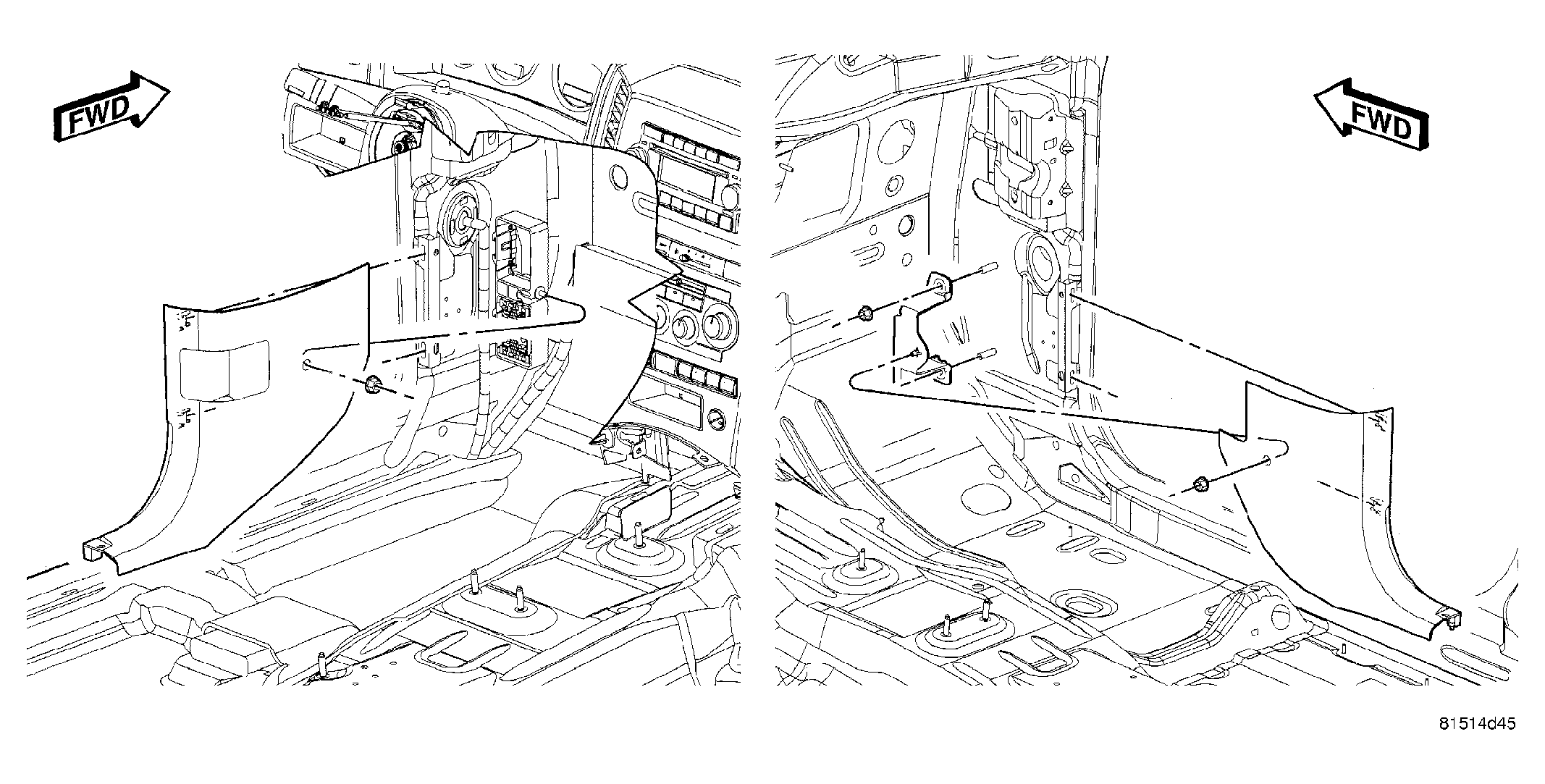

Fig 1: Scuff Trim Front
GC0027933Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the front door sill scuff plate, (Refer to BODY/INTERIOR/DOOR SILL SCUFF PLATE - REMOVAL) .
  2. Remove the hush panel from underneath the instrument panel.
  3. Remove the nut that secures the cowl trim panel to the mounting bracket.
  4. Remove the cowl trim panel.
