Jeep
>>
2006
>>
Commander Base, 3.7 K, RWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Body - Interior & Exterior
>>
Instrument Panel
>>
Bezel-Instrument Panel
>>
Removal
Bezel-Instrument Panel: Removal

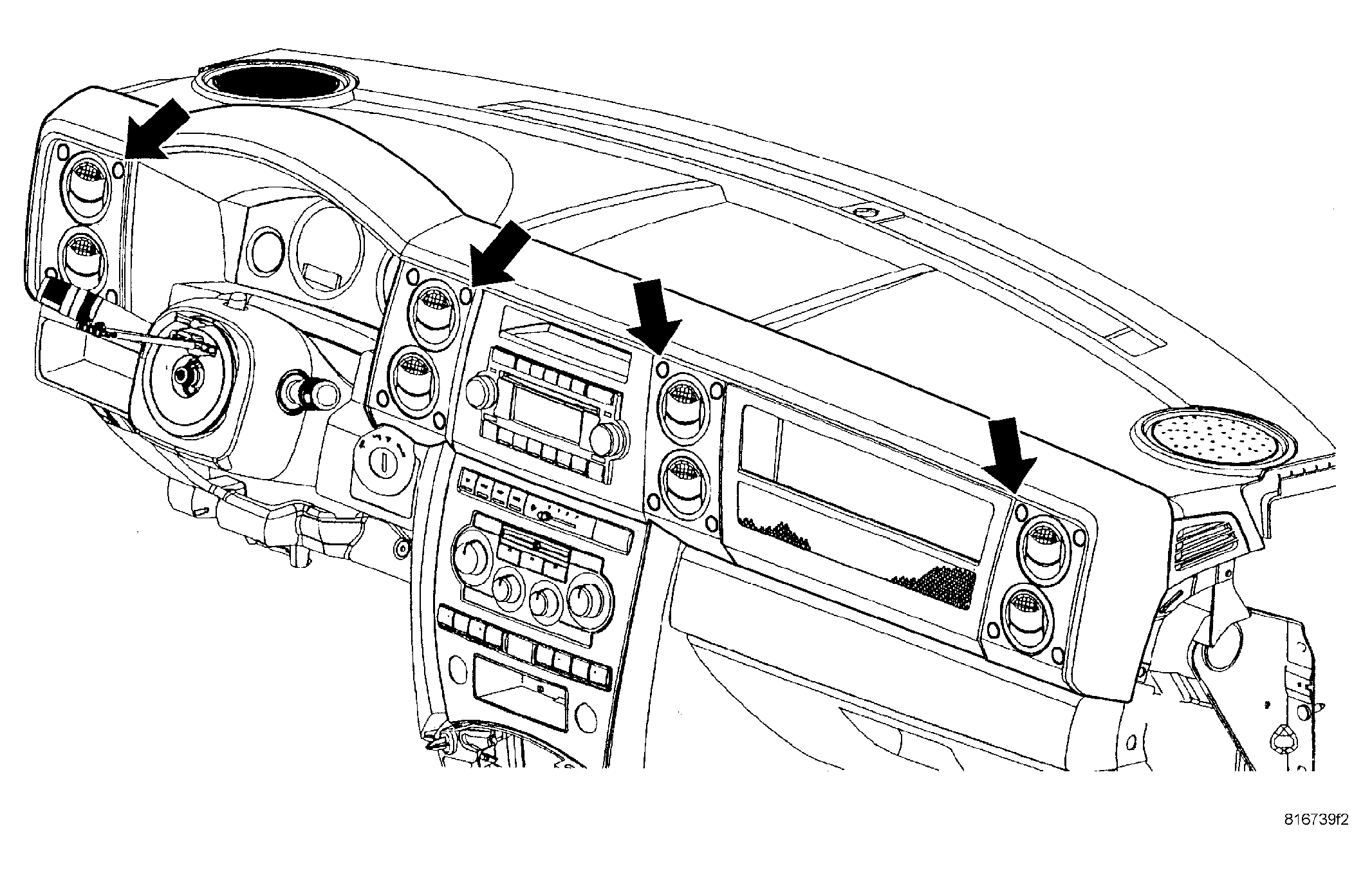

Fig 1: Remove/Install Trim Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 16 screws and using a trim stick C-4755 or equivalent, separate the trim bezel and remove.
Courtesy of DAIMLERCHRYSLER CORP.
