Body - Interior & Exterior: Hood: Latch: Removal

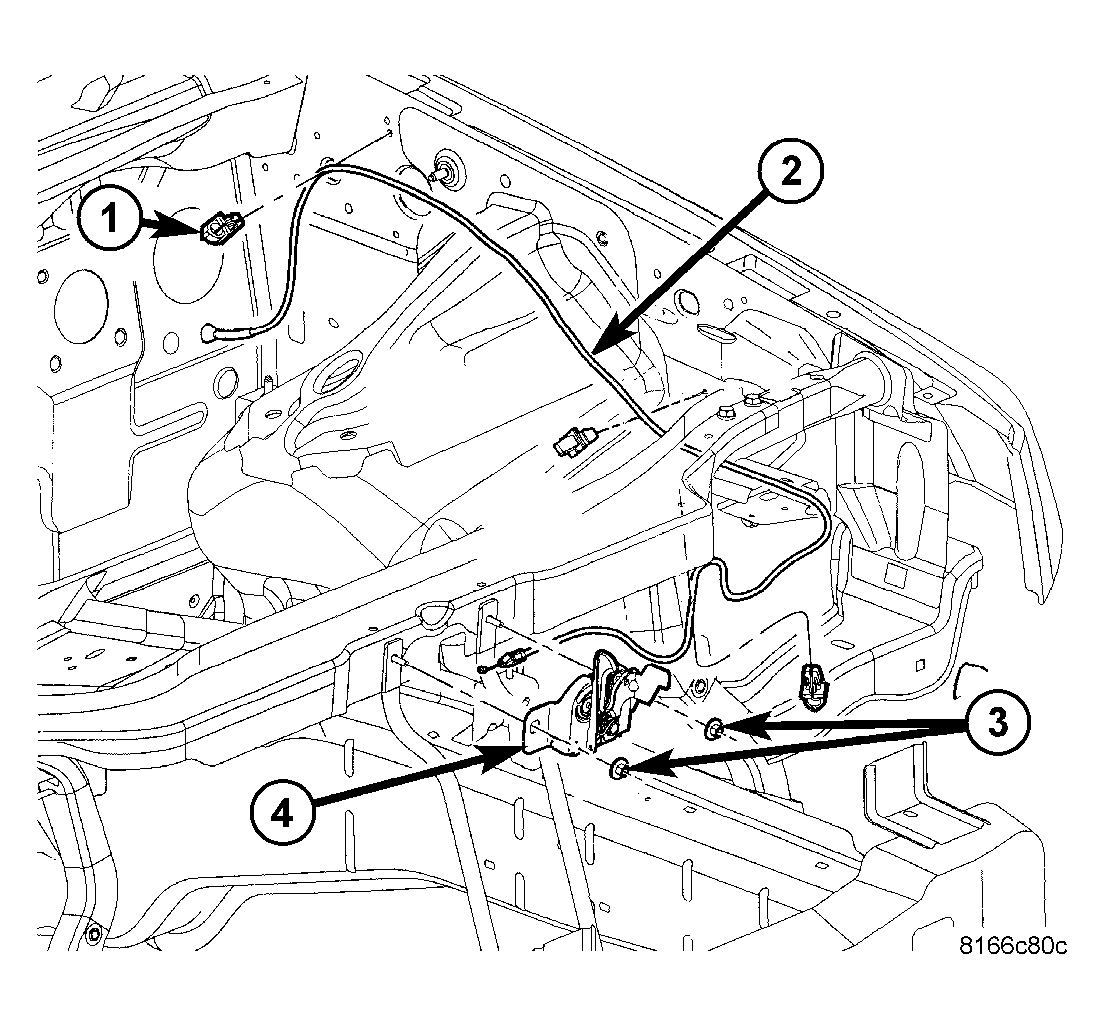

Fig 1: Remove/Install Nuts At Radiator Crossmember

Courtesy of DAIMLERCHRYSLER CORP.

1. Using a grease pencil or equivalent, mark the position of the hood latch (4) on the upper radiator crossmember.
2. Remove the two nuts (3) that secure the hood latch (4) to the upper radiator crossmember.

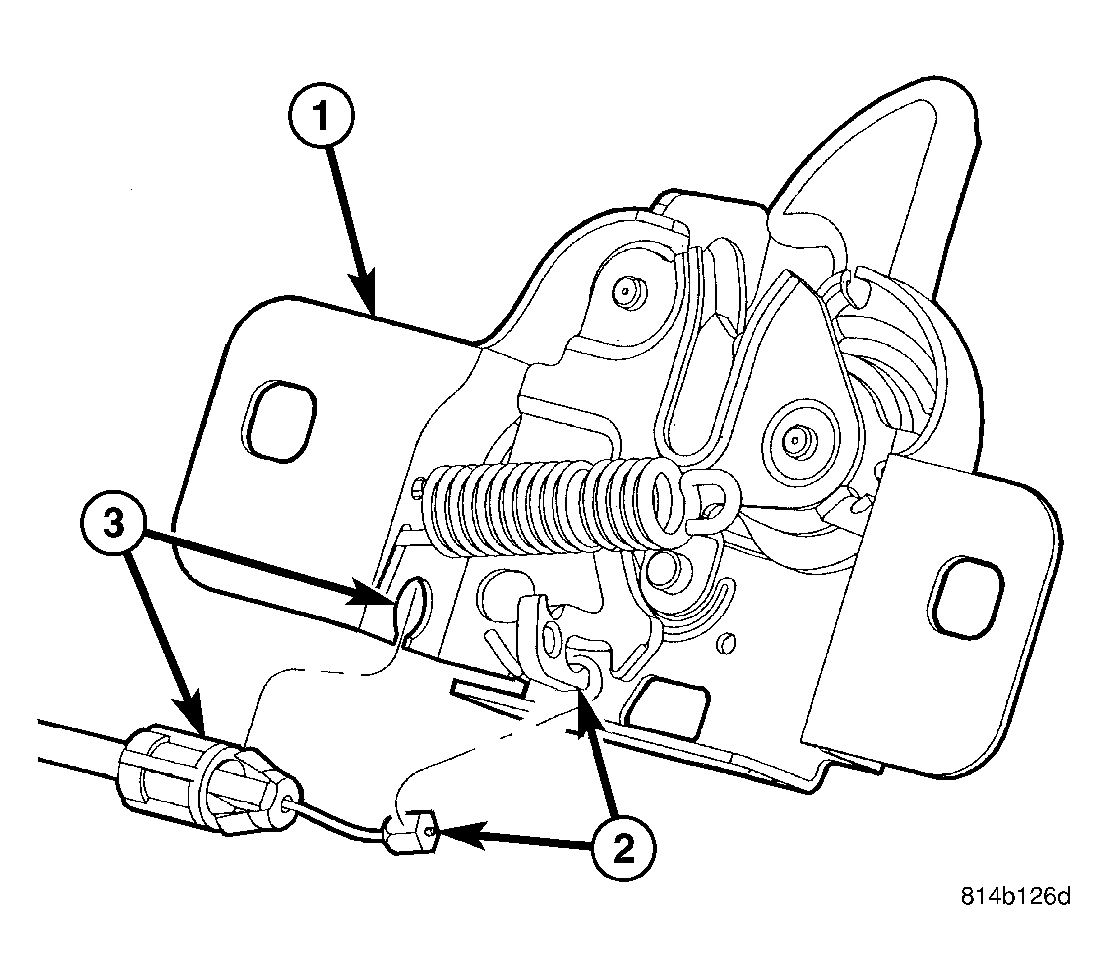

   Fig 2: Cable Attachment

   Courtesy of DAIMLERCHRYSLER CORP.
3. Disconnect the hood latch cable (2 and 3) from the hood latch (1).
