Body - Interior & Exterior: Exterior: Rack-Luggage: Removal

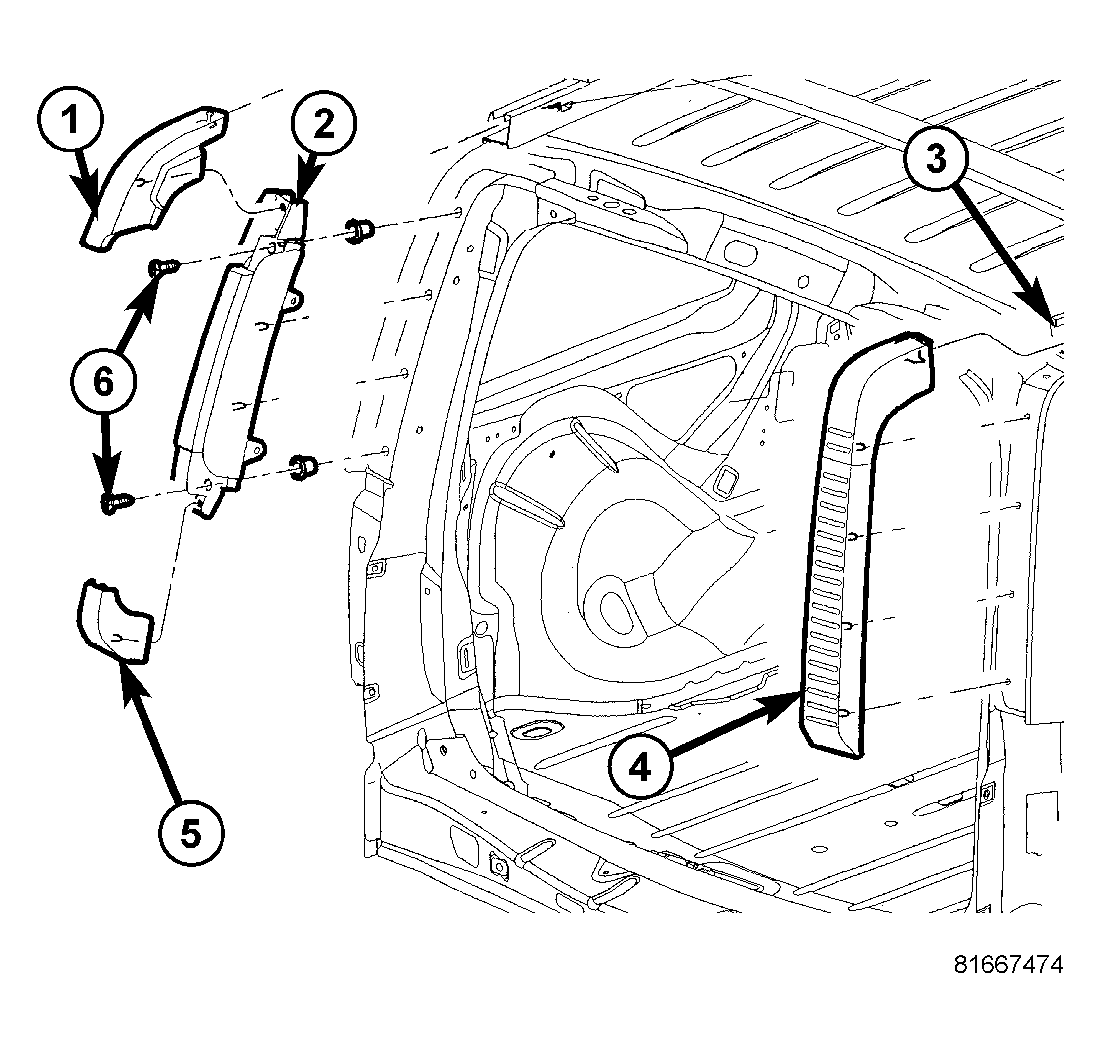

Fig 1: Remove/Install Grab Handle Or Rear Applique

Courtesy of DAIMLERCHRYSLER CORP.

1. For vehicles equipped with grab handles, use a trim stick C-4755 or equivalent and separate the upper grab handle cover (1).
2. For vehicles equipped with applique, remove the push pin fasteners and using a trim stick C-4755 or equivalent remove the rear applique (4).

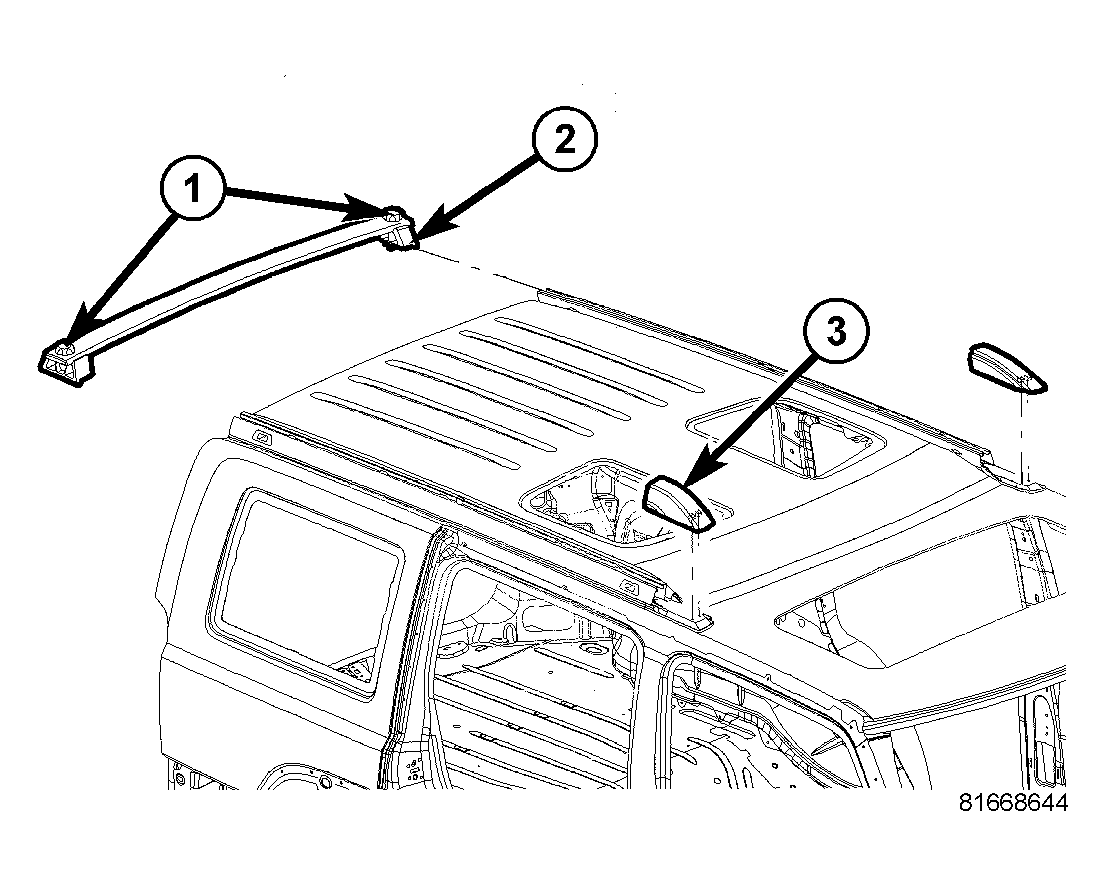

   Fig 2: Remove/Install Luggage Rack Cross Bars

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove luggage rack end covers (3), pull straight up.
4. Loosen the cross bar knobs (1) and remove the cross bars, if equipped.

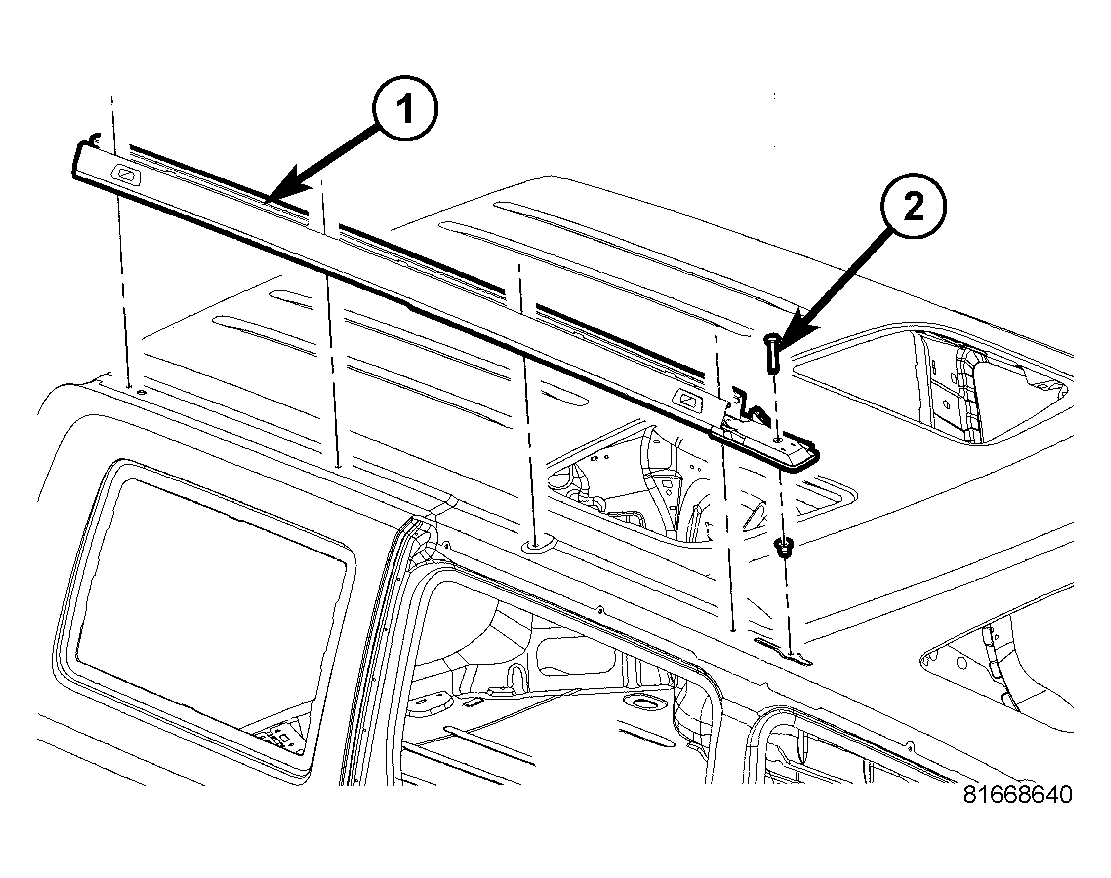

   Fig 3: Remove/Install Luggage Rack Bars

   Courtesy of DAIMLERCHRYSLER CORP.
5. Remove the mounting screws (2).
6. Remove luggage rack bars.
