Body - Interior & Exterior: Exterior: Grille: Removal

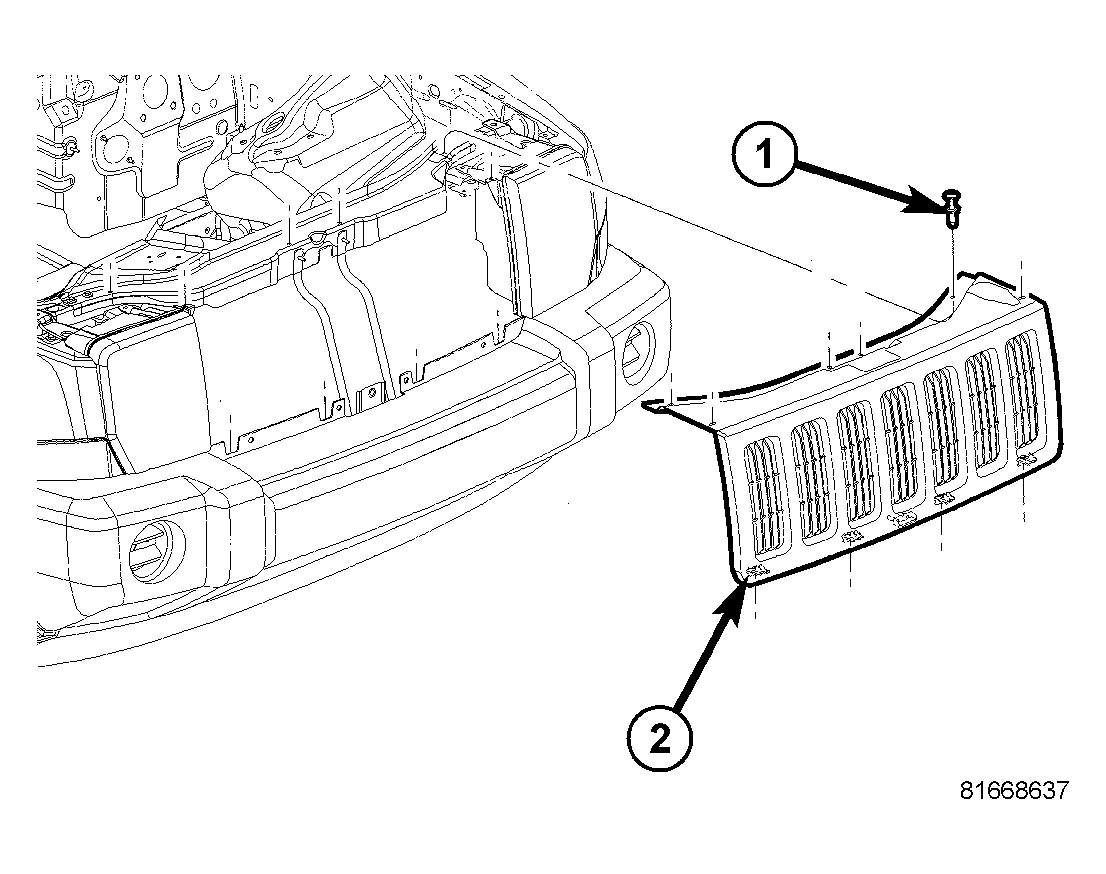

Fig 1: Remove/Install Grille
GC0044930Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the 6 upper push pins (1).
  2. Tip grill forward and remove grill (2).
