Body Side Cladding: Removal

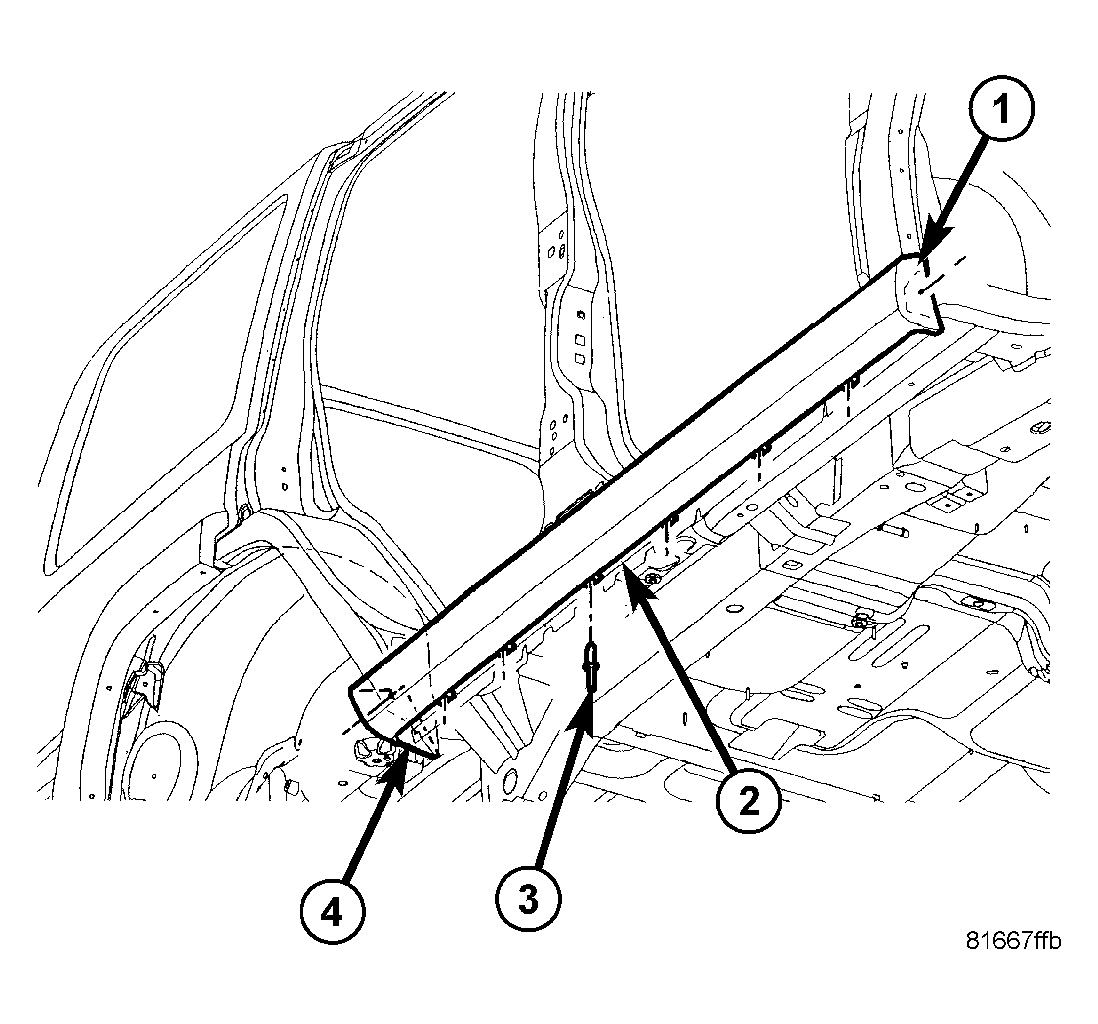

Fig 1: Remove/Install Rivets
GC0044938Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the font (1) and rear (4) rivets from the wheel wells.
  2. Remove the six lower rivets (3).

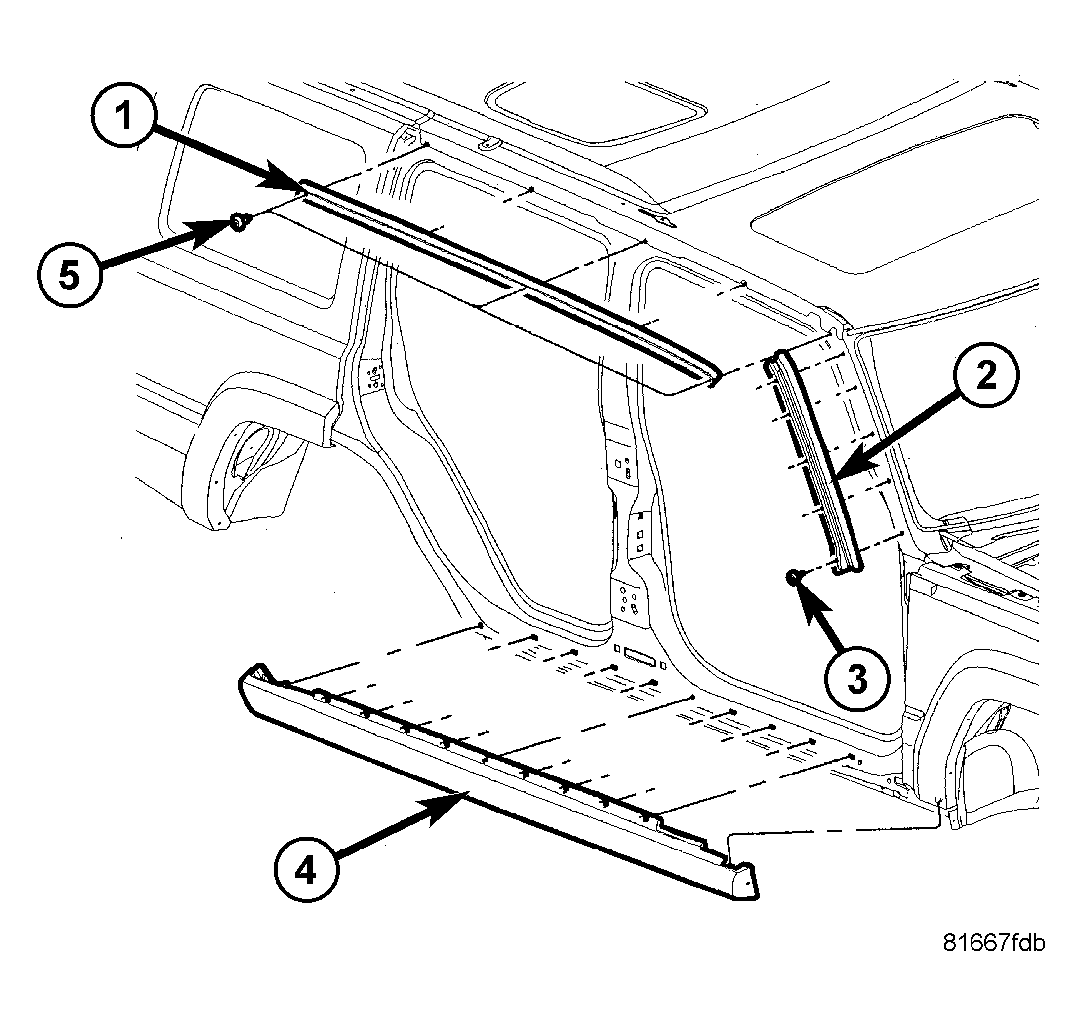

    Fig 2: Remove/Install Sill Cladding
    GC0044937Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the sill cladding (4).
