Doors - Rear: Striker: Removal

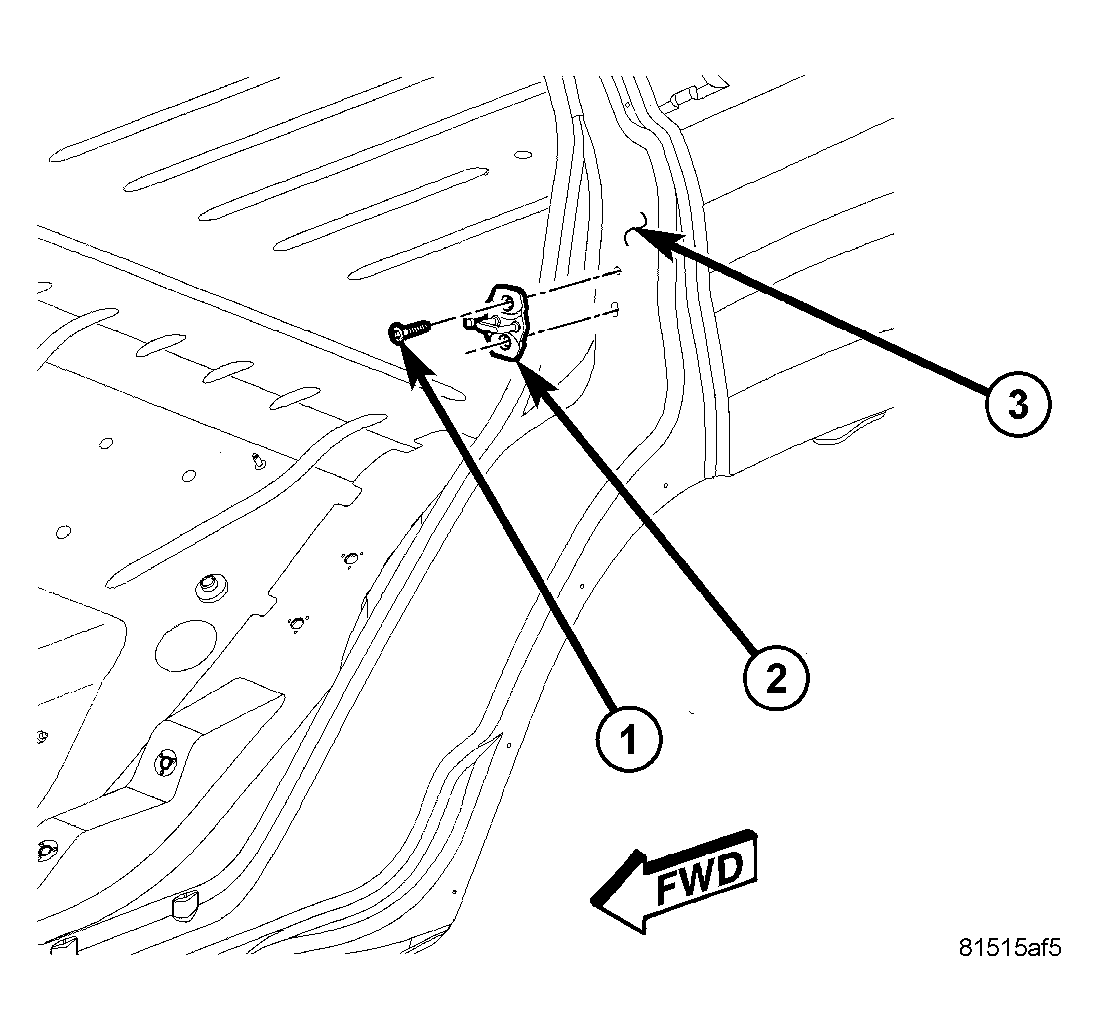

Fig 1: Removing/Installing Rear Door Striker

Courtesy of DAIMLERCHRYSLER CORP.

Using a grease pencil or equivalent, mark the location of the door latch striker (2) on the c-pillar.
Remove the two bolts (1) that secure the striker to the c-pillar and remove the striker.
