Door - Front: Striker: Removal

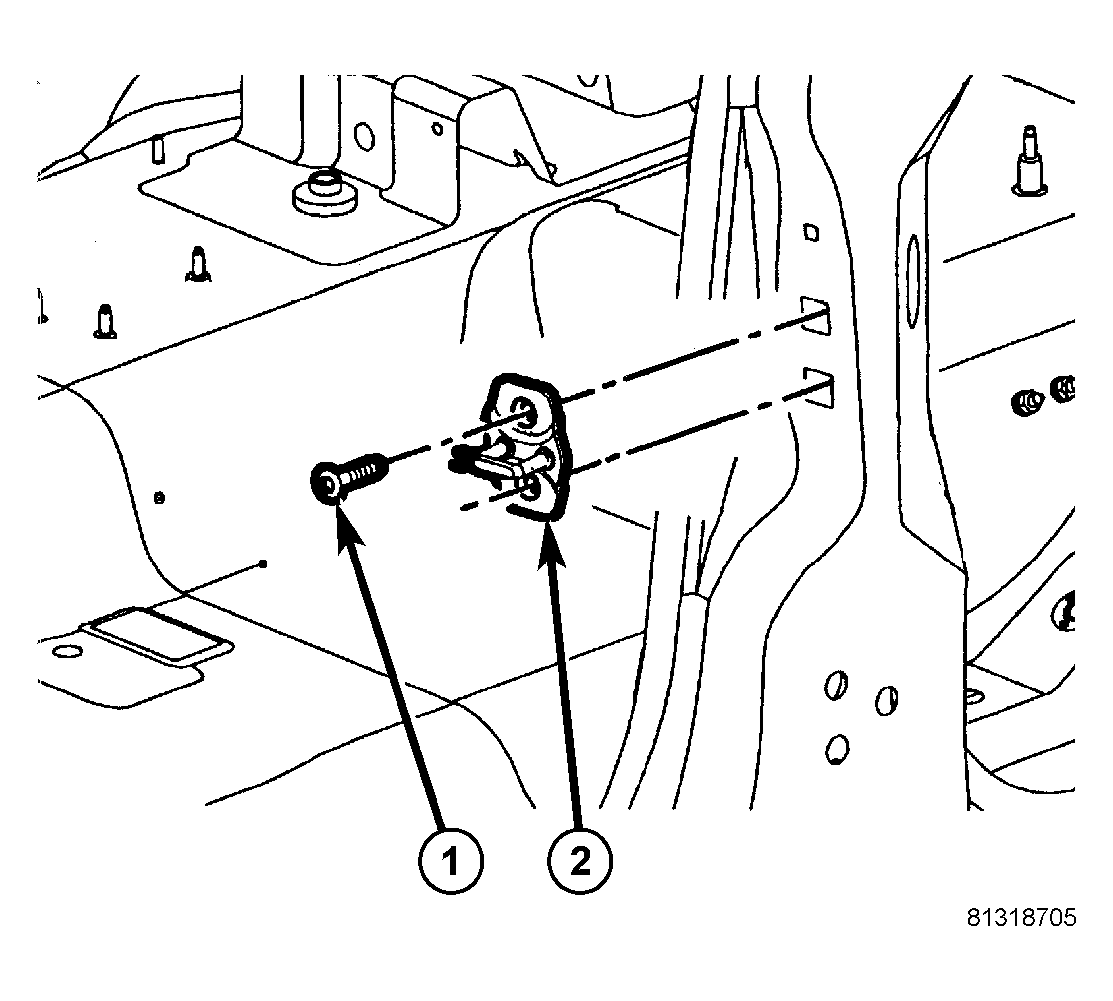

Fig 1: Identifying Striker

Courtesy of DAIMLERCHRYSLER CORP.

Using a grease pencil or equivalent, mark the location of the door latch striker (2) on the b-pillar.
Remove the two bolts (1) that secure the striker to the b-pillar and remove the striker.
