Door - Front: Cylinder-Lock: Removal

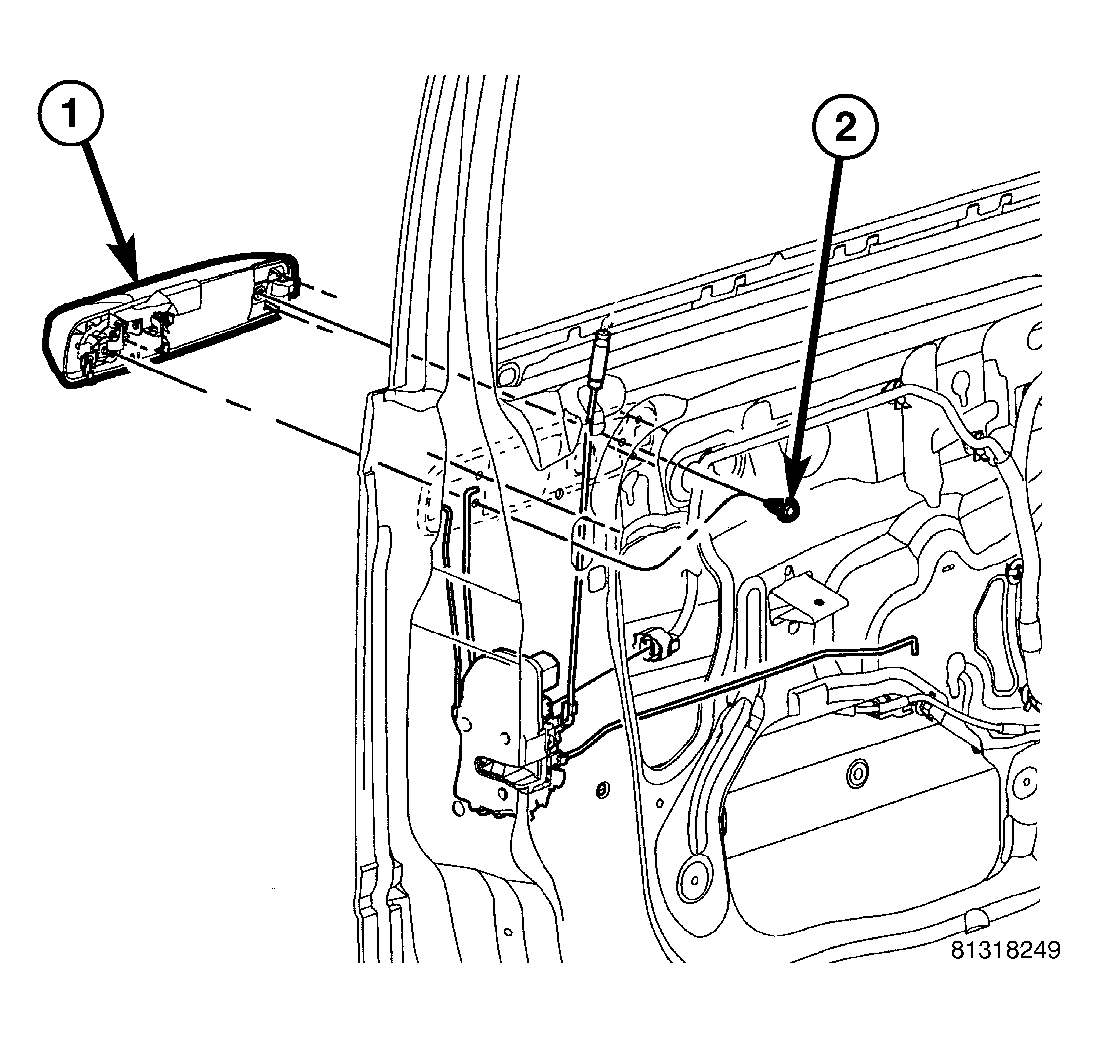

Fig 1: Removing/Installing Exterior Handle

Courtesy of DAIMLERCHRYSLER CORP.

Remove the exterior door handle (1) from the outside of the driver side front door (Refer to BODY/DOOR - FRONT/EXTERIOR HANDLE - REMOVAL) .

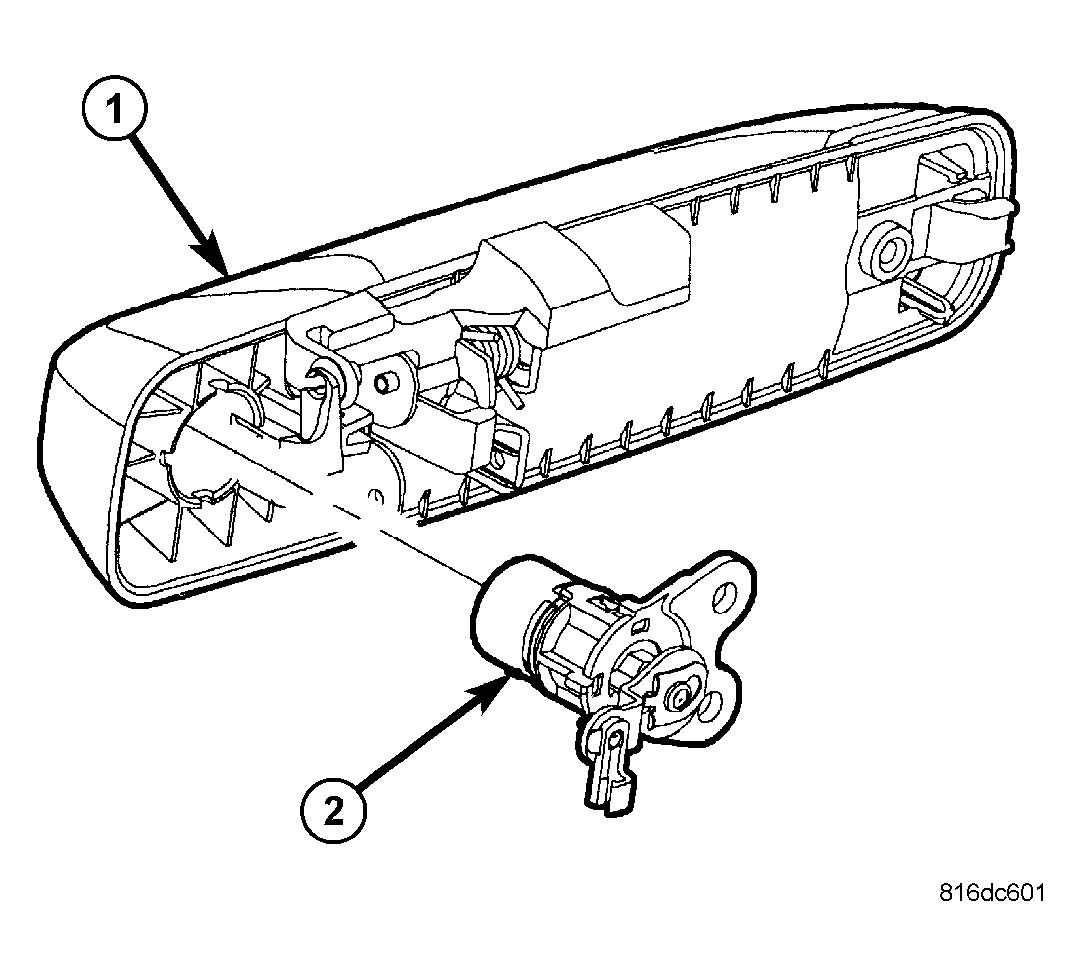

Fig 2: Removing/Installing Lock Cylinder
Courtesy of DAIMLERCHRYSLER CORP.
Using hand pressure, push on the face of the lock cylinder (2) until it pops out of the cavity in the back of the door handle.
