Wiper Arm: Removal: Front

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Lift the front wiper arm to its over-center position to hold the wiper blade off of the glass and relieve the spring tension on the wiper arm to wiper pivot shaft connection.

Carefully pry the plastic nut cap off of the pivot end of the wiper arm. See Fig 1.

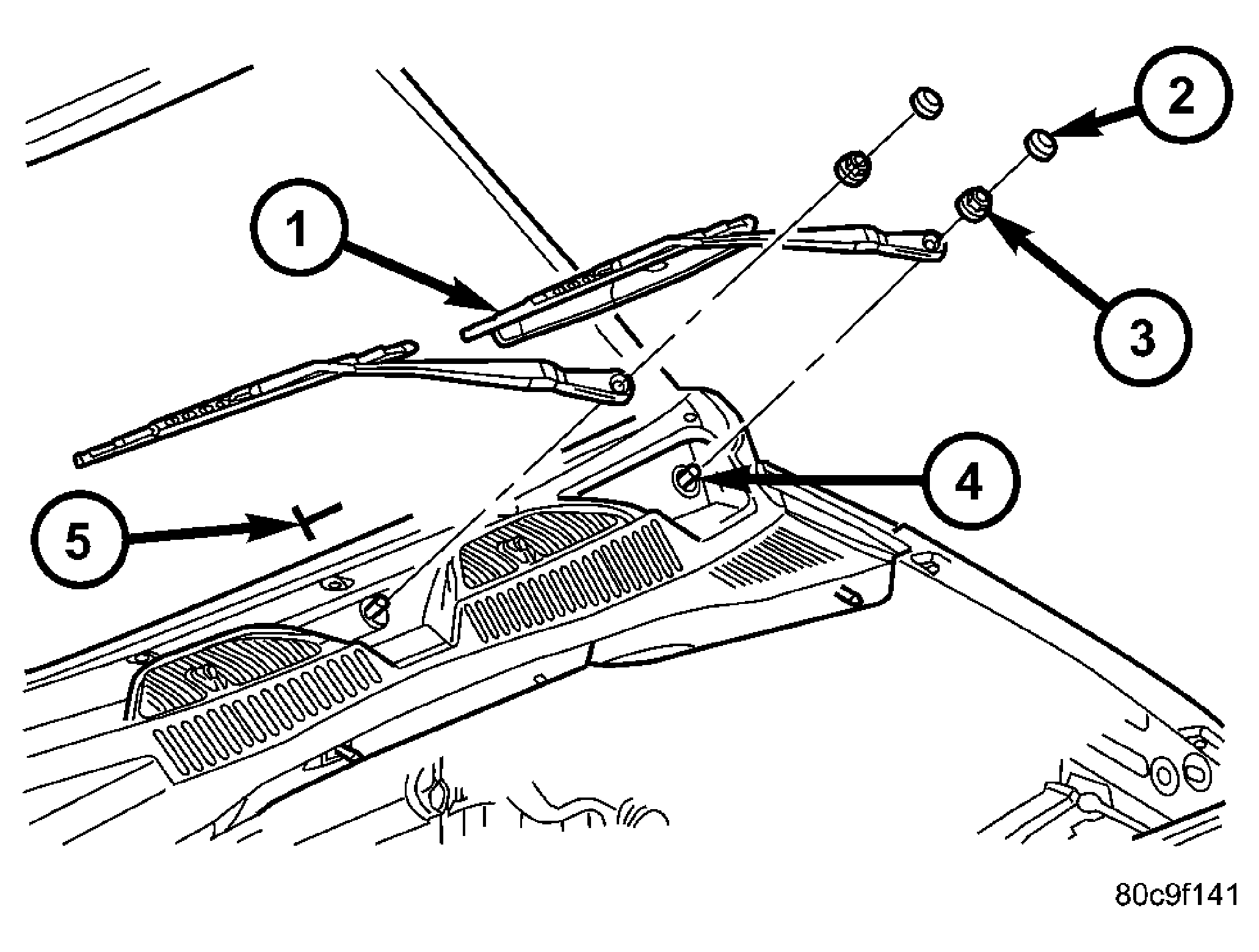

Fig 1: Front Wiper Arm Remove/Install

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT WIPER BLADE & ARM (2)

2 - CAP (2)

3 - NUT (2)

4 - PIVOT SHAFT (2)

5 - T-SHAPED ALIGNMENT MARK (2)

Remove the nut that secures the wiper arm to the wiper pivot shaft.

If necessary, use a suitable battery terminal puller to disengage the wiper arm from the wiper pivot shaft. See Fig 2.

Fig 2: Disengaging Wiper Arm from Pivot Shaft

Courtesy of DAIMLERCHRYSLER CORP.

1 - WIPER ARM

2 - WIPER PIVOT SHAFT

3 - BATTERY TERMINAL PULLER

Remove the front wiper arm pivot end from the wiper pivot shaft.
