Wiper Arm Park Ramp: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

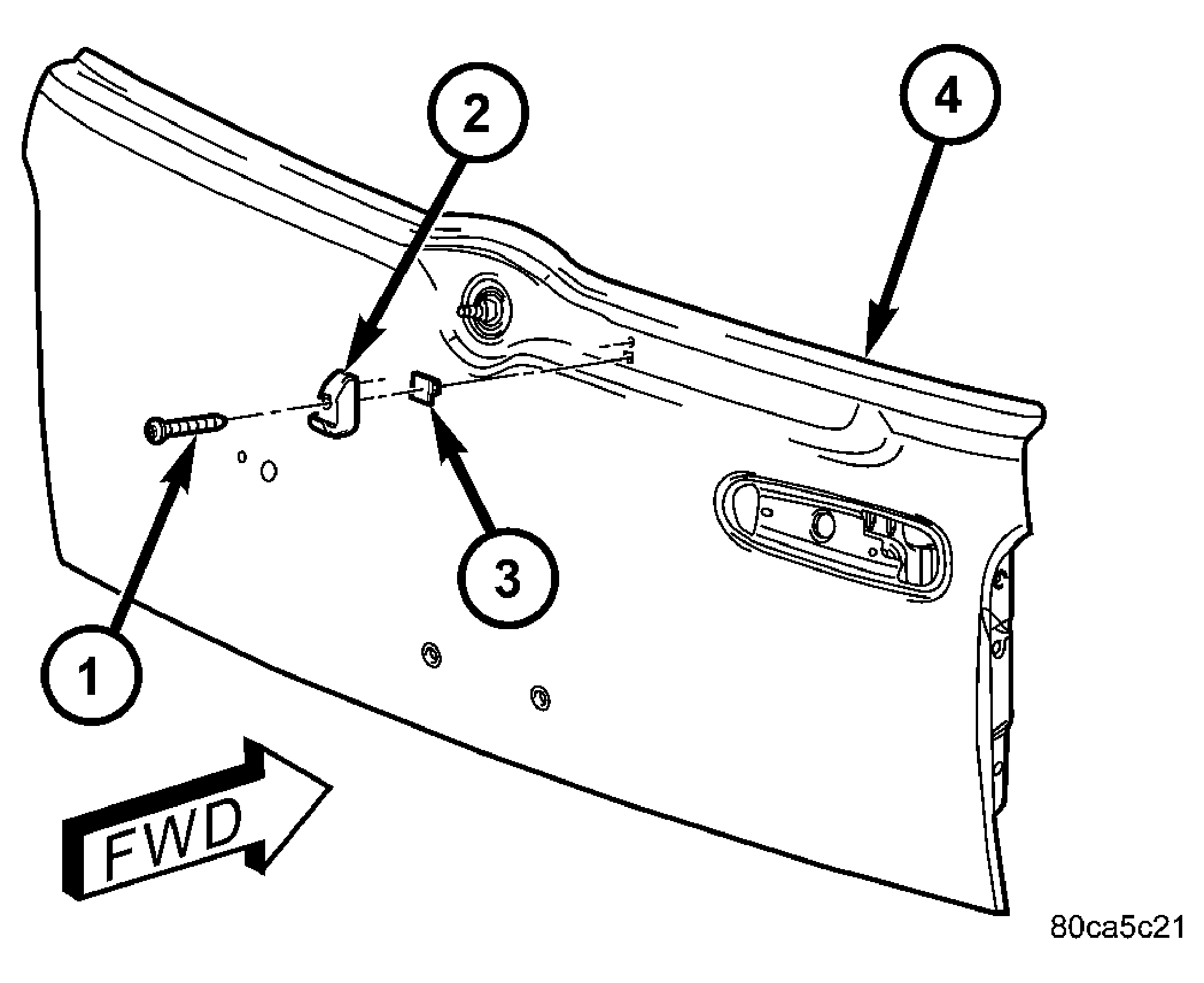

  1. Position the wiper arm park ramp onto the tailgate outer panel. See Figure.
  2. Install and tighten the screw that secures the wiper arm park ramp to the tailgate outer panel. Tighten the screw to 5 N.m (45 in. lbs.).
  3. Lower the rear wiper arm and blade and place the wiper arm support onto the wiper arm park ramp.
