Washer Nozzle: Installation: Front

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. From the top of the cowl plenum cover/grille panel, position the nipple end of the front washer nozzle through the mounting hole and engage the anti-rotation tab of the nipple into the anti-rotation notch in the mounting hole.
  2. Push firmly and evenly on the top of the front washer nozzle until the integral snap features lock into place on the underside of the cowl plenum cover/grille panel.

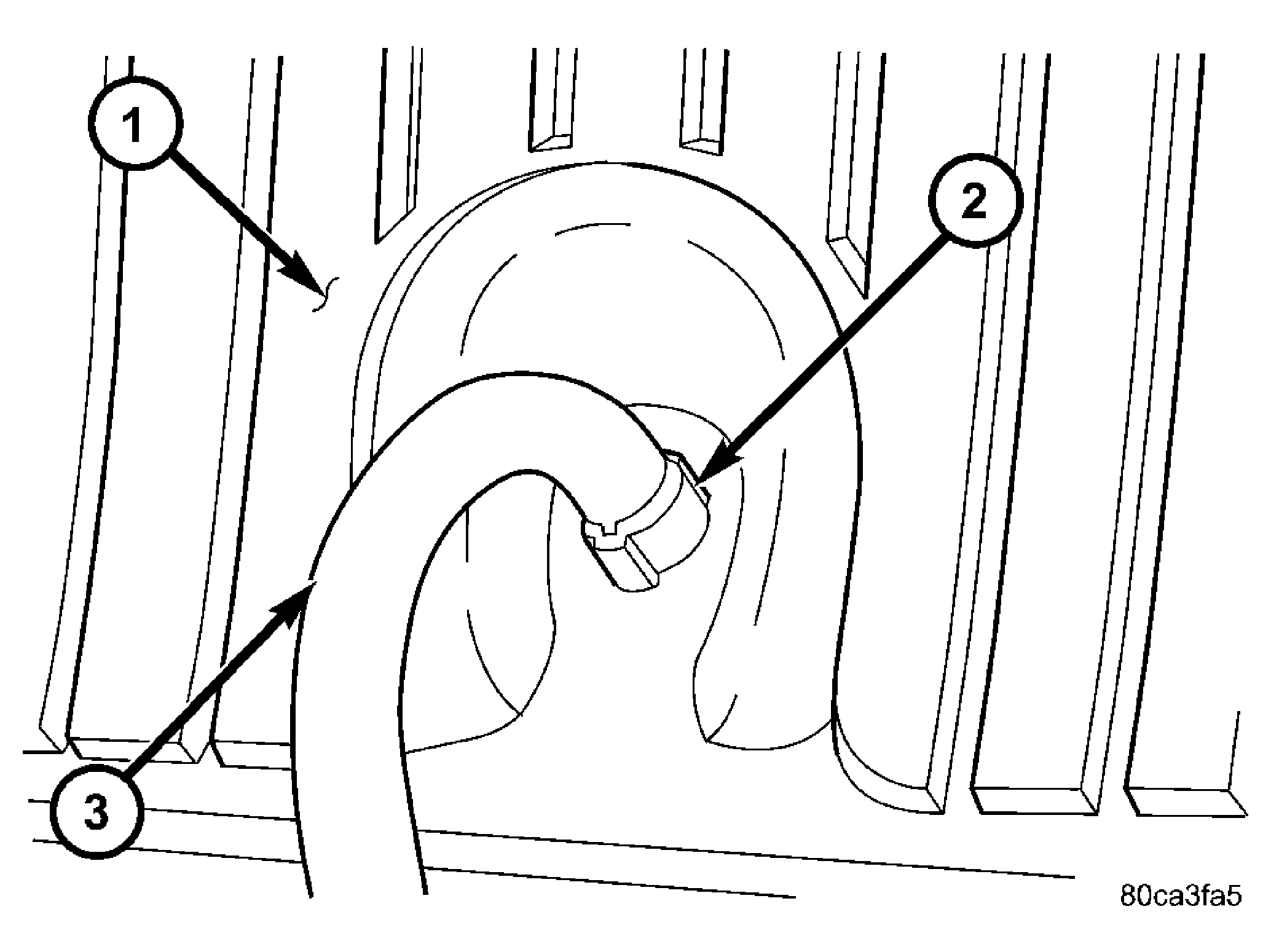

  3. From the underside of the cowl grille cover, reconnect the washer hose to the barbed nipple of the front washer nozzle. See Figure.
  4. Reinstall the washer hose for the front washer nozzle into its routing clips on the underside of the cowl plenum cover/grille panel.
  5. Reinstall the cowl plenum cover/grille panel over the cowl plenum. (Refer to BODY/EXTERIOR/COWL GRILLE - INSTALLATION) .
  6. Reinstall both front wiper arms onto the wiper pivots. (Refer to ELECTRICAL/FRONT WIPERS/WASHERS/FRONT WIPER ARM - INSTALLATION) .
  7. Close and latch the hood.
