Washer Fluid Level Switch: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new rubber grommet seal into the washer fluid level switch mounting hole in the washer reservoir. Always use a new rubber grommet seal on the reservoir.
- Insert the float of the washer fluid level switch through the rubber grommet seal and into the washer reservoir. The connector receptacle of the washer fluid level switch should be pointed downward.
- Using hand pressure, press firmly and evenly on the washer fluid level switch mounting flange until the barbed nipple is fully seated in the rubber grommet seal in the washer reservoir mounting hole.

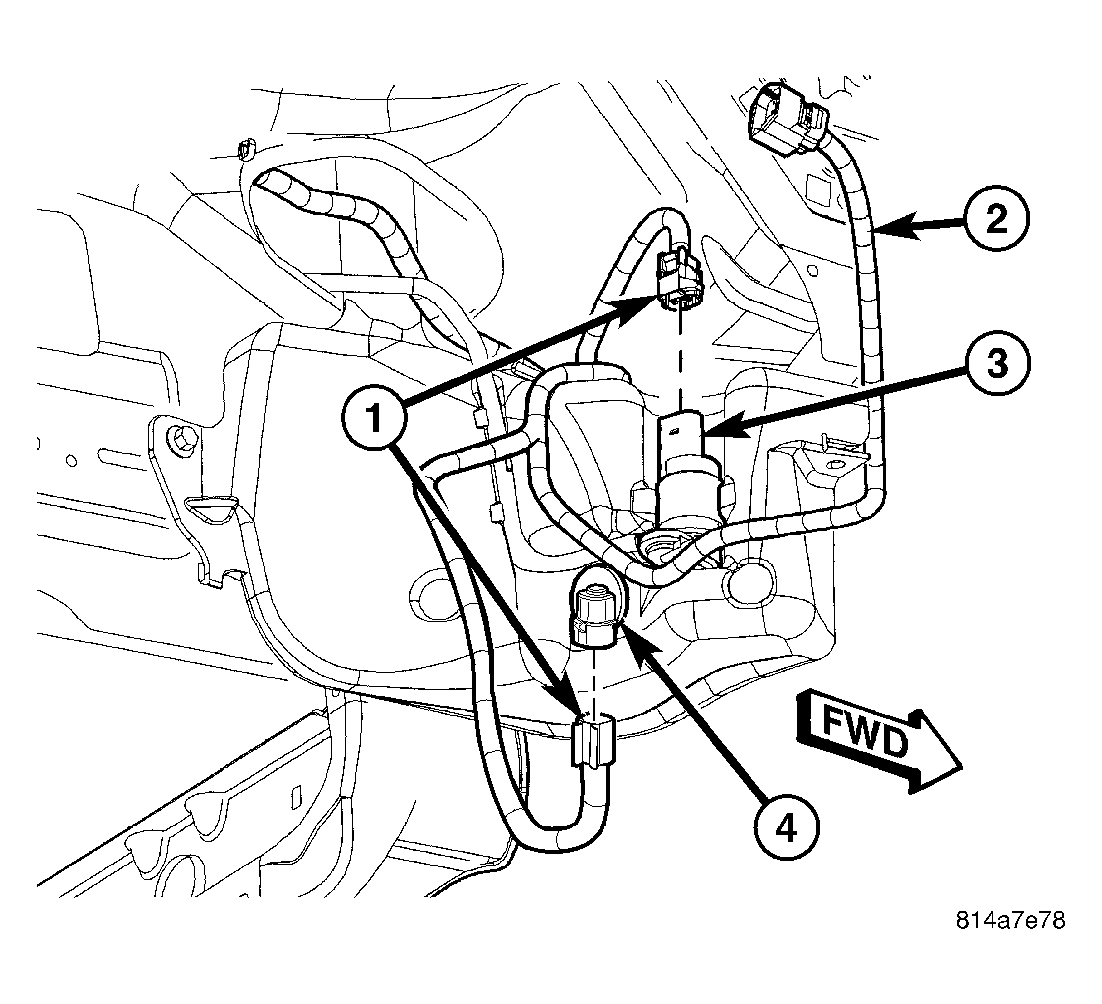

- Reconnect the headlamp and dash wire harness connector for the washer fluid level switch to the switch connector receptacle. See Figure.
- Reposition the forward end of the front wheelhouse splash shield to the inner fender panel and the front fascia.
- Reinstall the plastic push-in fasteners that secure the front wheelhouse splash shield to the inner fender panel and the front fascia. (Refer to BODY/EXTERIOR/FRONT WHEELHOUSE SPLASH SHIELD - INSTALLATION) .
- Lower the vehicle.
- Reconnect the battery negative cable.
- Refill the washer reservoir with the washer fluid siphoned from the reservoir during the removal procedure.
