Check Valve: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

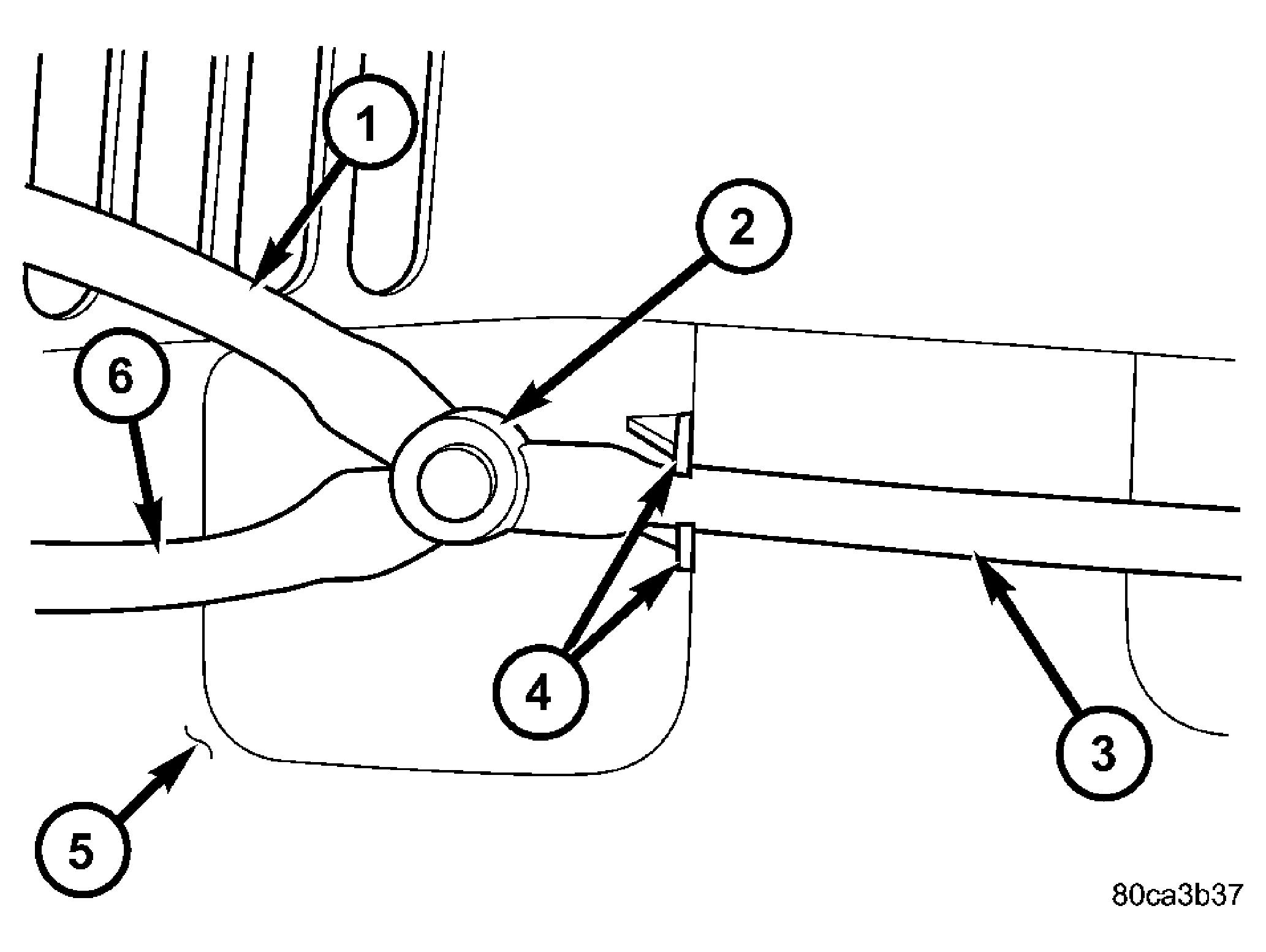

  1. Position the front check valve to the underside of the cowl plenum cover/grille panel. See Figure. Be certain that the flow direction arrow molded into the front check valve body is oriented towards the front washer nozzles.
  2. From the underside of the cowl plenum cover/grille panel, reconnect the cowl plenum and washer nozzle hoses to the three barbed nipples of the front check valve.
  3. Reinstall the cowl plenum cover/grille panel over the cowl plenum. (Refer to BODY/EXTERIOR/COWL GRILLE - INSTALLATION) .
  4. Reinstall both front wiper arms onto the wiper pivots. (Refer to ELECTRICAL/FRONT WIPERS/WASHERS/FRONT WIPER ARM - INSTALLATION) .
  5. Close and latch the hood.
