Oil Pump: Assembly
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Clean and inspect all components. Make sure that all passages are thoroughly cleaned and are free from dirt or debris. Make sure that all valves move freely in their proper bore. Make sure that all gear pockets and bushings are free from excessive wear and scoring. Replace the oil pump if any excessive wear or scoring is found.

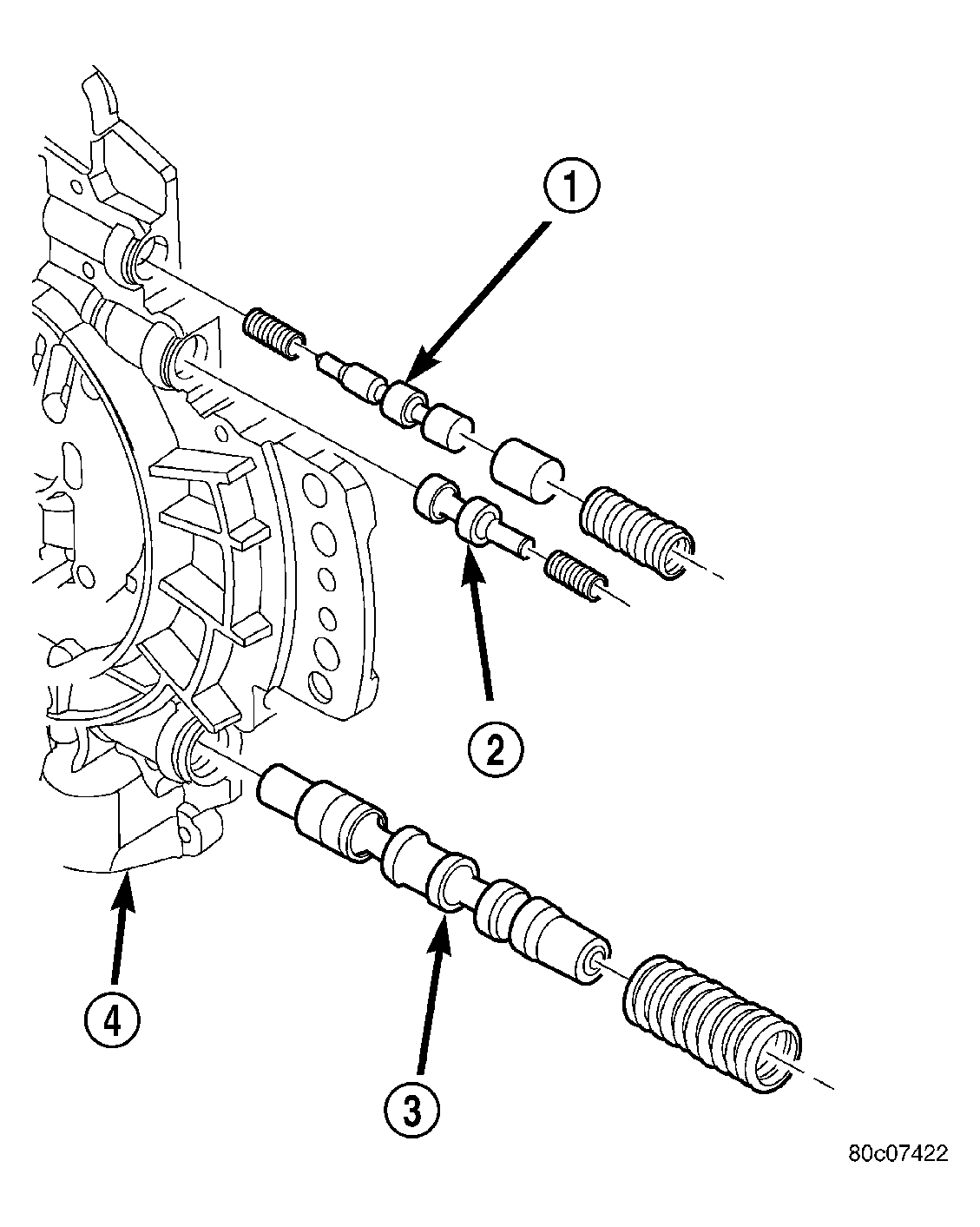

| 1 - T/C REGULATOR VALVE |
| 2 - T/C LIMIT VALVE |
| 3 - REGULATOR VALVE |
| 4 - OIL PUMP VALVE BODY |
| 1 - RETAINER |
| 2 - T/C SWITCH VALVE |
| 3 - OIL PUMP VALVE BODY |
- Lubricate the oil pump valves with Mopar® ATF +4 and install the valve, spring and retainer into the appropriate oil pump valve body (4) bore. See Fig 1. See Fig 2

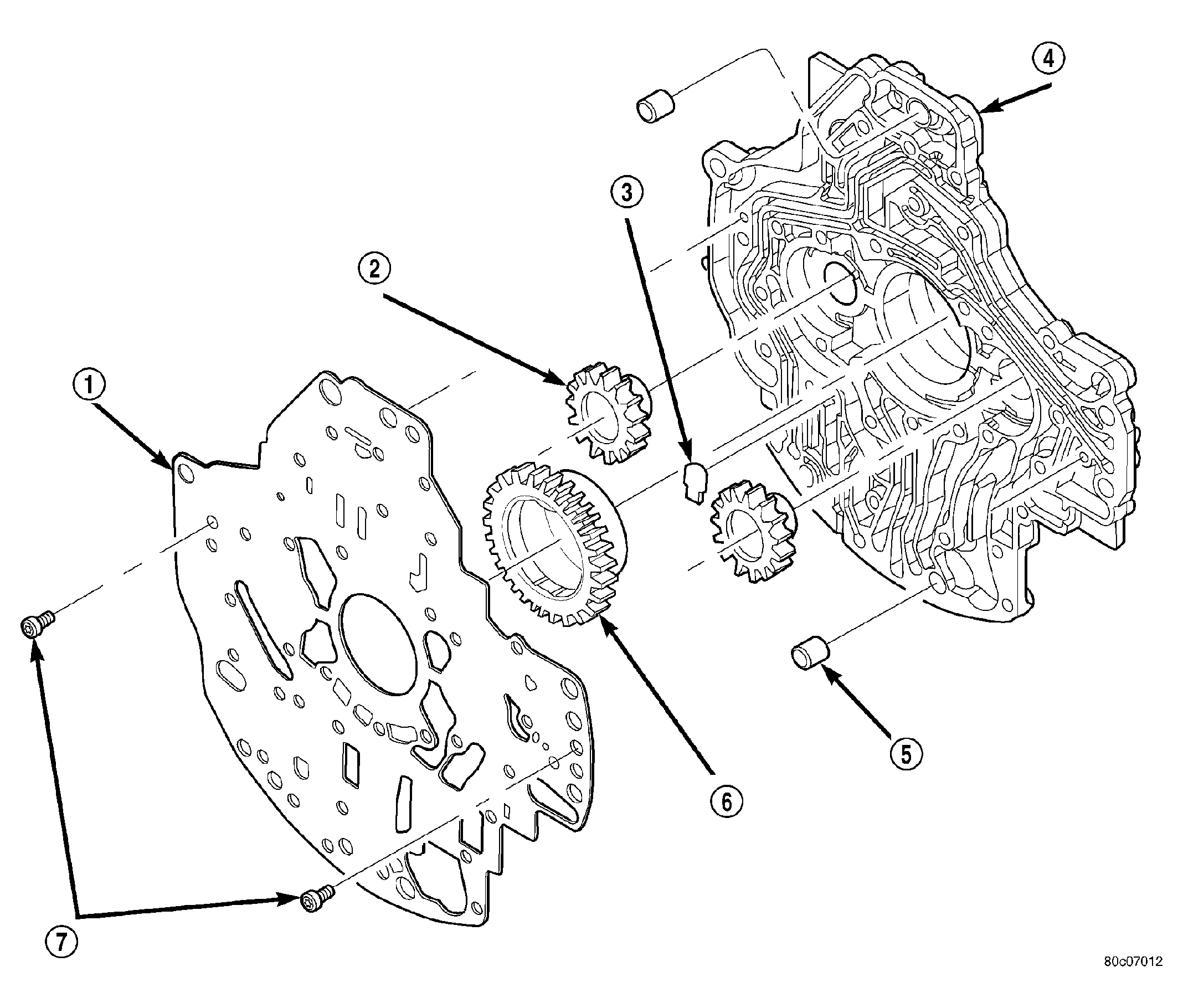

1 - SEPARATOR PLATE 5 - DOWEL (2) 2 - DRIVEN GEAR (2) 6 - DRIVE GEAR 3 - CHECK VALVE 7 - SCREW 4 - PUMP HOUSING - Coat the gears (2, 6) with Mopar® ATF +4 and install into their original locations.
- Place the separator plate (1) onto the oil pump housing (4). See Fig 3
- Install the screws (7) to hold the separator plate (1) onto the oil pump housing (4). Tighten the screws to 4.5 N.m (40 in.lbs.). See Fig 3.

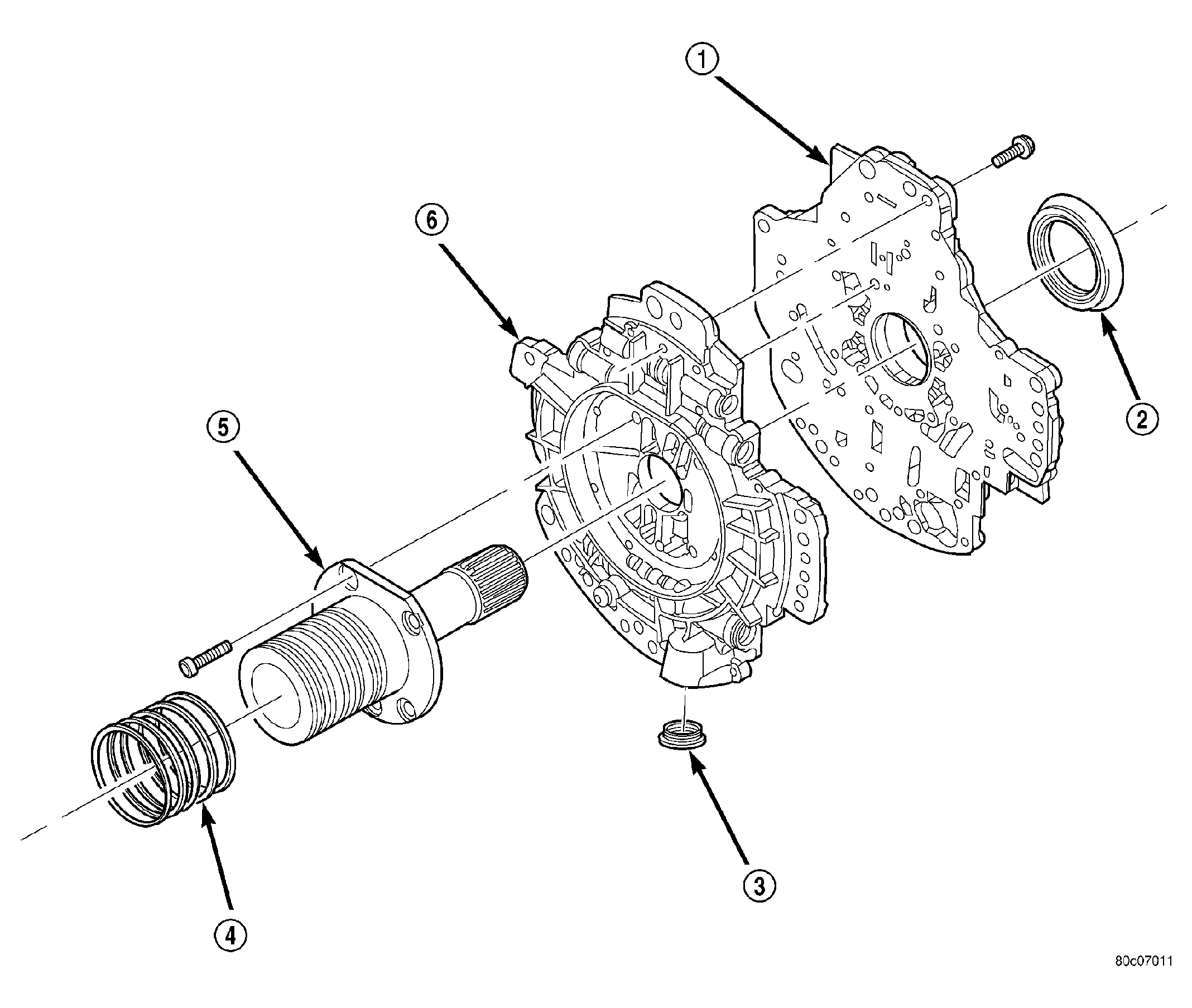

1 - PUMP HOUSING 4 - SEAL RING (5) 2 - SEAL 5 - REACTION SHAFT SUPPORT 3 - OIL FILTER SEAL 6 - PUMP VALVE BODY - Position the oil pump valve body (6) onto the locating dowels. See Fig 4
- Seat the two oil pump halves together and install all bolts finger tight.
- Torque all bolts down slowly starting in the center and working outward. The correct torque is 4.5 N.m (40 in.lbs.).
- Verify that the oil pump gears rotate freely and smoothly.
- Position the reaction shaft support (5) onto the oil pump valve body (6). See Fig 4
- Install and torque the bolts to hold the reaction shaft support (5) to the oil pump valve body (6). The correct torque is 12 N.m (105 in.lbs.). See Fig 4.
