Oil Pump Front Seal: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

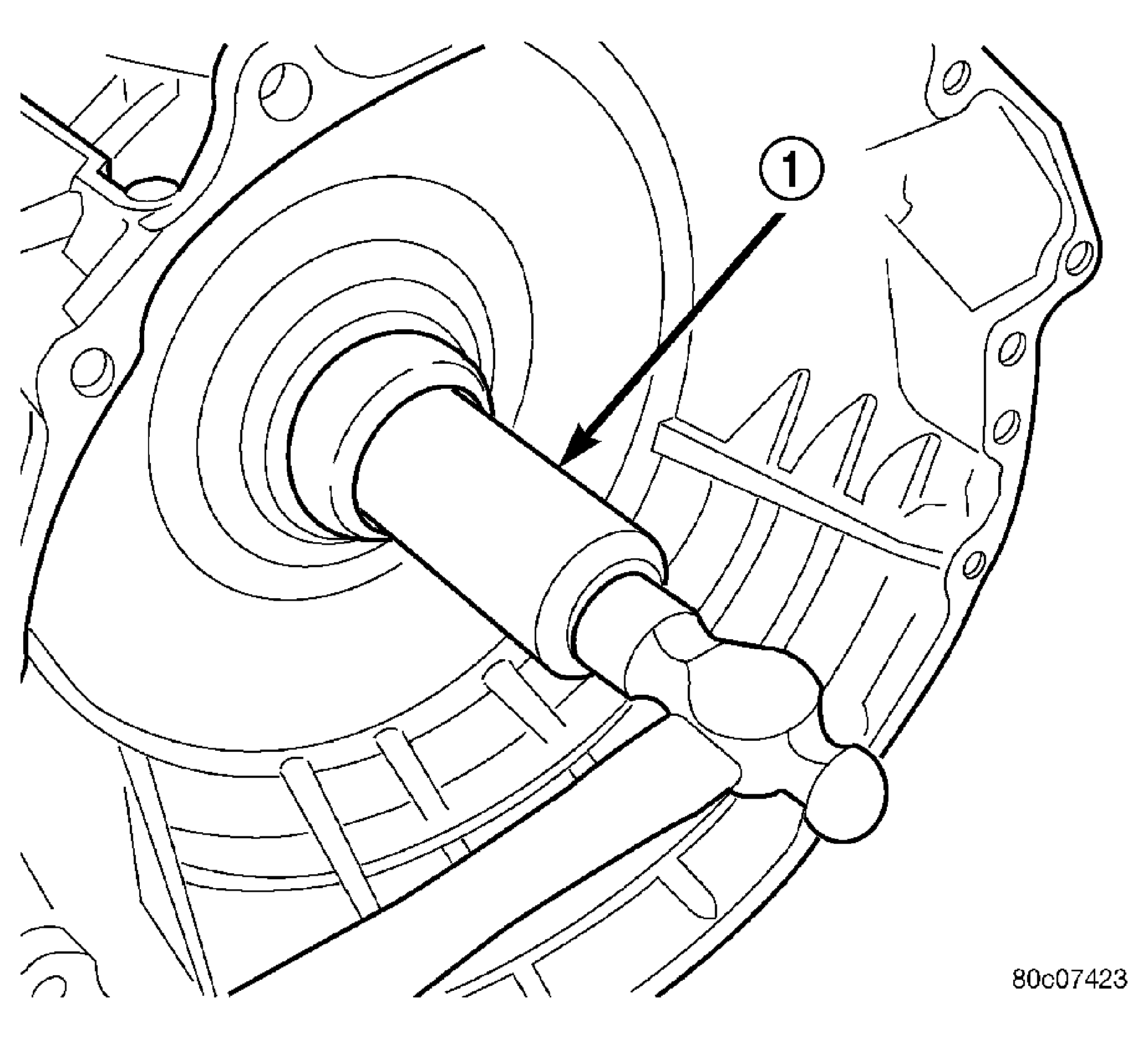

Fig 1: Install Oil Pump Front Seal
GC0005296Courtesy of DAIMLERCHRYSLER CORP.
1 - TOOL C-3860-A
  1. Clean seal bore of the oil pump of any residue or particles from the original seal.
  2. Install new oil seal in the oil pump housing using Seal Installer C-3860-A (1). See Fig 1.
