Adapter Housing Seal: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

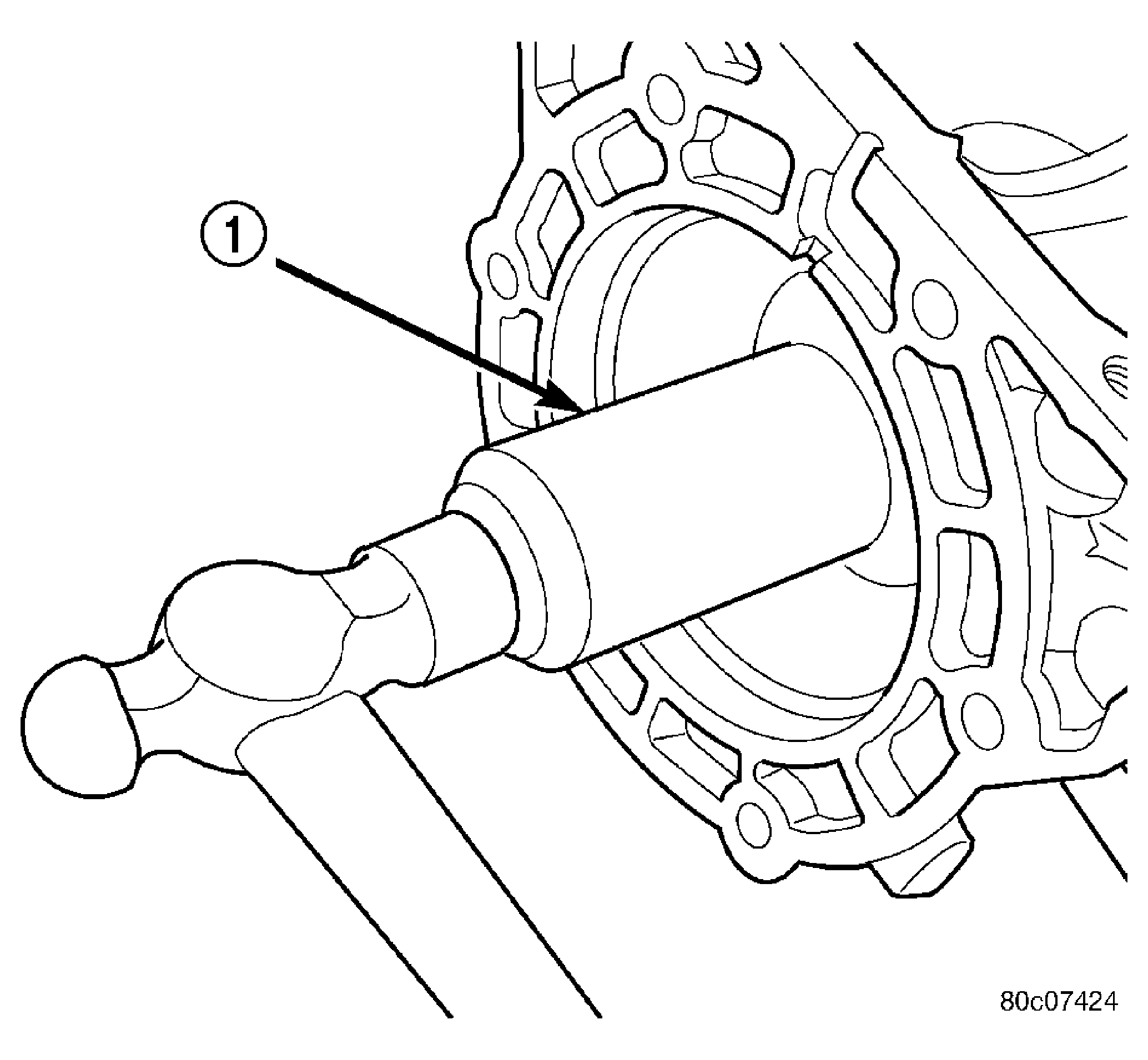

| 1 - TOOL C-3860-A |
- Clean the adapter seal bore in the adapter housing of any residue or particles remaining from the original seal.
- Install new oil seal in the adapter housing using Seal Installer C-3860-A (1). See Fig 1. A properly installed seal is flush to the face of the seal bore.
- Install the transfer case onto the transmission.
