Low Range Annulus Gear

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Inspect annulus gear condition carefully. The gear is only serviced as part of the front case. If the gear is damaged, it will be necessary to replace the gear and front case as an assembly. Do not attempt to remove the gear. See Fig 1.

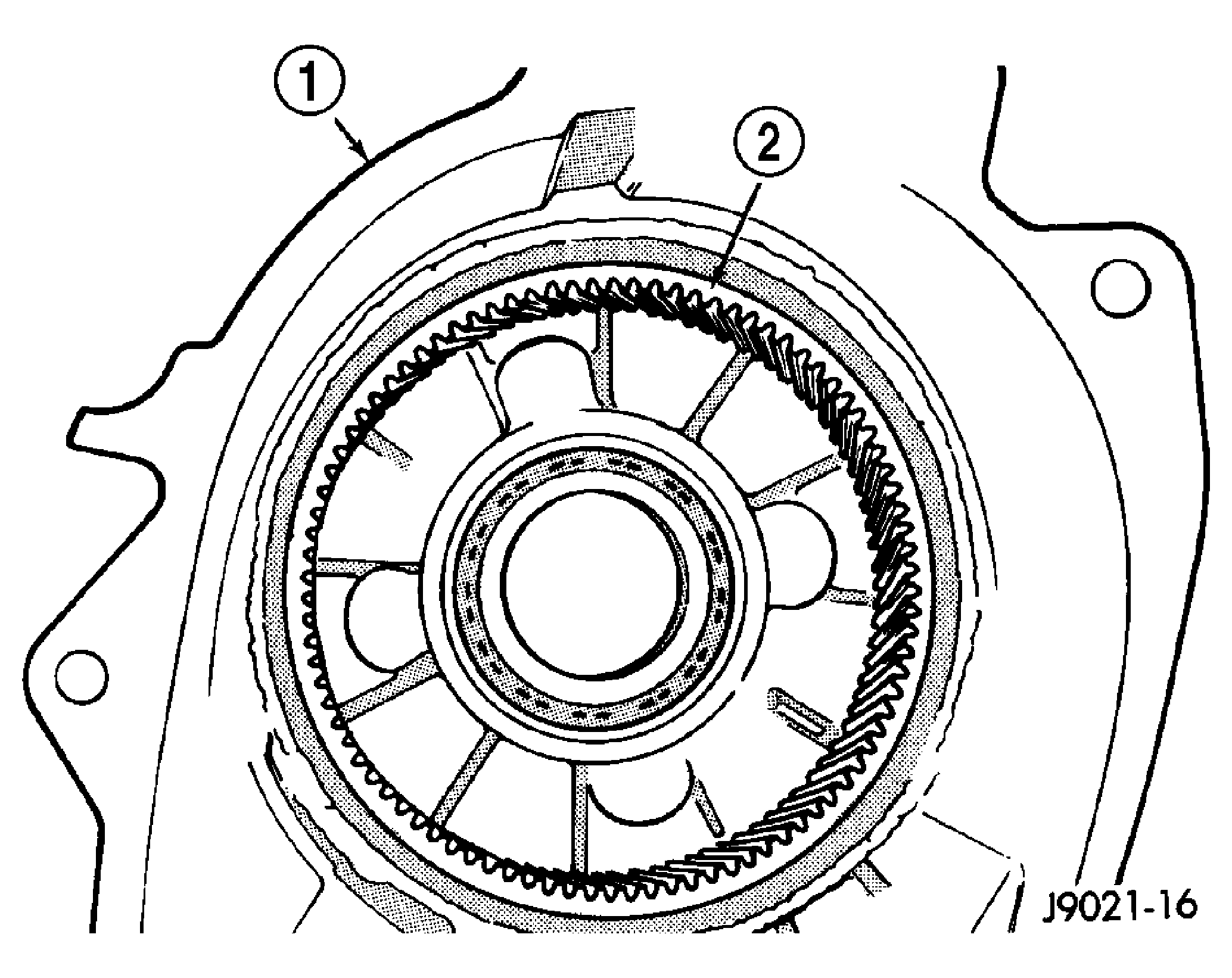

Fig 1: Low Range Annulus Gear

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT CASE

2 - LOW RANGE ANNULUS GEAR
