Front Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

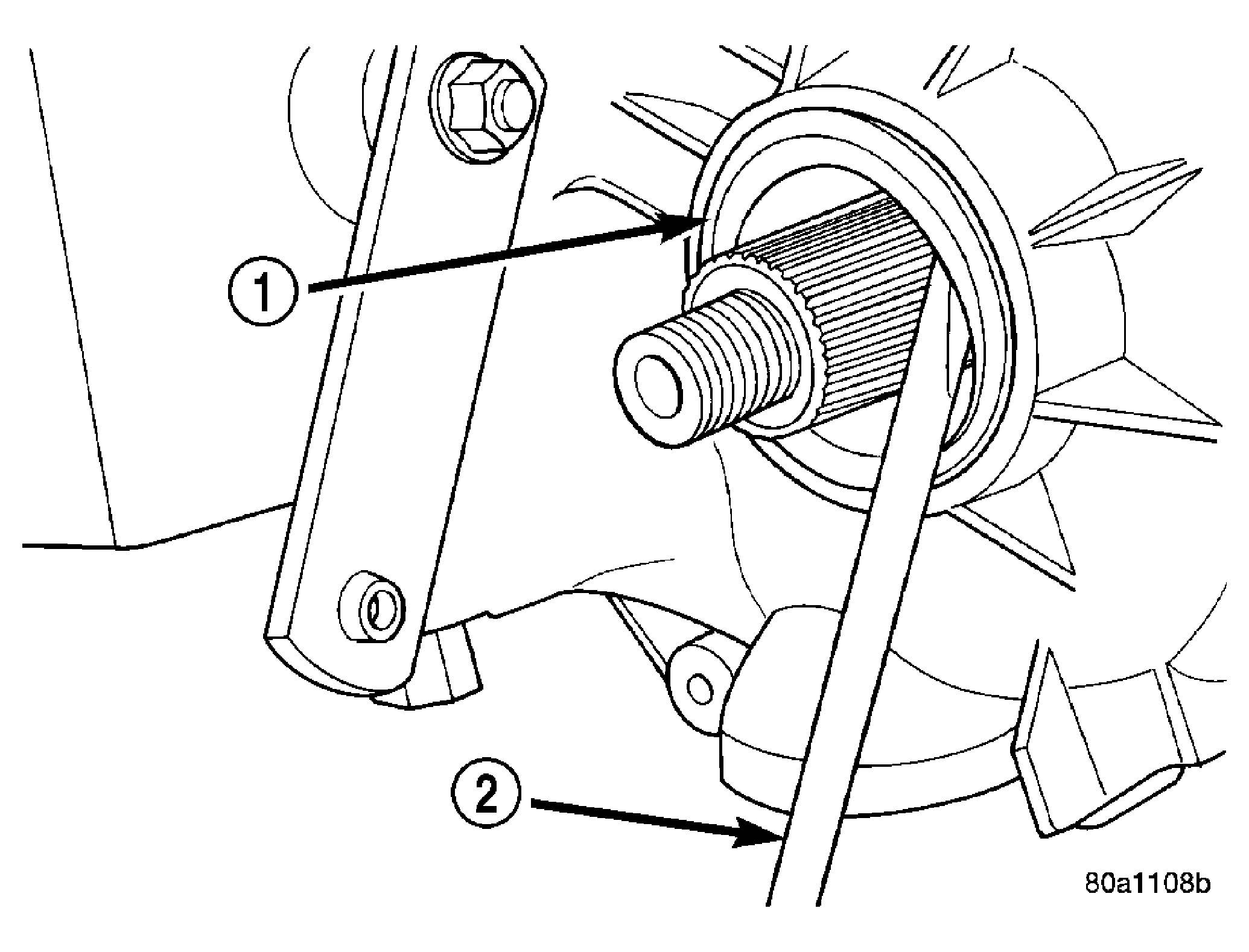

Fig 1: Remove/Install Front Output Shaft Seal - Typical
GC0025426Courtesy of DAIMLERCHRYSLER CORP.
1 - OUTPUT SHAFT SEAL
2 - PRYBAR
  1. Raise vehicle.
  2. Remove front propeller shaft. (Refer to DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/PROPELLER SHAFT - REMOVAL)
  3. Remove front output shaft companion flange.
  4. Remove seal (1) from front case with pry tool (2). See Fig 1.
