Extension Housing Seal: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

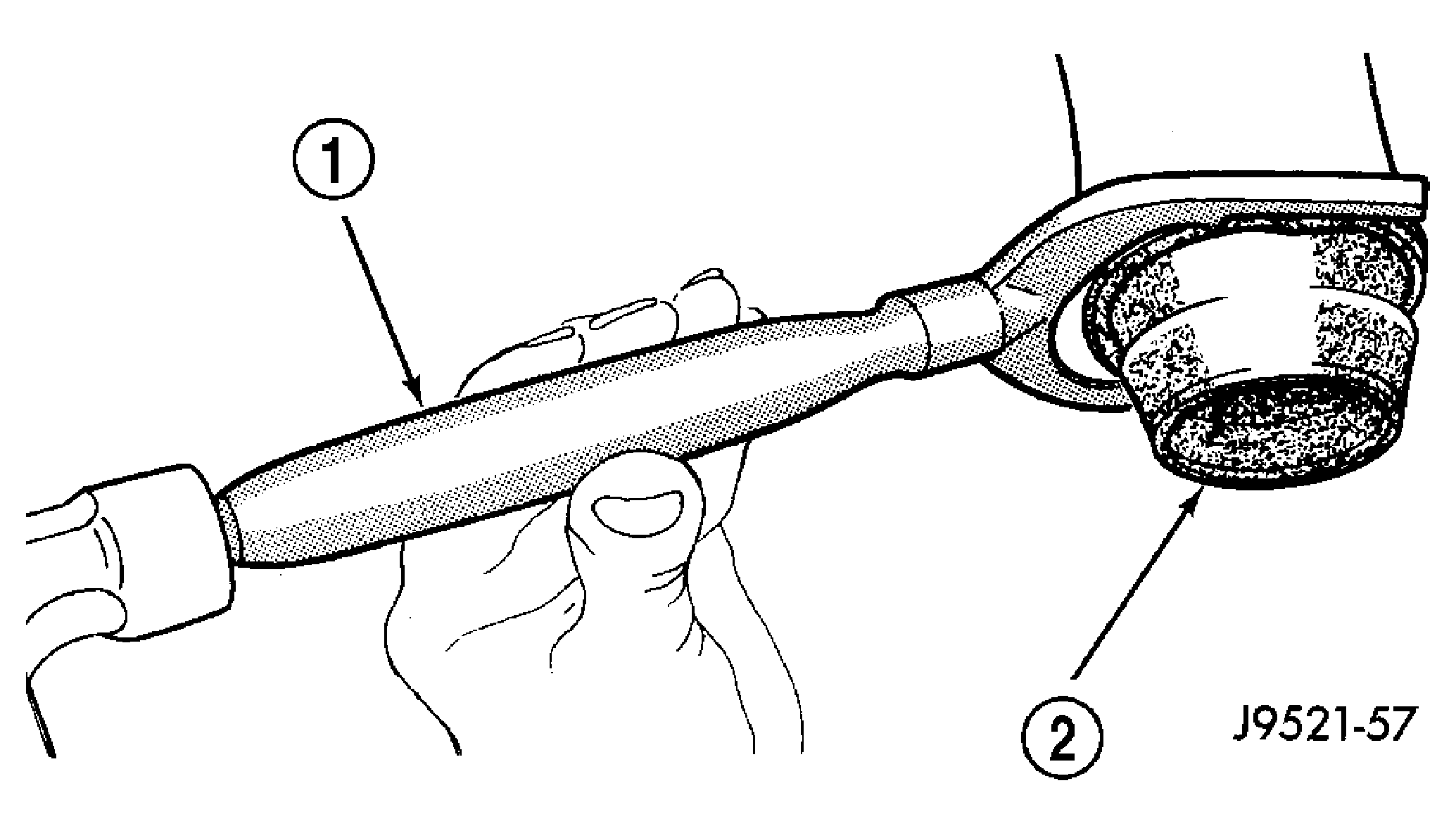

| 1 - SPECIAL TOOL C-3985-B |
| 2 - SEAL |
- Raise vehicle.
- Mark propeller shaft and axle yoke, or companion flange, for alignment reference.
- Disconnect and remove propeller shaft.
- Remove old seal with Seal Remover C-3985-B (1) from overdrive extension housing. See Fig 1.
