Rear Fascia - Rain Diverter: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Open the swing gate.
Remove the three rivets from the diverter and remove the diverter. See Fig 1.

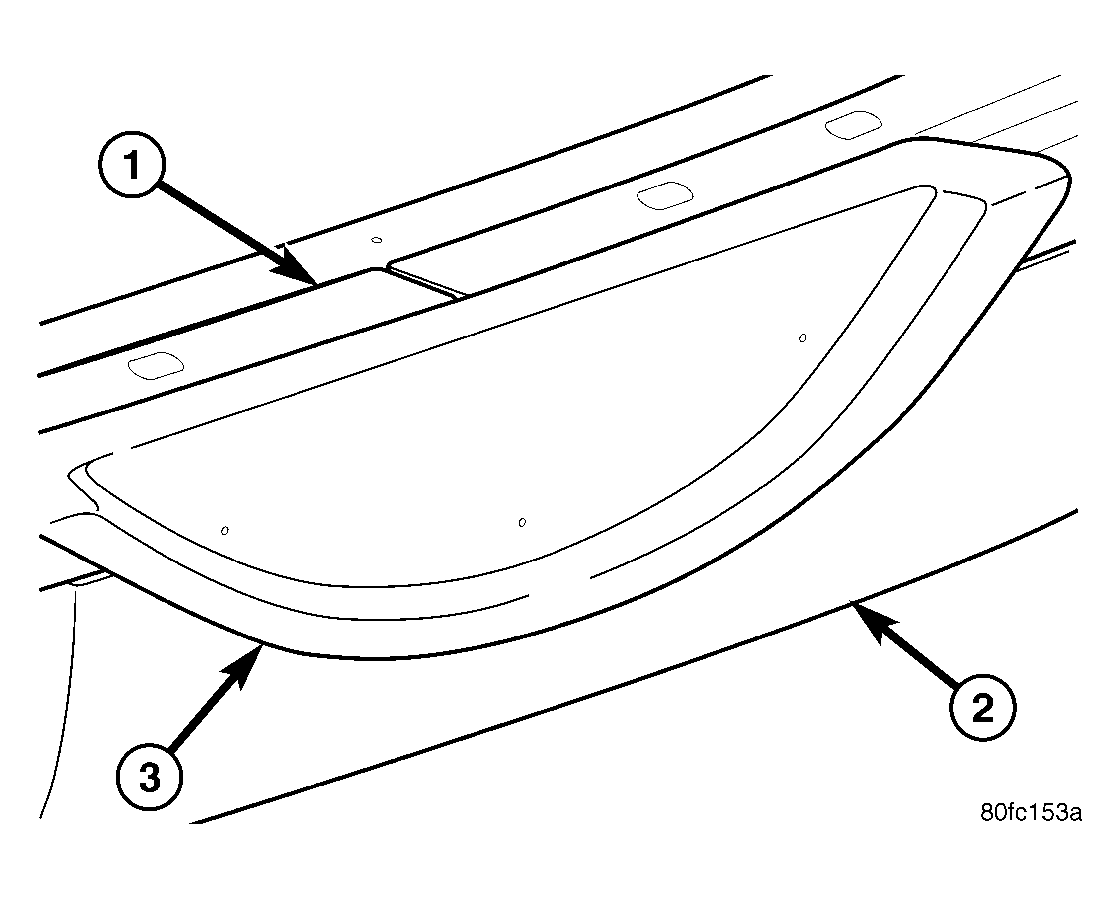

Fig 1: Rain Diverter

Courtesy of DAIMLERCHRYSLER CORP.

1 - STEP PAD

2 - REAR FASCIA

3 - RAIN DIVERTER
