Installation - CAC Outlet Hose

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install charge air cooler (CAC) outlet hose on CAC and intake manifold inlet.

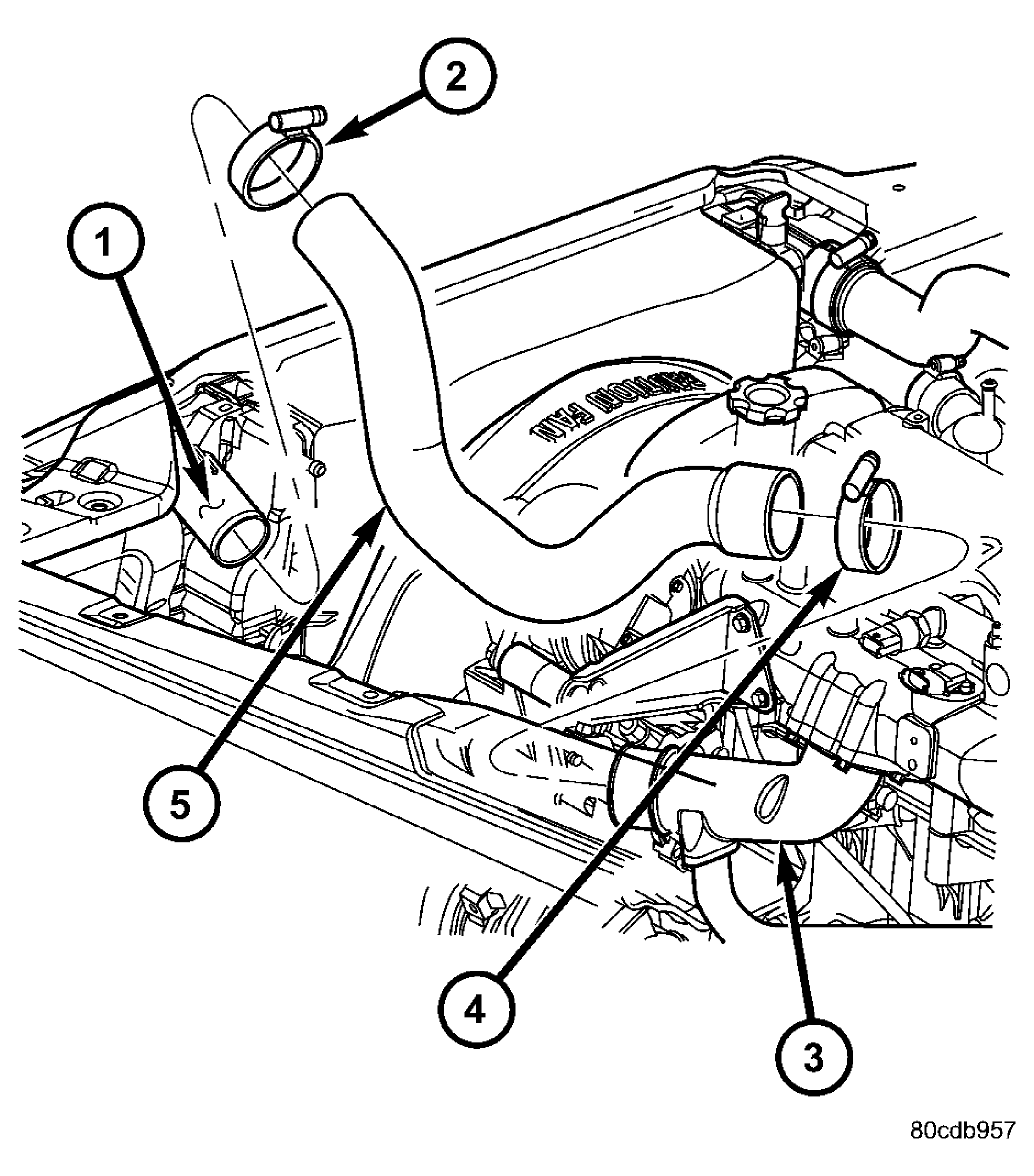

  2. Tighten both hose clamp on CAC outlet hose. See Figure.
  3. Close hood.
