Front Door Outer Belt Molding: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower window completely.
  2. Remove trim panel as necessary. (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
  3. Insert special tool #9093 between belt molding and glass at rear and then slide tool forward approximately 14 cm (5.5 in.). See Fig 1.

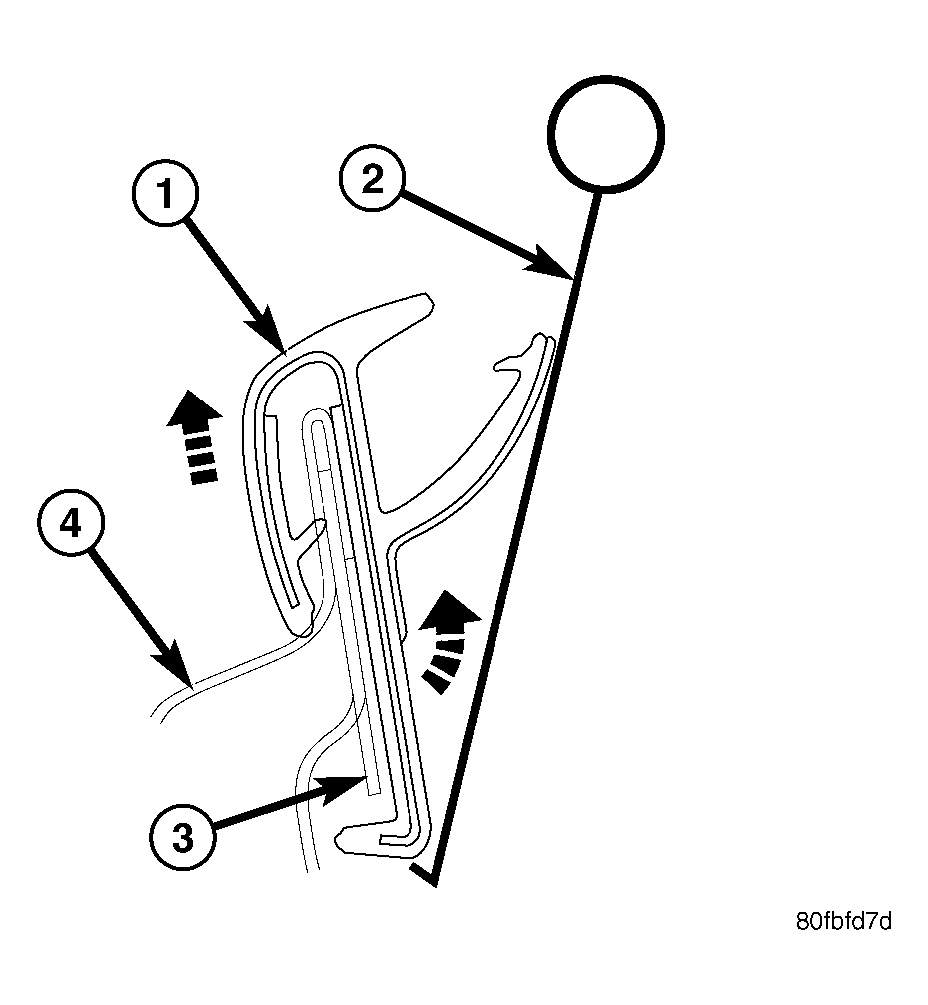

    Fig 1: Outer Belt Molding
    GC0025874Courtesy of DAIMLERCHRYSLER CORP.
    1 - OUTER BELT MOLDING
    2 - SPECIAL TOOL #9093
    3 - RETAINING TAB
    4 - DOOR OUTER PANEL
  4. Push down on outer belt molding and rotate upper part of tool outward from vehicle approximately 6 - 8 cm (2.5 - 3 in.) then lift up on molding to disengage from locking tab.
  5. Repeat step 3 and 4 at 28 cm (11 in.), 43 cm (17 in.), and 57 cm (22.5 in.) from rear of door.
  6. Remove belt molding.
