Wire Harness: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headliner. (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
- Disconnect wire harness from vehicle harness.

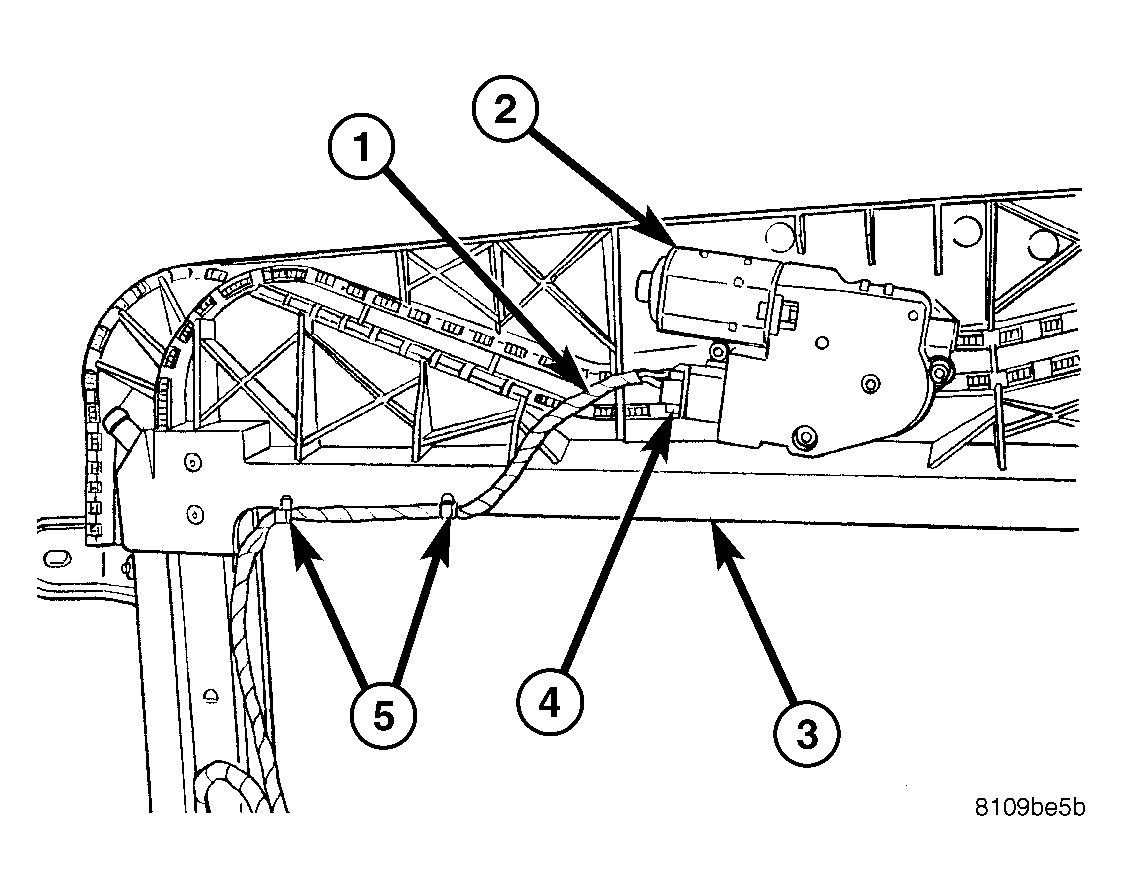

- Disconnect drive motor electrical connector and cut tie straps. See Fig 1.
- Remove harness.
| 1 - WIRE HARNESS |
| 2 - DRIVE MOTOR |
| 3 - SUNROOF MODULE ASSEMBLY |
| 4 - ELECTRICAL CONNECTOR |
| 5 - TIE STRAPS |
