Rear Drain Tubes

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move glass panel to the fully closed position.
  2. Remove sunroof opening trim lace.
  3. Remove headliner. Refer to REMOVAL
  4. Disconnect the drain hose from the sunroof housing. See Fig 1.
  5. Drain any liquid from hose connection, if necessary.
  6. Disconnect the grommet, attachment clips and remove the drain tube.

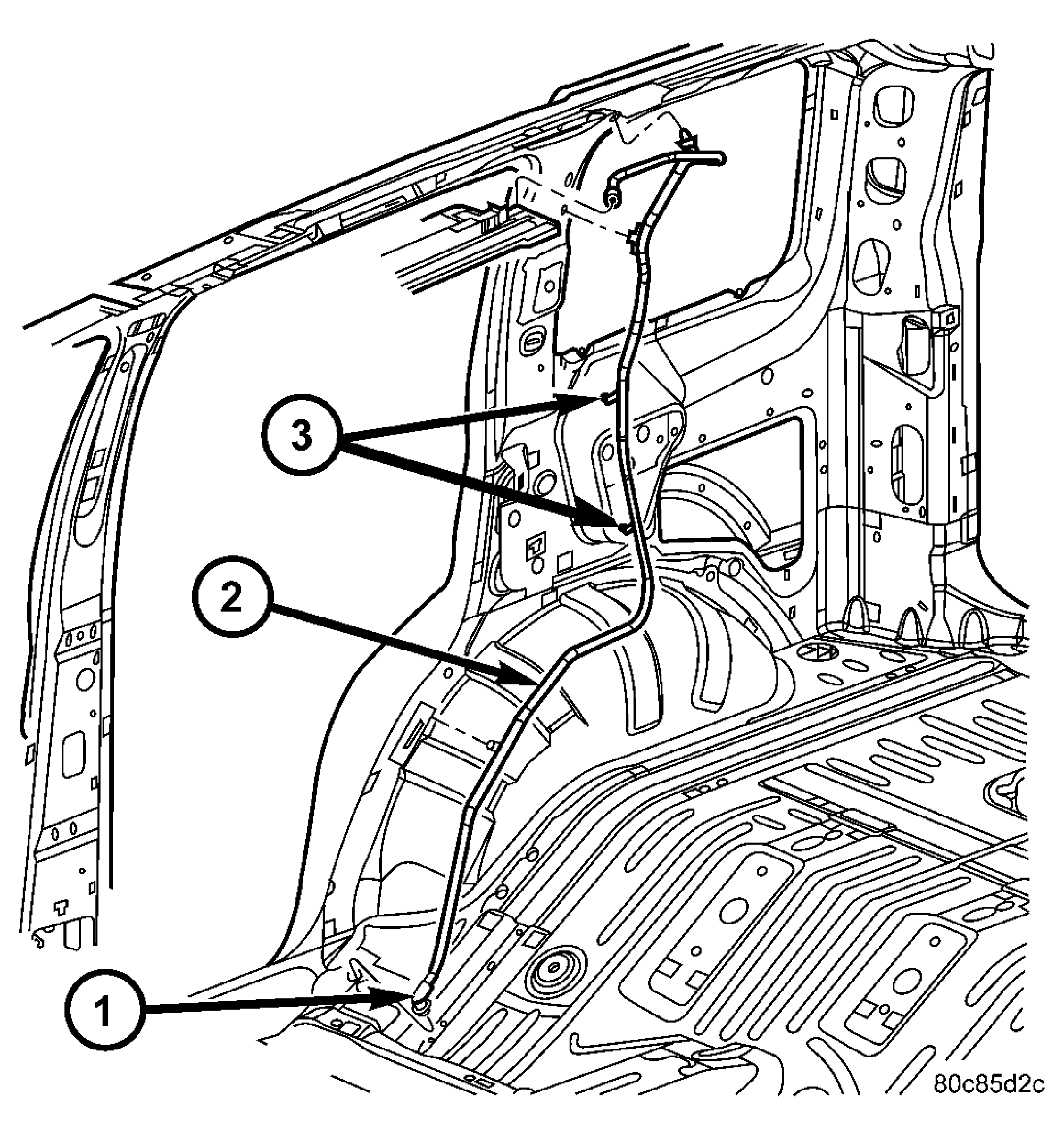

Fig 1: Rear Drain Tube
GC0025865Courtesy of DAIMLERCHRYSLER CORP.
1 - GROMMET
2 - TUBE
3 - CLIPS
