Front Drain Tubes

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move glass panel to the fully closed position.
  2. Remove sunroof opening trim lace.
  3. Remove the headliner. (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  4. Disconnect the drain hose from the sunroof housing. See Fig 1.
  5. Drain any liquid from hose connection, if necessary.
  6. Remove the instrument panel top panel. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL) .
  7. Disconnect the grommet, attachment clips and remove the drain tube.

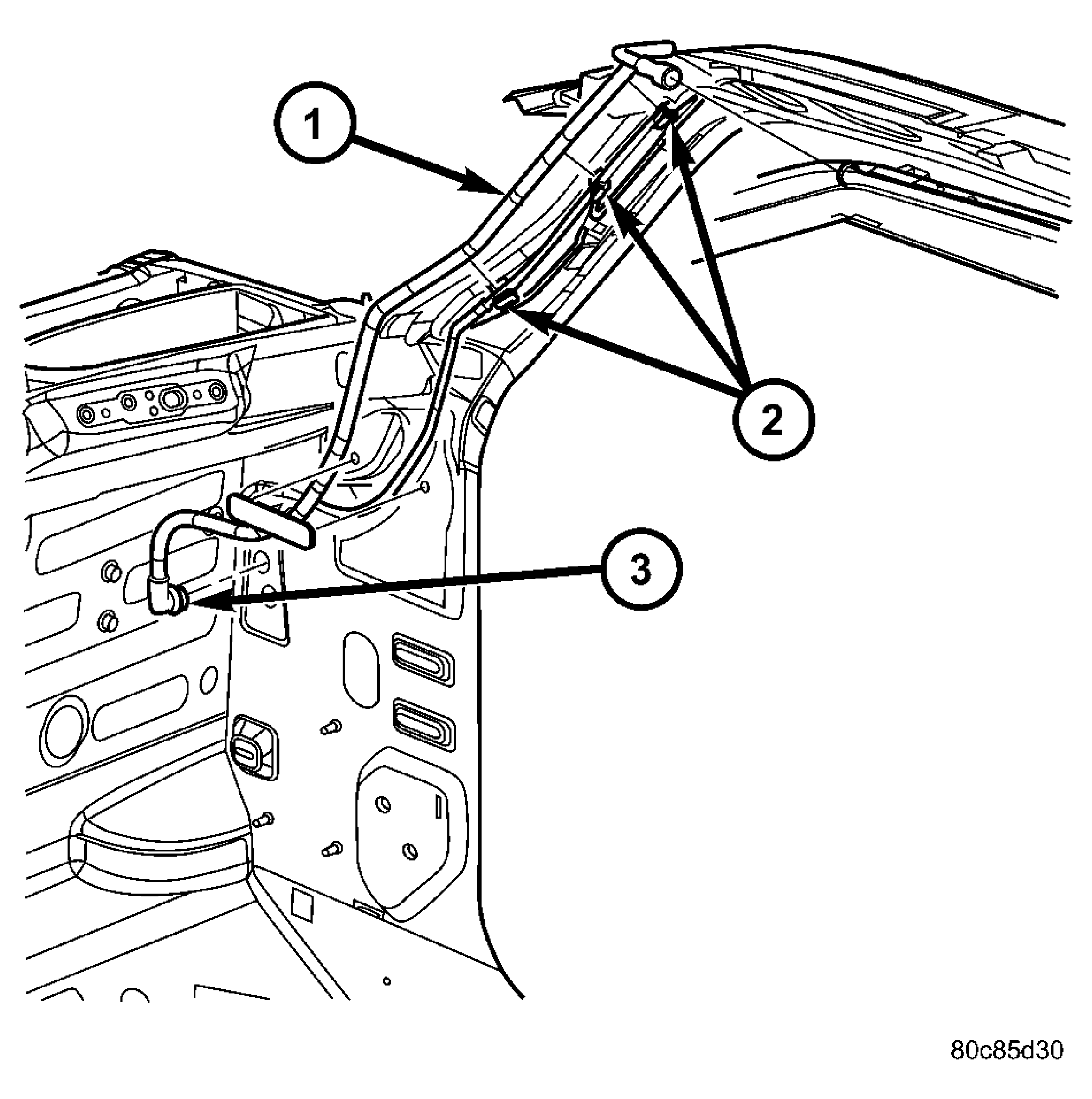

Fig 1: Front Drain Tube
GC0025866Courtesy of DAIMLERCHRYSLER CORP.
1 - TUBE
2 - CLIPS
3 - GROMMET
