60/40 Split Seat - Left

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outer seat belt anchors. (Refer to ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - REMOVAL) .

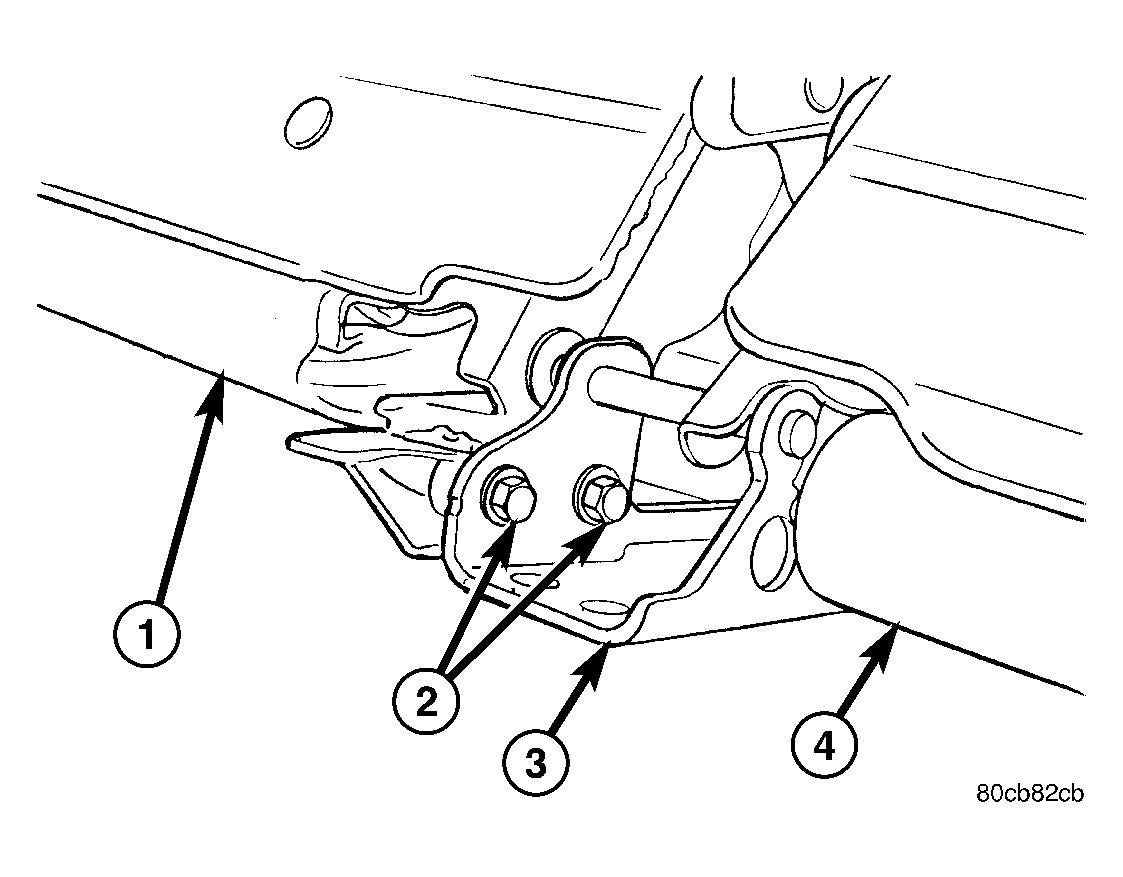

  2. Remove the outer seat anchor nut. See Figure.

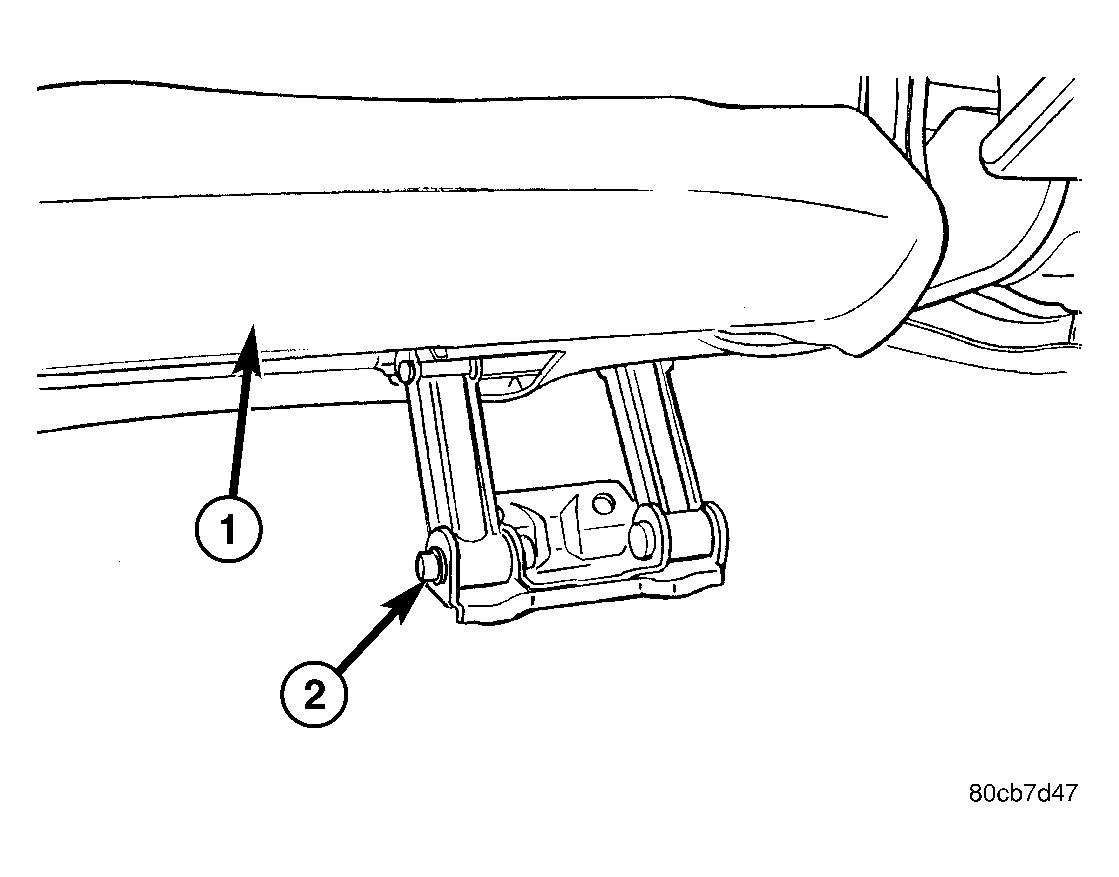

  3. Remove the front seat cushion hinge bolt. See Figure.

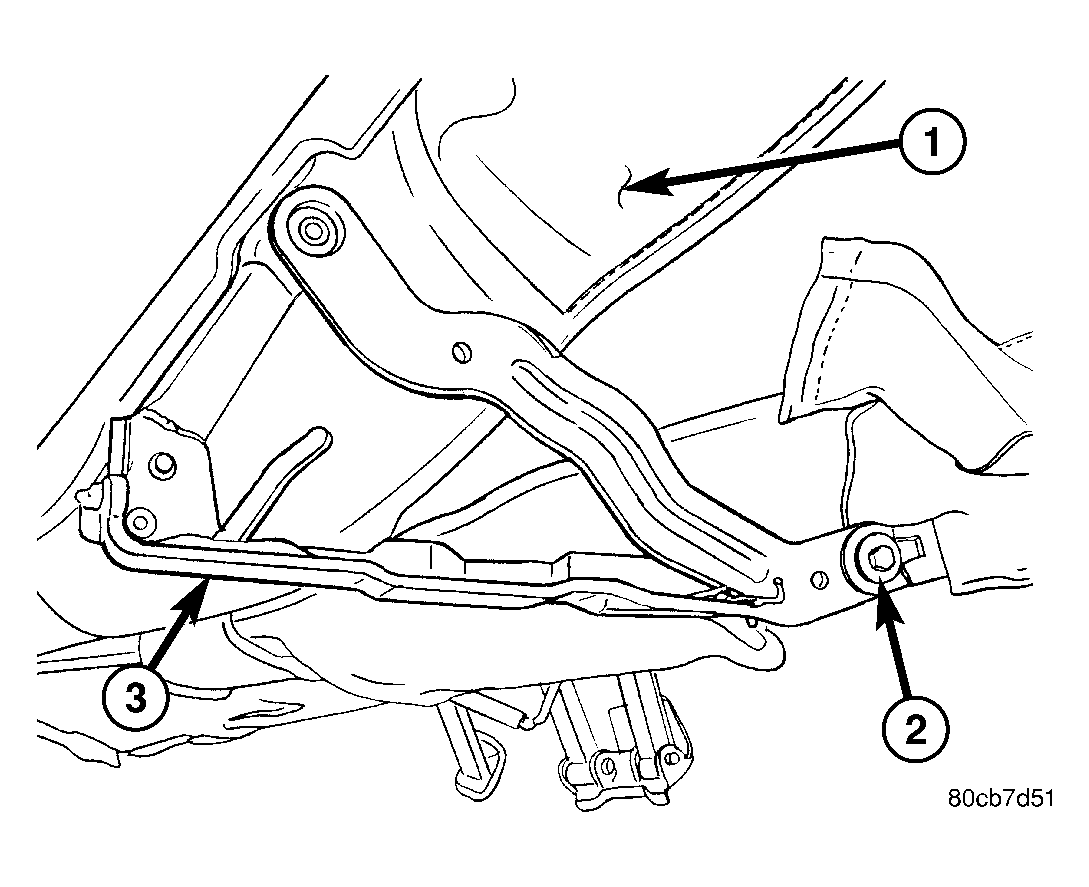

  4. Remove the center seat back hinge bolts and separate the rear seat assembly. See Figure.
  5. Release the clips and remove the seat back hinge covers.
  6. Lift the seat cushion cover and remove the hinge bolts. See Figure.
  7. Remove the seat back.
