Rear Seat Back Latch Striker: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the quarter trim panel. (Refer to BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL) .
Remove the bolts and remove the striker. See Fig 1.

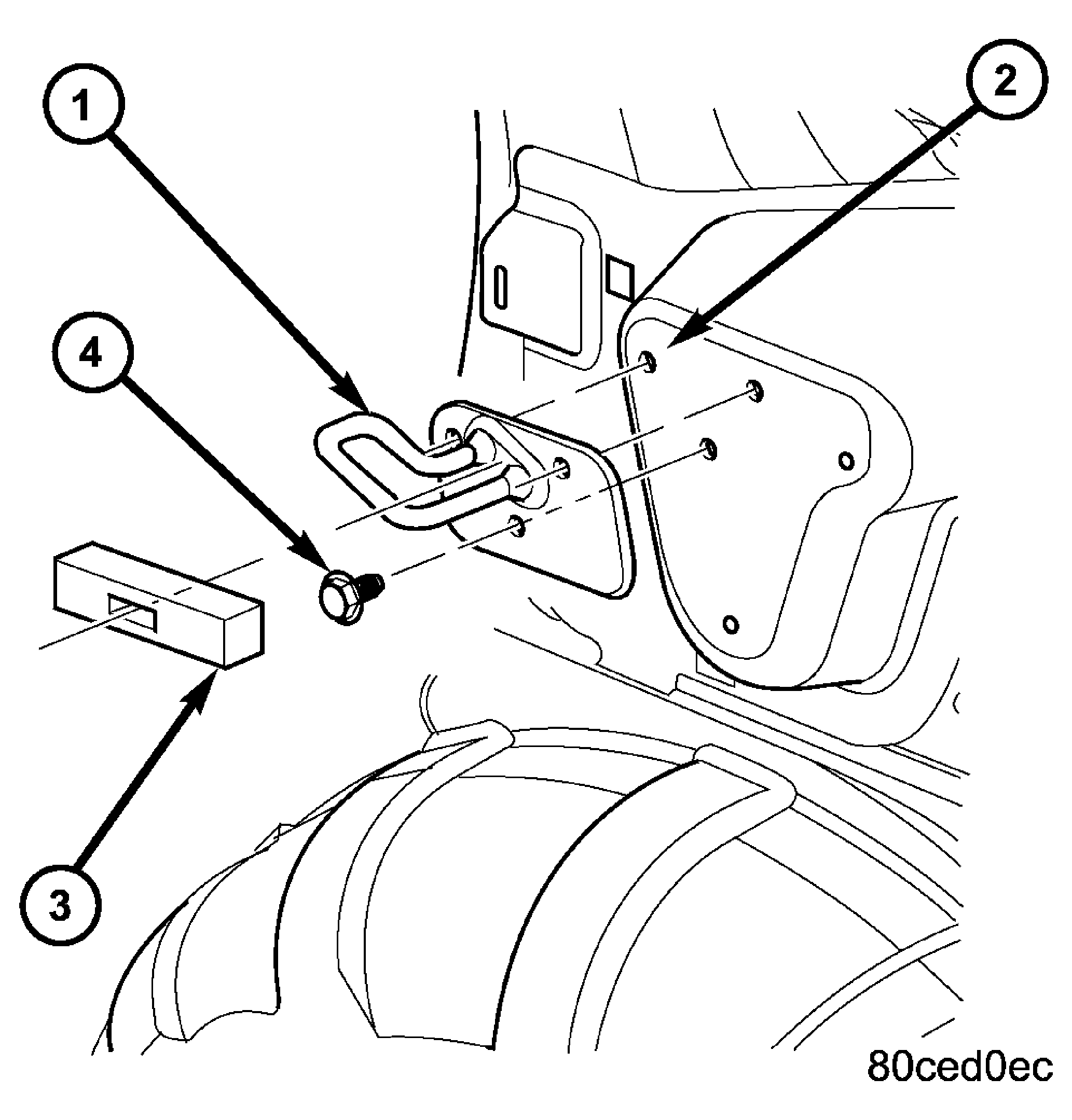

Fig 1: Rear Seat Back Latch Striker

Courtesy of DAIMLERCHRYSLER CORP.

1 - LATCH STRIKER

2 - BODY SIDE PANEL

3 - STRIKER CLOSE-OUT

4 - BOLTS (3)
