On vehicles equipped with a grab handle:

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

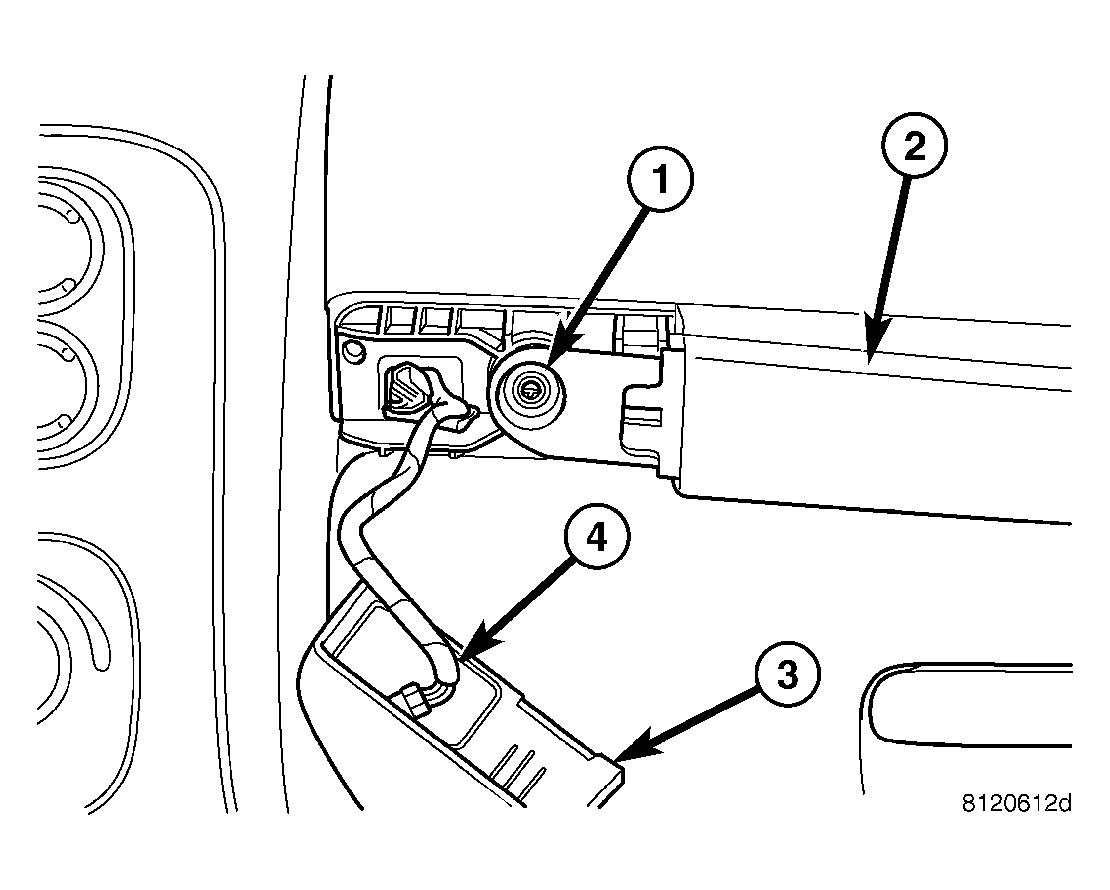

Fig 1: Grab Handle
GC0025837Courtesy of DAIMLERCHRYSLER CORP.
1 - GRAB HANDLE SCREWS (2)
2 - GRAB HANDLE
3 - END CAPS (2)
4 - ELECTRICAL CONNECTOR
  1. Using a trim stick C-4755 or equivalent, remove the grab handle end caps. See Fig 1.
  2. Disconnect the electrical connector, if equipped.
  3. Remove the grab handle screws.
  4. Remove the grab handle and bezel assembly.
