Rear Wheelhouse Splash Shield: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

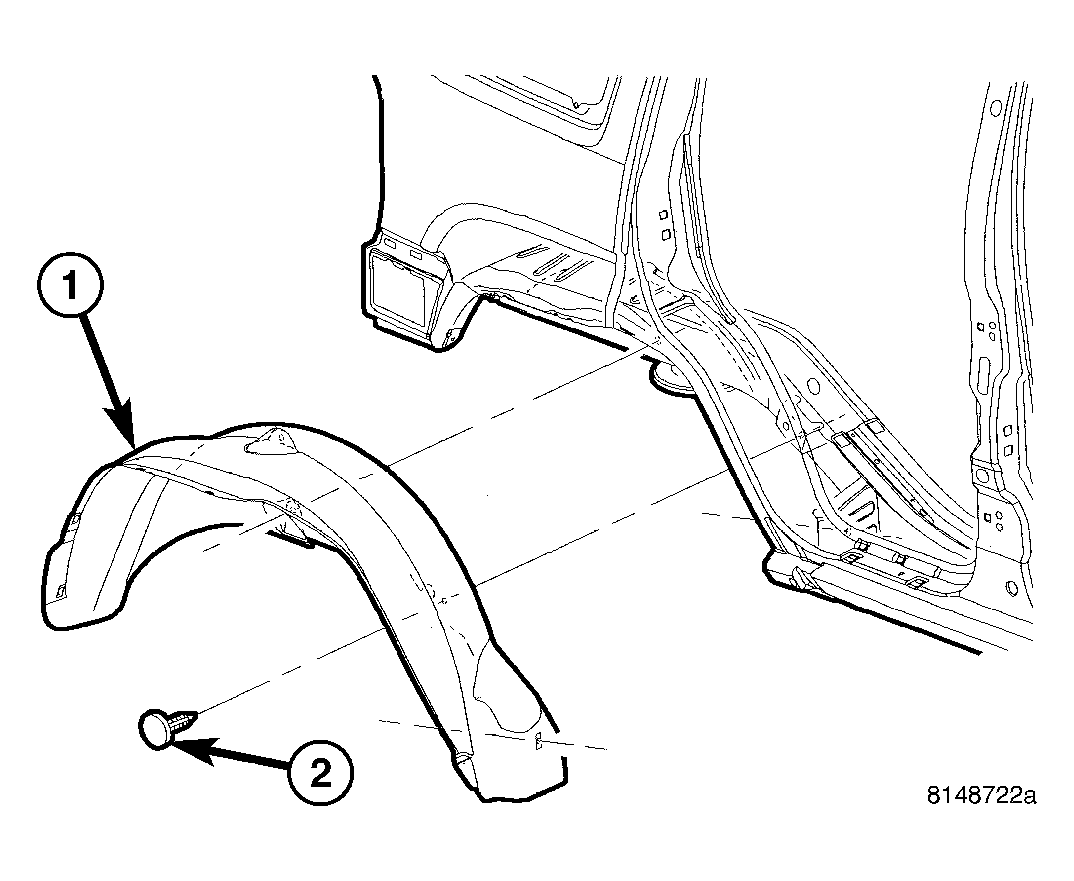

Fig 1: Rear Wheelhouse Splash
GC0025808Courtesy of DAIMLERCHRYSLER CORP.
1 - SPLASH SHIELD
2 - PUSH PIN FASTENERS (2)
  1. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)
  2. Remove the wheel.
  3. Remove the two rivets connecting the shield to the side sill molding.
  4. Remove the four rivets connecting the flare molding to the shield.
  5. Remove the two push pin fasteners (2) and remove the shield (1). See Fig 1.
